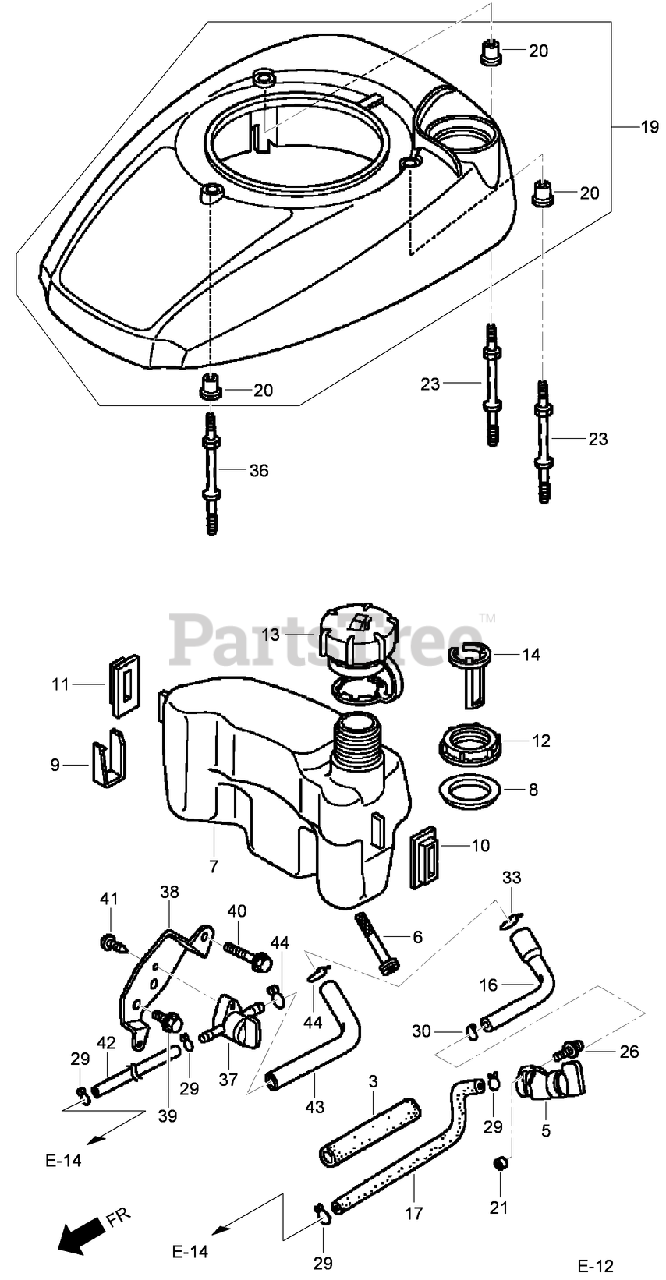

20192 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Fan Cover and Fuel Tank Assembly Honda GCV160L AS3A Parts Diagram

Super Bagger Walk-Behind Mower

Fan Cover and Fuel Tank Assembly Honda GCV160L AS3A Parts Diagram

  • Title

3

Toro 16854-ZH8-000

SUPPORTER-RUBBER (107 mm)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

5

Toro 16950-ZM0-003

PETCOCK ASM (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Toro 16952-ZA8-800

FILTER-FUEL

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

7

Toro 17511-Z0L-000

TANK-FUEL (engine serial numbers up to 6183839)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

7

Toro 17511-Z0L-010

TANK-FUEL (engine serial numbers starting at 6183840)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

8

Toro 17514-Z0L-000

SEAL-NECK, FUEL FILLER

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

9

Toro 17516-Z0L-000

CLIP-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

10

Toro 17532-Z0L-000

RUBBER A-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

11

Toro 17533-Z0L-000

RUBBER B-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

12

Toro 17534-Z0L-000

NUT-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

13

Toro 17620-Z0J-800

FUEL TANK CAP ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

14

Toro 17636-Z0L-000

GAUGE-LEVEL, FUEL

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

16

Toro 17701-Z0L-810

TUBE-TANK, FUEL (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

17

Toro 17702-ZM0-800

TUBE-FUEL (engine serial numbers starting at 6901760)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-860ZA

COVER-FAN (NH1) (BLACK) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-860ZC

COVER-FAN (T89) (CRAFTSMAN RED) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-860ZD

COVER-FAN (T93) (HUSQVARNA GRAY) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-860ZE

COVER-FAN (T98) (M T D RED) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-861ZA

COVER-FAN (NH1) (BLACK) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-861ZC

COVER-FAN (T89) (CRAFTSMAN RED) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-861ZD

COVER-FAN (T93) (HUSQVARNA GRAY) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-861ZE

COVER-FAN (T98) (M T D RED) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

20

Toro 19619-ZL8-300

COLLAR-COVER, FAN

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

21

Toro 91501-Z0L-800

COLLAR-PETCOCK, FUEL (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

23

Toro 90043-ZL8-000

BOLT-STUD (H=42.5MM)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

26

Toro 93891-05010-08

SCREW-WASHER (5X10)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

29

Toro 95002-02080

CLIP-TUBE (B8)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

30

Toro 95002-02100

CLIP-TUBE (B10)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

33

Toro 95002-70000

CLIP-TUBE (C11) (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

36

Toro 90043-ZL8-000

BOLT-STUD (H=42.5MM)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

37

Toro 16950-Z0Y-003

PETCOCK ASM (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

38

Toro 16961-Z0L-900

STAY-PETCOCK (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

39

Toro 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

40

Toro 90015-883-000

BOLT-FLANGE (6X28) (C T200) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

41

Toro 93913-25220

SCREW-TAPPING (5X12) (P O) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

42

Toro 95001-45003-50M

FUEL-HOSE, BULK (4.5X3000) (4.5X110) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

43

Toro 95001-75008-60M

FUEL-HOSE, BULK (7.5X8000) (7.3X160) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

44

Toro 95002-02120

CLIP-TUBE (B12) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
