20192 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FAN COVER AND FUEL TANK ASSEMBLY HONDA GCV160L AS3A Parts Diagram

Super Bagger Walk-Behind Mower

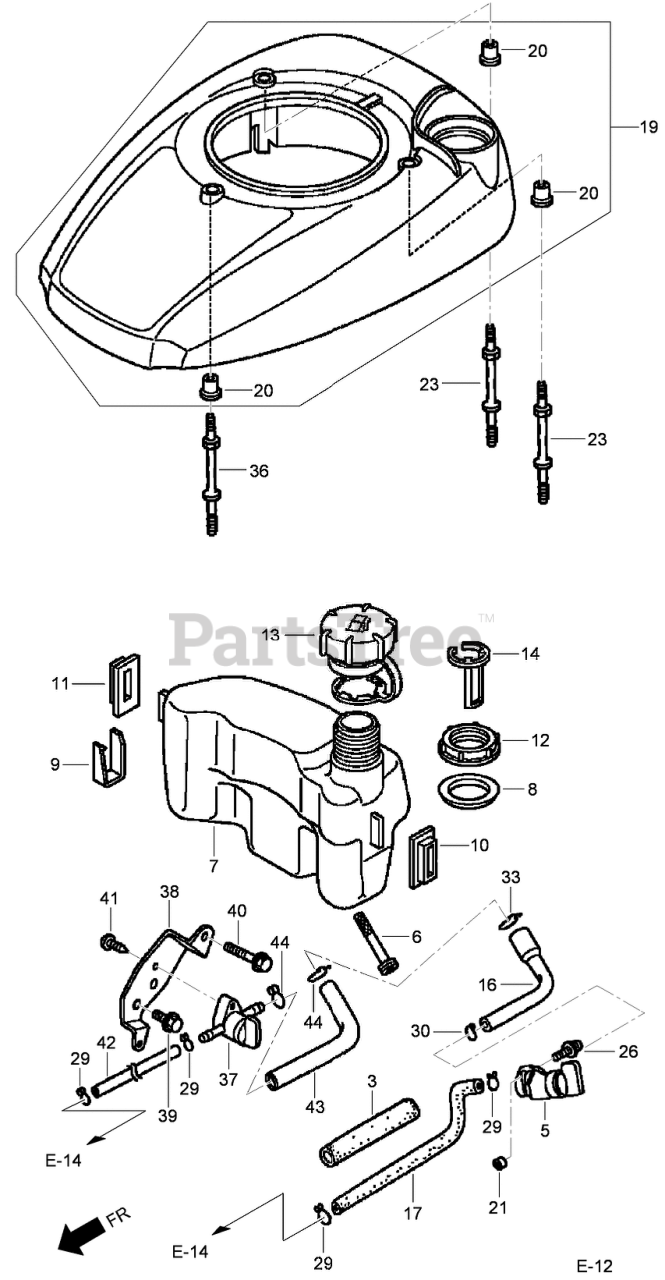

FAN COVER AND FUEL TANK ASSEMBLY HONDA GCV160L AS3A Parts Diagram

  • Title

3

Honda 16854-ZH8-000

SUPPORTER-RUBBER (107MM) (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 10

0

5

Honda 16950-ZM0-003

PETCOCK ASM (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, Qty 9

0

6

Honda 16952-ZA8-800

FILTER-FUEL

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 18

0

7

Honda 17511-Z0L-000

TANK-FUEL (engine serial numbers up to 6183839)

Note: Obtain parts from www.honda-engines.com

$32.99

$

Usually ships in 3-6 days

0

7

Honda 17511-Z0L-010

TANK-FUEL (engine serial numbers starting at 6183840)

Note: Obtain parts from www.honda-engines.com

$32.99

$

Usually ships in 3-6 days

0

8

Honda 17514-Z0L-000

SEAL-NECK, FUEL FILLER

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 5

0

9

Honda 17516-Z0L-000

CLIP-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, only 4 left!

0

10

Honda 17532-Z0L-000

RUBBER A-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 9

0

11

Honda 17533-Z0L-000

RUBBER B-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 6

0

12

Honda 17534-Z0L-000

NUT-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, only 4 left!

0

13

Honda 17620-Z0J-800

FUEL TANK CAP ASM
(Superseded to 17620-Z8B-800)

Note: Obtain parts from www.honda-engines.com

$22.99

$

In Stock, Qty 14

0

14

Honda 17636-Z0L-000

GAUGE-LEVEL, FUEL

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 9

0

16

Honda 17701-Z0L-810

TUBE-TANK, FUEL (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, Qty 9

0

17

Honda 17702-ZM0-800

TUBE-FUEL (engine serial numbers starting at 6901760)

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, only 3 left!

0

19

Honda 19610-Z0L-860ZA

COVER-FAN (NH1) (BLACK) (engine serial numbers up to 6702082)
(Superseded to 19610-Z0L-861ZA)

Note: Obtain parts from www.honda-engines.com

$45.99

$

Usually ships in 3-6 days

0

19

Toro 19610-Z0L-860ZC

COVER-FAN (T89) (CRAFTSMAN RED) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-860ZD

COVER-FAN (T93) (HUSQVARNA GRAY) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Toro 19610-Z0L-860ZE

COVER-FAN (T98) (M T D RED) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Honda 19610-Z0L-861ZA

COVER-FAN (NH1) (BLACK) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$45.99

$

Usually ships in 3-6 days

0

19

Honda 19610-Z0L-861ZC

COVER-FAN (T89) (CRAFTSMAN RED) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$28.99

$

Usually ships in 3-6 days

0

19

Toro 19610-Z0L-861ZD

COVER-FAN (T93) (HUSQVARNA GRAY) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

19

Honda 19610-Z0L-861ZE

COVER-FAN (T98) (M T D RED) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$13.99

$

Usually ships in 3-6 days

0

20

Honda 19619-ZL8-300

COLLAR-COVER, FAN

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 9

0

21

Honda 91501-Z0L-800

COLLAR-PETCOCK, FUEL (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90043-ZL8-000

BOLT-STUD (H=42.5MM)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 20+

0

26

Honda 93891-05010-08

SCREW-WASHER (5X10) (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 2 left!

0

29

Honda 95002-02080

CLIP-TUBE (B8)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

30

Honda 95002-02100

CLIP-TUBE (B10) (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 16

0

33

Honda 95002-70000

CLIP-TUBE (C11) (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

36

Honda 90043-ZL8-000

BOLT-STUD (H=42.5MM)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 20+

0

37

Honda 16950-Z0Y-003

PETCOCK ASM (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 14

0

38

Honda 16961-Z0L-900

STAY-PETCOCK (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$8.99

$

Usually ships in 3-6 days

0

39

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

40

Honda 90015-883-000

BOLT-FLANGE (6X28) (C T200) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

41

Honda 93913-25220

SCREW-TAPPING (5X12) (P O) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 11

0

42

Honda 95001-45003-50M

FUEL-HOSE, BULK (4.5X3000) (4.5X110) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$77.99

$

In Stock, only 1 left!

0

43

Honda 95001-75008-60M

FUEL-HOSE, BULK (7.5X8000) (7.3X160) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$144.99

$

Usually ships in 3-6 days

0

44

Honda 95002-02120

CLIP-TUBE (B12) (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0
