20194 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CARBURETOR ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

Super Bagger Walk-Behind Mower

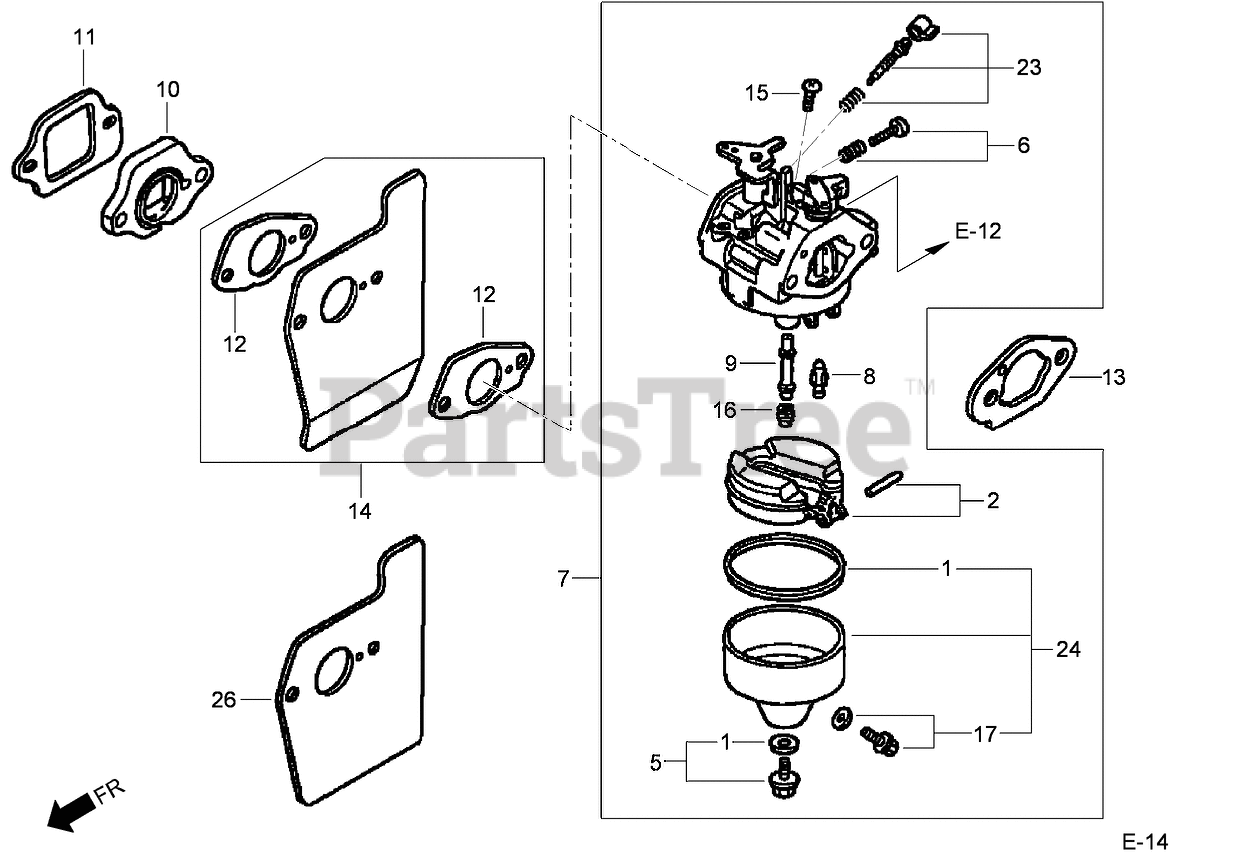

CARBURETOR ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-ZL1-003

FLOAT SET

Note: Obtain parts from www.honda-engines.com

$29.99

$

Usually ships in 3-6 days

0

5

Honda 16028-ZE0-005

SCREW SET
(Superseded to 16028-ZK7-S91)

Note: Obtain parts from www.honda-engines.com

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16028-ZK7-S91

SCREW SET

Note: Obtain parts from www.honda-engines.com

$12.99

$

Usually ships in 3-6 days

0

6

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP)

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZM0-804

CARBURETOR ASM (B B62B E) (engine serial numbers up to 3698326)
(Superseded to 16100-Z0L-023)

Note: Obtain parts from www.honda-engines.com

$23.99

$

In Stock, Qty 20+

0

7

Toro 16100-Z0L-003

CARBURETOR ASM (B B62W A) (engine serial numbers starting at 3698327)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

8

Honda 16155-ZM0-013

VALVE-FLOAT

Note: Obtain parts from www.honda-engines.com

$24.99

$

In Stock, only 1 left!

0

9

Honda 16166-ZM0-003

NOZZLE-MAIN

Note: Obtain parts from www.honda-engines.com

$20.99

$

Usually ships in 3-6 days

0

10

Honda 16211-ZL8-000

INSULATOR-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, Qty 20+

0

11

Honda 16212-ZL8-000

GASKET-INSULATOR

Note: Obtain parts from www.honda-engines.com

$7.49

$

In Stock, Qty 20+

0

12

Honda 16221-883-800

GASKET-CARBURETOR (engine serial numbers up to 6349022)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

13

Honda 16228-ZL8-000

GASKET-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

14

Honda 19650-ZM0-000

GUIDE-AIR (engine serial numbers up to 6349022)

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 20+

0

15

Honda 93500-05006-0H

SCREW-PAN (5X6)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 10

0

16

Honda 99101-124-0600

JET-MAIN (No.60) (Optional Equipment)

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, Qty 7

0

16

Honda 99101-124-0620

JET-MAIN (No.62) (Optional Equipment)

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, only 1 left!

0

16

Honda 99101-124-0650

JET-MAIN (No.65)

Note: Obtain parts from www.honda-engines.com

$11.99

$

Usually ships in 3-6 days

0

17

Honda 16024-ZE1-811

DRAIN SCREW SET

Note: Obtain parts from www.honda-engines.com

$9.99

$

In Stock, only 4 left!

0

23

Honda 16016-ZG0-W00

SCREW SET

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, only 1 left!

0

24

Honda 16015-887-782

FLOAT CHAMBER SET

Note: Obtain parts from www.honda-engines.com

$30.99

$

Usually ships in 3-6 days

0

26

Honda 19651-Z0L-000

GUIDE-AIR (engine serial numbers starting at 6349023)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+
