20194 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FAN COVER ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

Super Bagger Walk-Behind Mower

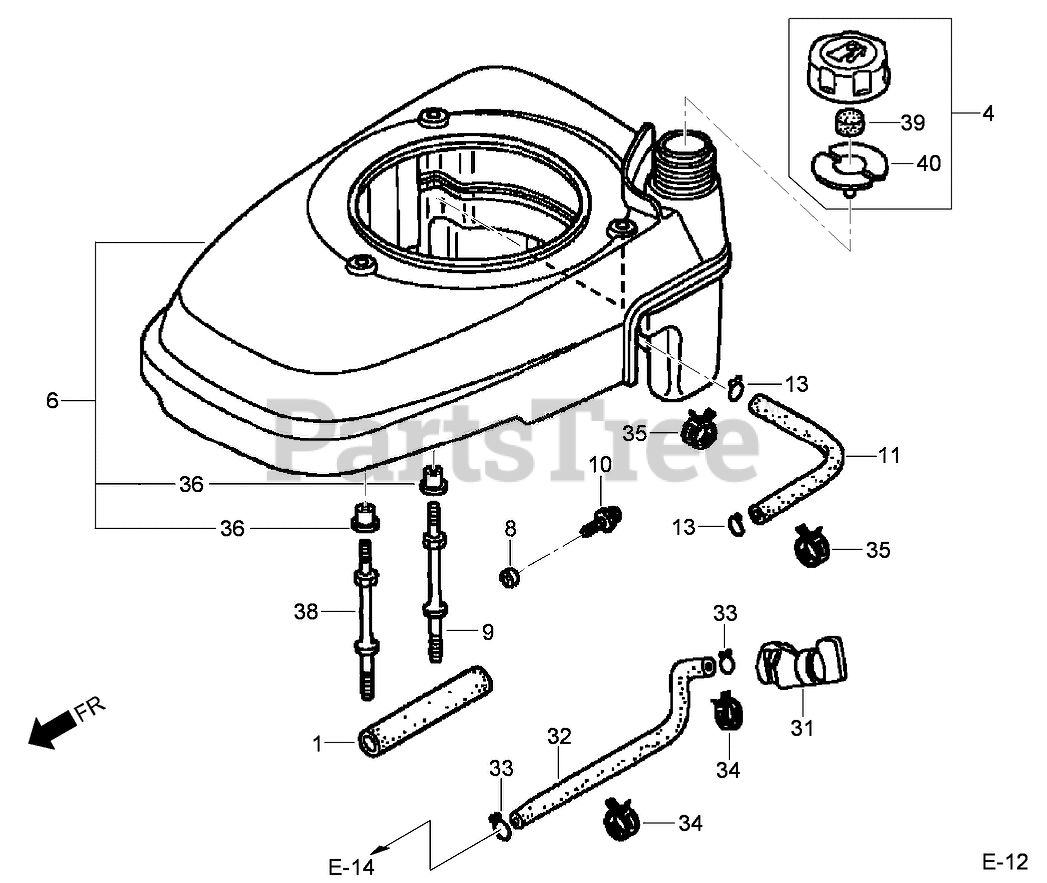

FAN COVER ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SUPPORTER-RUBBER (107 mm)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 8

0

4

Honda 17620-ZL8-013

FUEL TANK CAP ASM
(Superseded to 17620-ZL8-023)

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 1 left!

0

6

Honda 19610-Z0L-000ZA

COVER-FAN, N H1 (BLACK)
(Superseded to 19610-Z0L-000ZC)

Note: Obtain parts from www.honda-engines.com

$28.99

$

In Stock, only 2 left!

0

8

Honda 33609-GK4-620

COLLAR-TURN SIGNAL, FRONT

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 1 left!

0

9

Honda 90043-ZL8-000

BOLT-STUD (H=42.5MM)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 20+

0

10

Honda 93891-05010-08

SCREW-WASHER (5X10)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 2 left!

0

11

Honda 91425-Z0L-801

TUBE-FUEL (5.3X150) (FKM) (engine serial numbers starting at 3698327)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

11

Honda 95001-55003-60M

HOSE-FUEL, BULK (5.5X3000) (5.5X100) (engine serial numbers up to 3698326)

Note: Obtain parts from www.honda-engines.com

$65.99

$

Usually ships in 3-6 days

0

13

Honda 95002-02100

CLIP-TUBE (B10) (engine serial numbers up to 3698326)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 16

0

31

Honda 16950-ZM0-003

PETCOCK ASM

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, Qty 9

0

32

Honda 17702-ZM0-800

TUBE-FUEL (engine serial numbers up to 3698326)

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, only 2 left!

0

32

Toro 17702-Z0L-801

TUBE-FUEL (FKM) (engine serial numbers starting at 3698327)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

33

Honda 95002-02080

CLIP-TUBE (B8) (engine serial numbers up to 3698326)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

34

Honda 95002-40800-08

CLAMP-TUBE (D8) (engine serial numbers starting at 3698327)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 17

0

35

Honda 95002-41000-08

CLAMP-TUBE (D10) (engine serial numbers starting at 3698327)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

36

Honda 19619-ZL8-300

COLLAR-COVER, FAN

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 9

0

38

Honda 90043-ZL8-000

BOLT-STUD (H=42.5MM)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 20+

0

39

Honda 17622-ZL8-003

SPONGE-BREATHER, FUEL CAP

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 3 left!

0

40

Toro 17624-ZL8-003

GASKET-CAP, FUEL

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
