20194 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Flywheel Assembly Honda GCV160A NBL1 Parts Diagram

Super Bagger Walk-Behind Mower

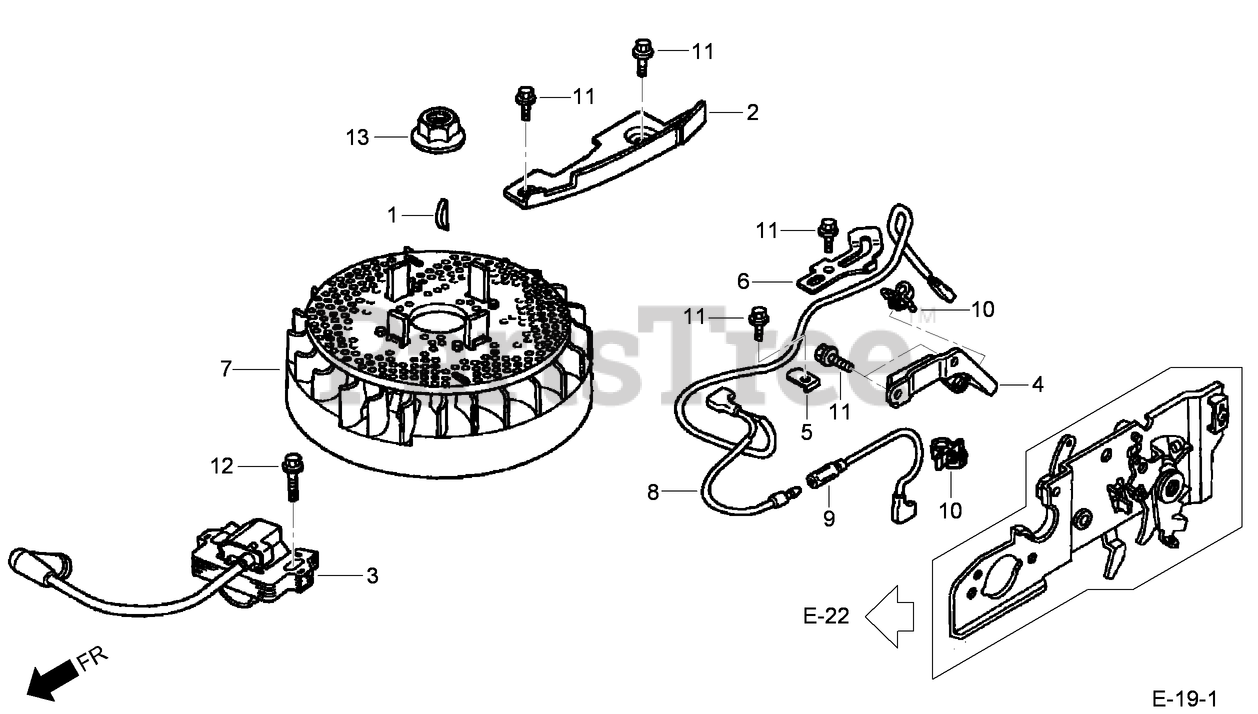

Flywheel Assembly Honda GCV160A NBL1 Parts Diagram

  • Title
1

Toro 13331-357-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 19612-ZM0-J20

PLATE-SIDE (engine serial numbers up to 5008780)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 19612-Z0L-000

PLATE-SIDE (engine serial numbers starting at 5008781)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Toro 30500-Z0J-003

IGNITION COIL ASM (PHELON) (USE FOR FLYWHEEL OF PHELON)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Toro 30547-Z0L-S00

CLAMP-WIRE, STOP SWITCH

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

5

Toro 30548-ZL8-000

CLAMP-WIRE, STOP SWITCH

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Toro 30549-ZL8-000

CLAMP-WIRE

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

7

Toro 31105-Z0J-010

FLYWHEEL ASM (PHELON) (USE FOR IGNITION COIL OF PHELON)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

8

Toro 32195-Z0L-S20

WIRE-SWITCH, STOP

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

9

Toro 32196-Z0L-S20

WIRE-SWITCH, STOP

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

10

Toro 51125-Z0L-003

HOLDER-WIRE (FASTEX)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

10

Toro 90681-959-003

CLIP A-CABLE (3.8MM BLACK) (NIFCO)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

11

Toro 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

12

Toro 90022-888-010

BOLT-FLANGE (6X20) (C T200) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

13

Toro 90201-878-003

NUT-SPECIAL (14 mm)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
