20199 - Toro 30" TimeMaster Walk-Behind Mower (SN: 312000001 - 312017872) (2012) DECK AND FRAME ASSEMBLY Parts Diagram

30" TimeMaster Walk-Behind Mower

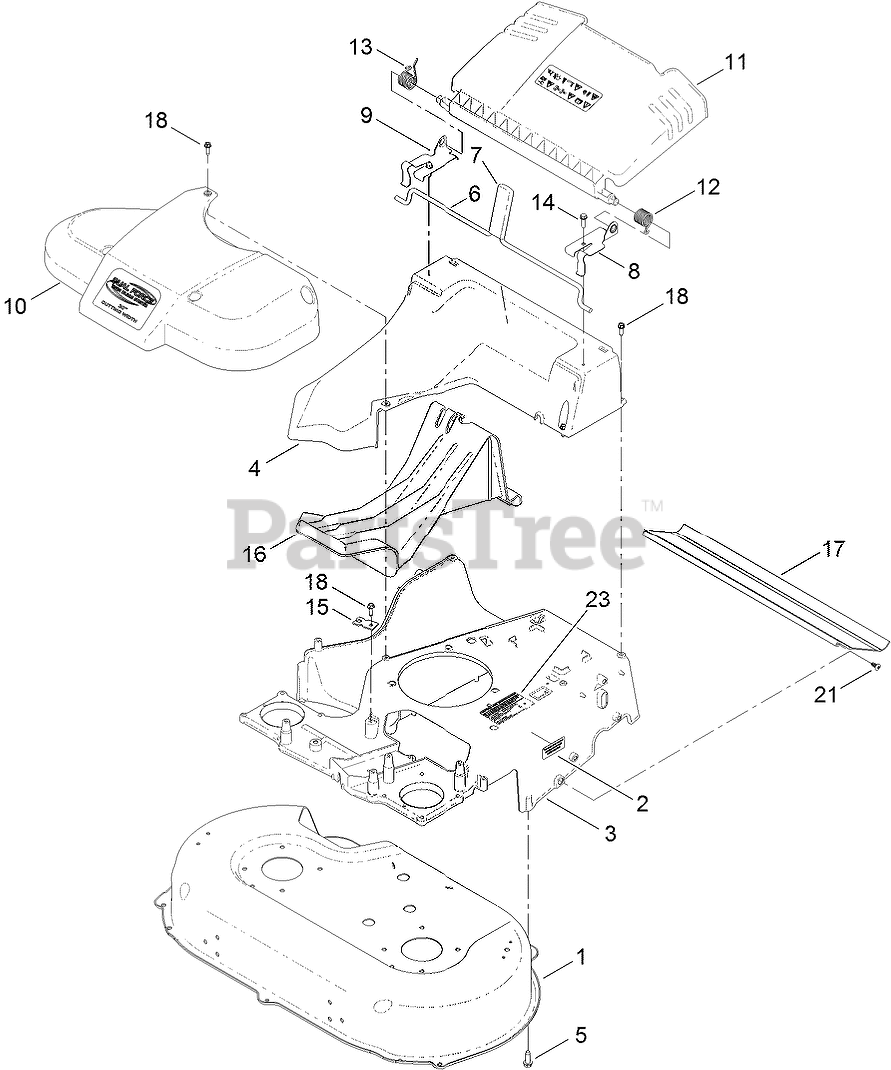

DECK AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 125-5087

HOUSING ASM
(Superseded to 136-5873)

$347.99

$

Usually ships in 3-6 days

0

2

Toro 121-5684

DECAL-LOCATION, SERVICE DEALER

$1.49

$

Usually ships in 3-6 days

0

3

Toro 120-3318-01

FRAME

$342.99

$

Usually ships in 3-6 days

0

4

Toro 120-3336

CHUTE
(Superseded to 133-8177)

$61.99

$

Usually ships in 3-6 days

0

5

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 120-3344

ROD-RELEASE, HANDLE

$35.99

$

Usually ships in 3-6 days

0

7

Toro 120-7018

GRIP-LEVER

$4.49

$

In Stock, only 2 left!

0

8

Toro 120-3345

BRACKET-DOOR, LH
(Superseded to 121-9114)

$20.99

$

Usually ships in 3-6 days

0

9

Toro 120-3346

BRACKET-DOOR, RH
(Superseded to 121-9115)

$20.99

$

Usually ships in 3-6 days

0

10

Toro 120-7049

BELT COVER ASM
(Superseded to 139-5408)

$56.99

$

In Stock, only 1 left!

0

11

Toro 120-7048

REAR DEFLECTOR ASM

$41.99

$

In Stock, only 3 left!

0

12

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, Qty 12

0

13

Toro 114-7924

SPRING-TORSION

$3.99

$

In Stock, only 2 left!

0

14

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

15

Toro 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)

$2.99

$

In Stock, only 3 left!

0

16

Toro 120-5225

PLUG-MULCH

$31.99

$

In Stock, Qty 19

0

17

Toro 120-6241

SHIELD-TRAILING

$17.99

$

In Stock, Qty 20+

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

23

Toro 117-2718

DECAL-ARRESTER, SPARK

$8.49

$

In Stock, only 2 left!

0

99

Toro 125-5072

FRAME PLATE KIT

Note: Not illustrated

$51.99

$

Usually ships in 3-6 days

0
