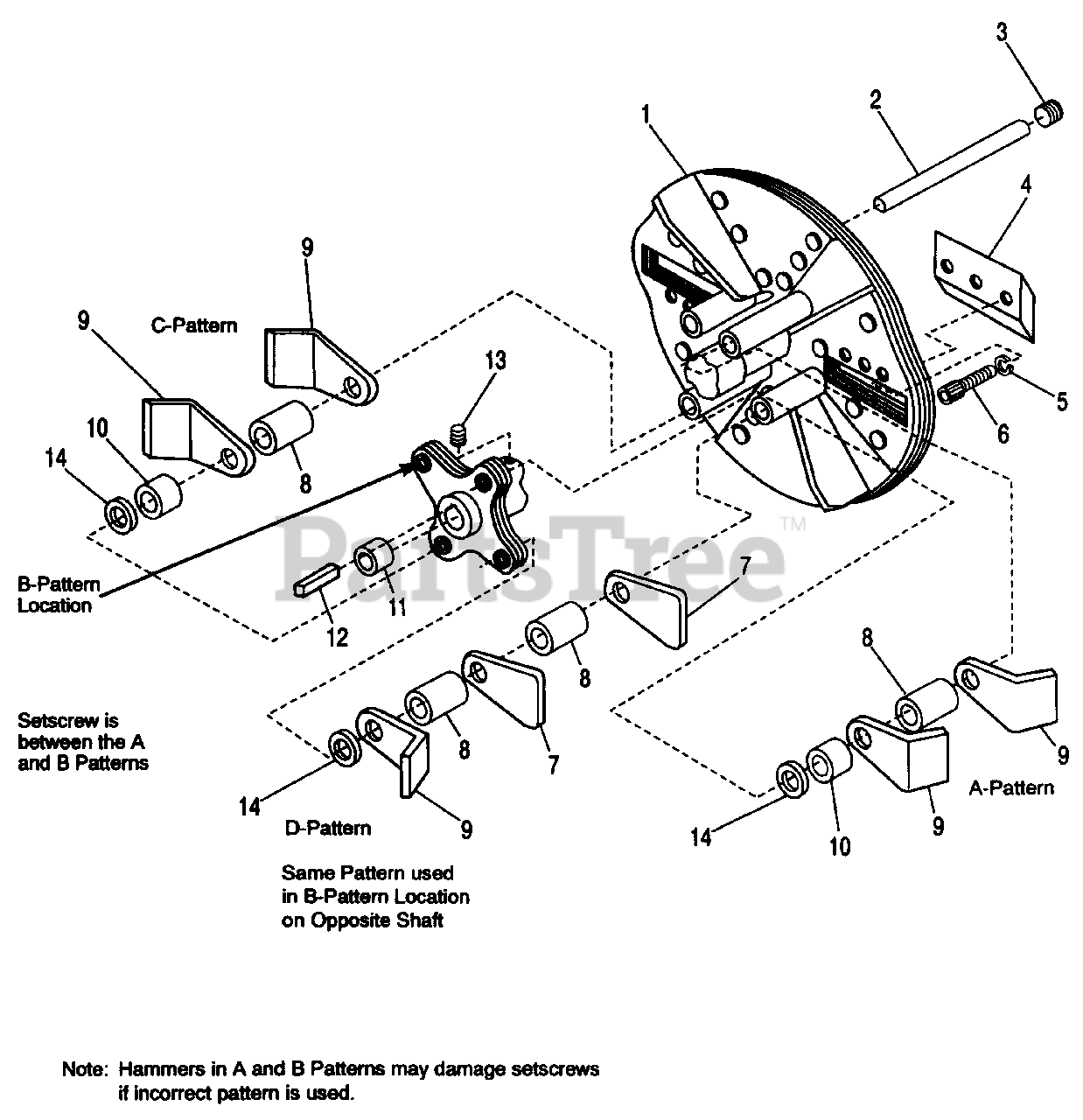

2020 (1692207) - Simplicity Chipper Shredder 20HP Rotor Group - Models 2020, 2024, 20 PTO & 24 PTO Parts Diagram

Chipper Shredder

20HP Rotor Group - Models 2020, 2024, 20 PTO & 24 PTO Parts Diagram

  • Title

1

Simplicity 3300020

ROTOR (PTO)

$

$

Not available

1

Simplicity 1729134SM

ROTOR (Trailer)

$

$

Not available

2

Simplicity 1709576

SHAFT, Hammer

$

$

Not available

3

Simplicity 917970

PIPE Plug, Socket Head, 1/2"

$

$

Not available

4

Simplicity 1729145

KNIFE, 5"

$

$

Not available

5

Simplicity 1916986

LOCKWASHER, 1/2"

$

$

Not available

6

Simplicity 1729213SM

CAPSCREW, Socket Hd., 1/2-20 x 1-5/8

$6.99

$

Usually ships in 2-12 days

0

7

Simplicity 1729136SM

HAMMER, Triangular

$

$

Not available

8

Simplicity 1709568SM

SPACER, Long, 1-7/8"

$21.99

$

Usually ships in 2-12 days

0

9

Simplicity 1729149SM

J HAMMER

$

$

Not available

10

Simplicity 1709567SM

SPACER, Short, 1"

$47.99

$

Usually ships in 2-12 days

0

11

Simplicity 3013020

SPACER, (PTO)

$

$

Not available

12

Simplicity 1729211SM

KEY, 3/8 x 3-3/8 (Trailer)

$

$

Not available

12

Simplicity 1729210SM

KEY, 8 mm x 56 mm (PTO)

$

$

Not available

13

Simplicity 1729218SM

SCREW, Set, 1/2-20 x 1/2 (Apply Loctite)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1980160

WASHER, 3/4 I.D. x 1-39/64 O.D. x 3/64 THK.

$

$

Not available
