20213 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

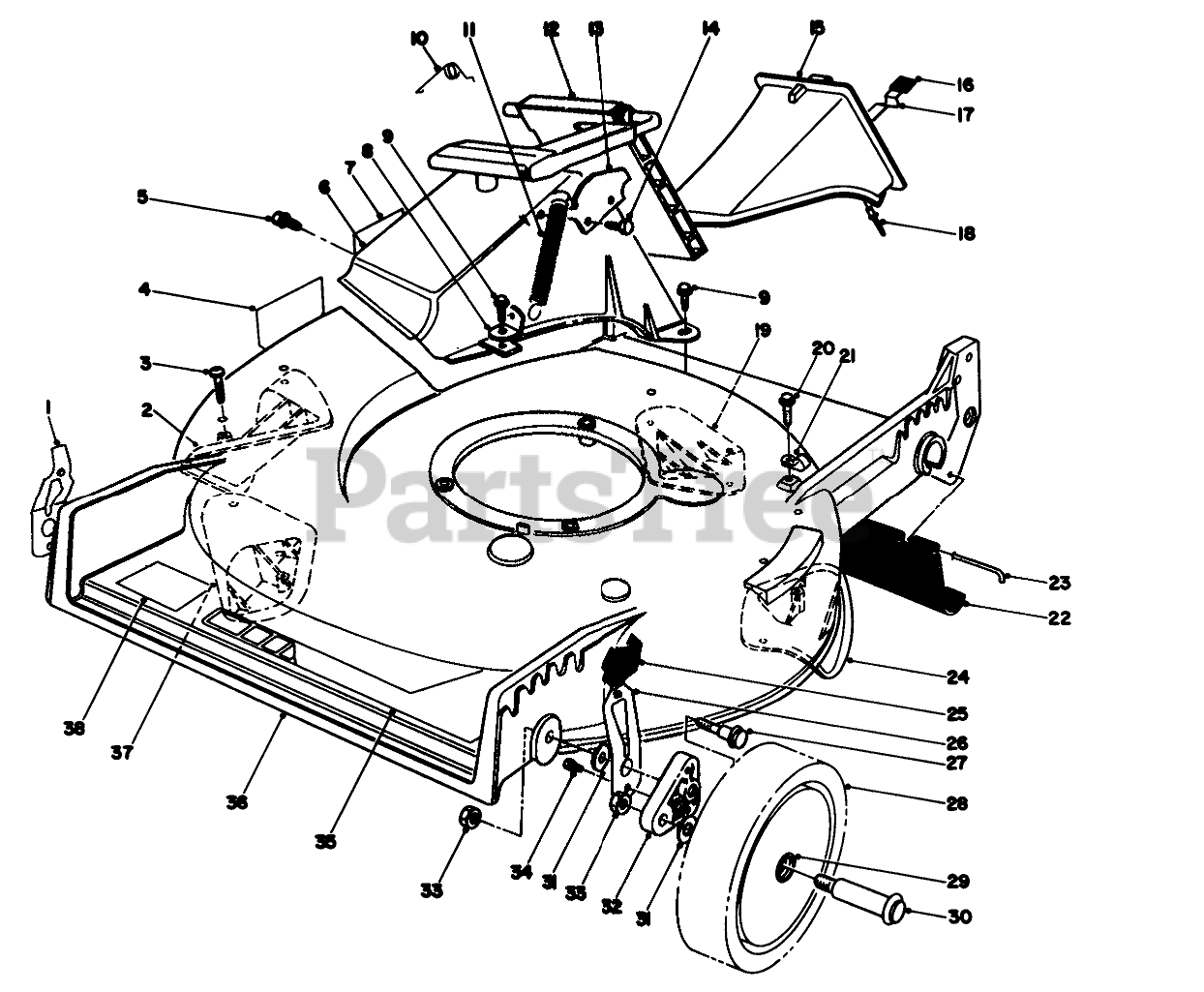

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

Usually ships in 3-6 days

0

2

Toro 76-2140

KICKER

$28.99

$

Usually ships in 3-6 days

0

3

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

4

Toro 56-6270

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

5

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

6

Toro 82-9151

TUNNEL-DISCHARGE

$164.99

$

Usually ships in 3-6 days

0

7

Toro 624060

Decal-Danger

$

$

Currently unavailable

8

Toro 80-3780

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

9

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

10

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 2 left!

0

11

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 6

0

12

Toro 76-0200

OIL CAP ASM

$79.99

$

In Stock, only 1 left!

0

13

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

14

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

15

Toro 76-0501

Plug-Discharge (Incl. Ref . #16-18)

$

$

Currently unavailable

16

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

17

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

18

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

19

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

22

Toro 44-0590

HANDLE LATCH

$37.99

$

Usually ships in 3-6 days

0

23

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

24

Toro 76-2130

KICKER

$28.99

$

Usually ships in 3-6 days

0

25

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

26

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

27

Toro 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, Qty 10

0

28

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #29)
(Superseded to 51-2751)

$30.99

$

Usually ships in 3-6 days

0

29

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

30

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

31

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

32

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

33

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

34

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

35

Toro 76-1950

DECAL - DECK

$15.99

$

Usually ships in 3-6 days

0

36

Toro 14-3499

Housing Assembly (Incl. Ref. #2-4, 19, 24 & 37)
(Superseded to 16-1579)

$998.99

$

Usually ships in 3-6 days

0

37

Toro 76-2120

KICKER

$28.99

$

In Stock, only 1 left!

0

38

Toro 71-0600

DECAL

$13.99

$

Usually ships in 3-6 days

0
