20214 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

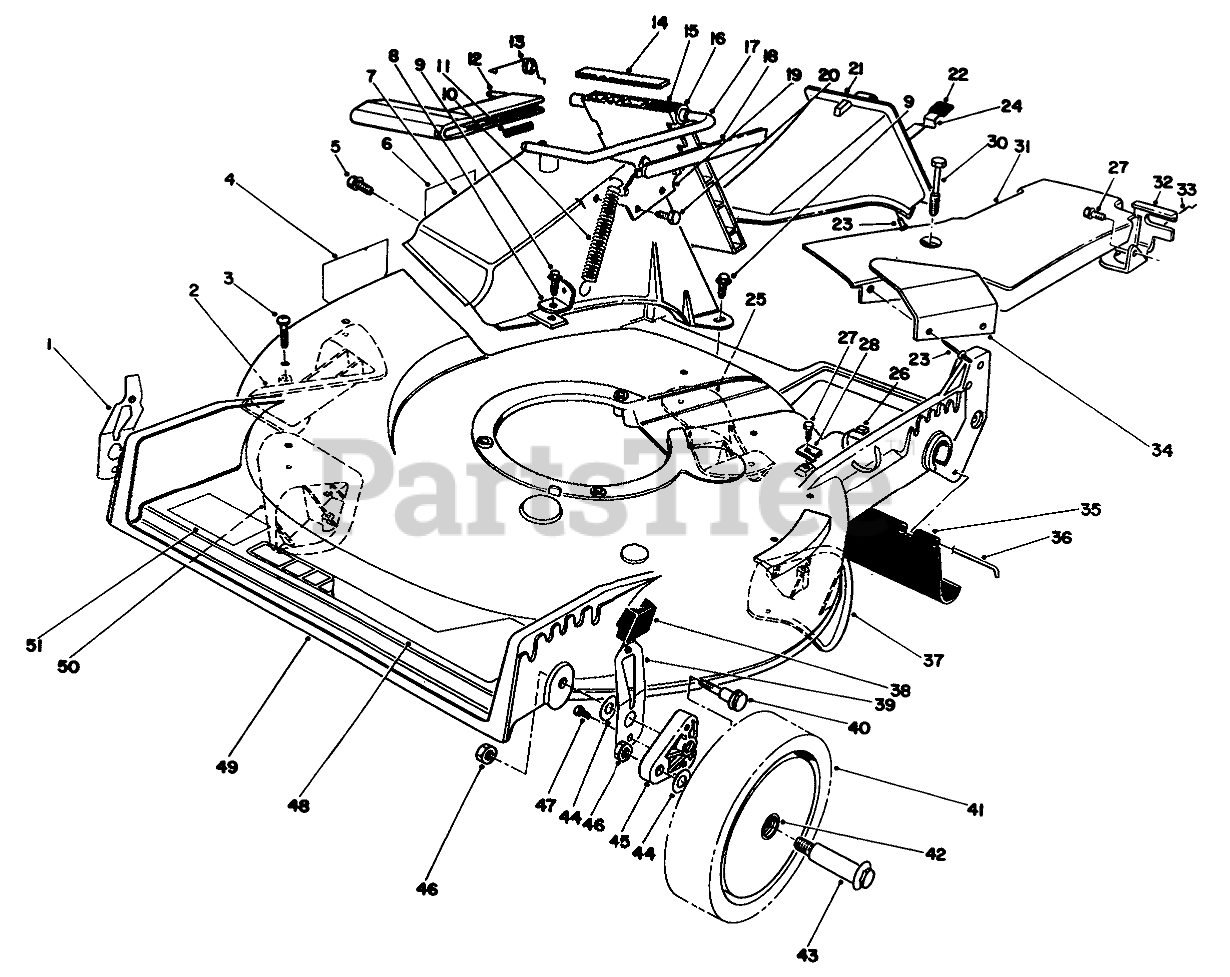

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

Usually ships in 3-6 days

0

2

Toro 76-2130

KICKER

$28.99

$

Usually ships in 3-6 days

0

3

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

4

Toro 56-6270

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

5

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

6

Toro 62-4060

DECAL - DANGER

$

$

Not available

7

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

8

Toro 80-3780

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

9

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

10

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 6

0

11

Toro 46-7060

Spring

$

$

Not available

12

Toro 46-3520

Handle-Door

$

$

Not available

13

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 1 left!

0

14

Toro 46-6821

Cover-Door

$

$

Not available

15

Toro 46-3511

Door-Discharge
(Superseded to 77-0200)

$

$

Not available

16

Toro 23-0880

BUSHING-NYLON

$

$

Not available

17

Toro 76-4580

Rod-Door

$

$

Not available

18

Toro 49-4170

Cover-Handle

$

$

Not available

19

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

20

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

21

Toro 77-0501

Plug Assembly (Incl. Ref. #22-24)

$

$

Not available

22

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

24

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

25

Toro 76-2150

KICKER

$28.99

$

Usually ships in 3-6 days

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 12

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 4 left!

0

30

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 5

0

31

Toro 52-7406

Belt Cover Assembly (Incl. Ref. #23 & 34)

$

$

Not available

32

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

33

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

34

Toro 77-0280

HEAT SHIELD

$

$

Not available

35

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

36

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

37

Toro 76-2140

KICKER

$28.99

$

Usually ships in 3-6 days

0

38

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

39

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

40

Toro 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, Qty 9

0

41

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #42)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

42

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

43

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

44

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

45

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

46

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

47

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

48

Toro 76-1950

DECAL - DECK

$15.99

$

Usually ships in 3-6 days

0

49

Toro 14-3519

Housing Assembly (Incl. Ref. #2-4, 25, 36 & 50))
(Superseded to 16-1599)

$921.99

$

Usually ships in 3-6 days

0

50

Toro 76-2120

KICKER

$28.99

$

In Stock, only 1 left!

0

51

Toro 71-0600

DECAL

$13.99

$

Usually ships in 3-6 days

0

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

Toro 77-0501

Plug Assembly (Incl Ref. #21-24)

$

$

Not available
