20214 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

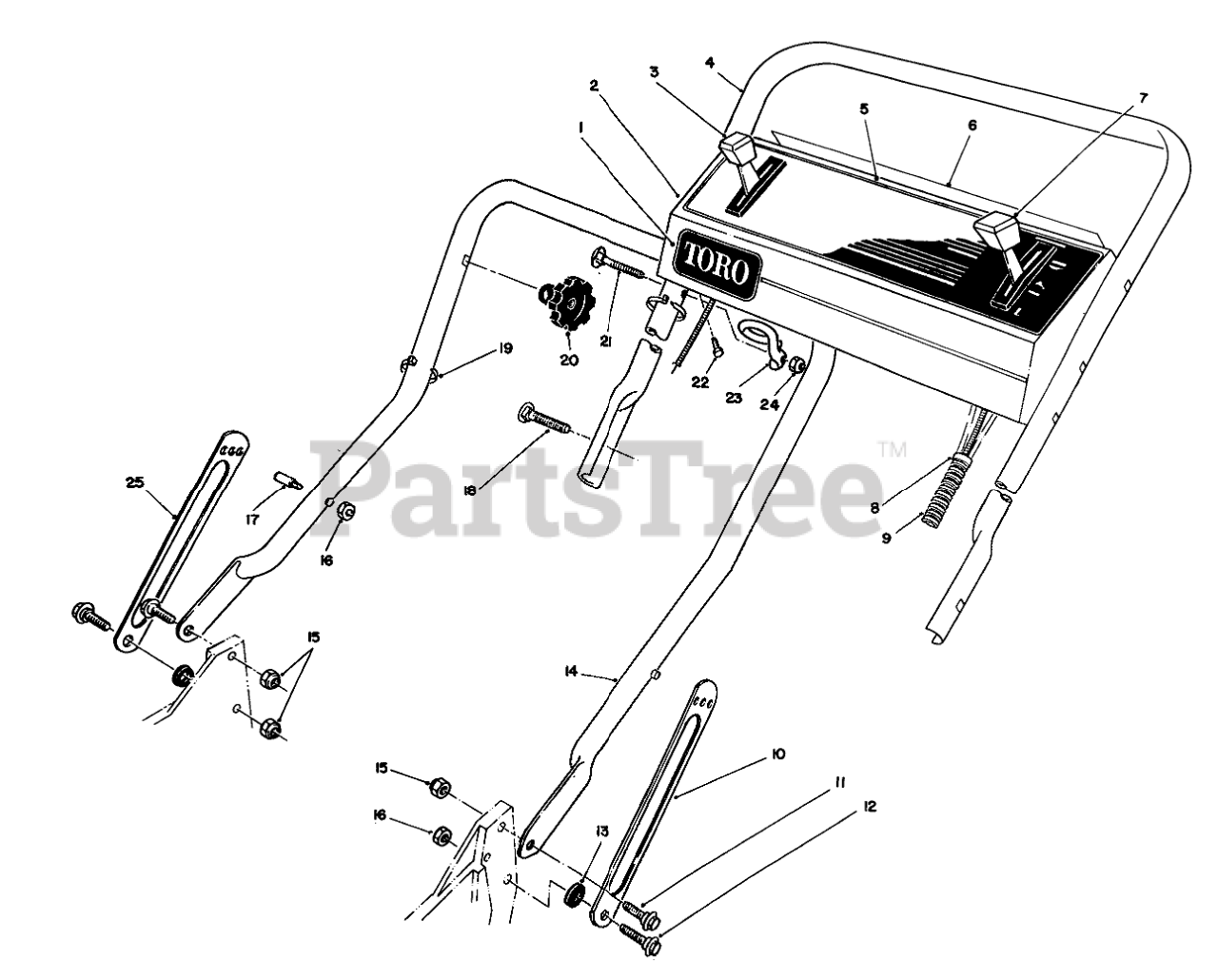

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 84-5630

DECAL - TORO

$

$

Not available

2

Toro 14-4759

Panel-Control(Incl. Ref. #5)

$

$

Not available

3

Toro 76-2711

Control-Ground Speed
(Superseded to 76-2712)

$41.99

$

In Stock, only 1 left!

0

4

Toro 49-4237

UPPER HANDLE

$

$

Not available

5

Toro 80-4780

DECAL - INSTRUCTIONS

$

$

Not available

6

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$8.99

$

Usually ships in 3-6 days

0

7

Toro 74-3894

THROTTLE CONTROL

$95.99

$

Usually ships in 3-6 days

0

8

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

9

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

10

Toro 84-8360

LH HANDLE LATCH

$17.99

$

Usually ships in 3-6 days

0

11

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

12

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

14

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

17

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$32.99

$

Usually ships in 3-6 days

0

18

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

19

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

20

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

21

Toro 46-6433

HANDLE SCREW

$11.99

$

Usually ships in 3-6 days

0

22

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 84-8400

RH HANDLE LATCH

$

$

Not available
