20223 - Toro Whirlwind Walk-Behind Mower (SN: 009000001 - 009999999) (1969) 21" Whirlwind S.p. - Fingertip Start Parts Diagram

Whirlwind Walk-Behind Mower

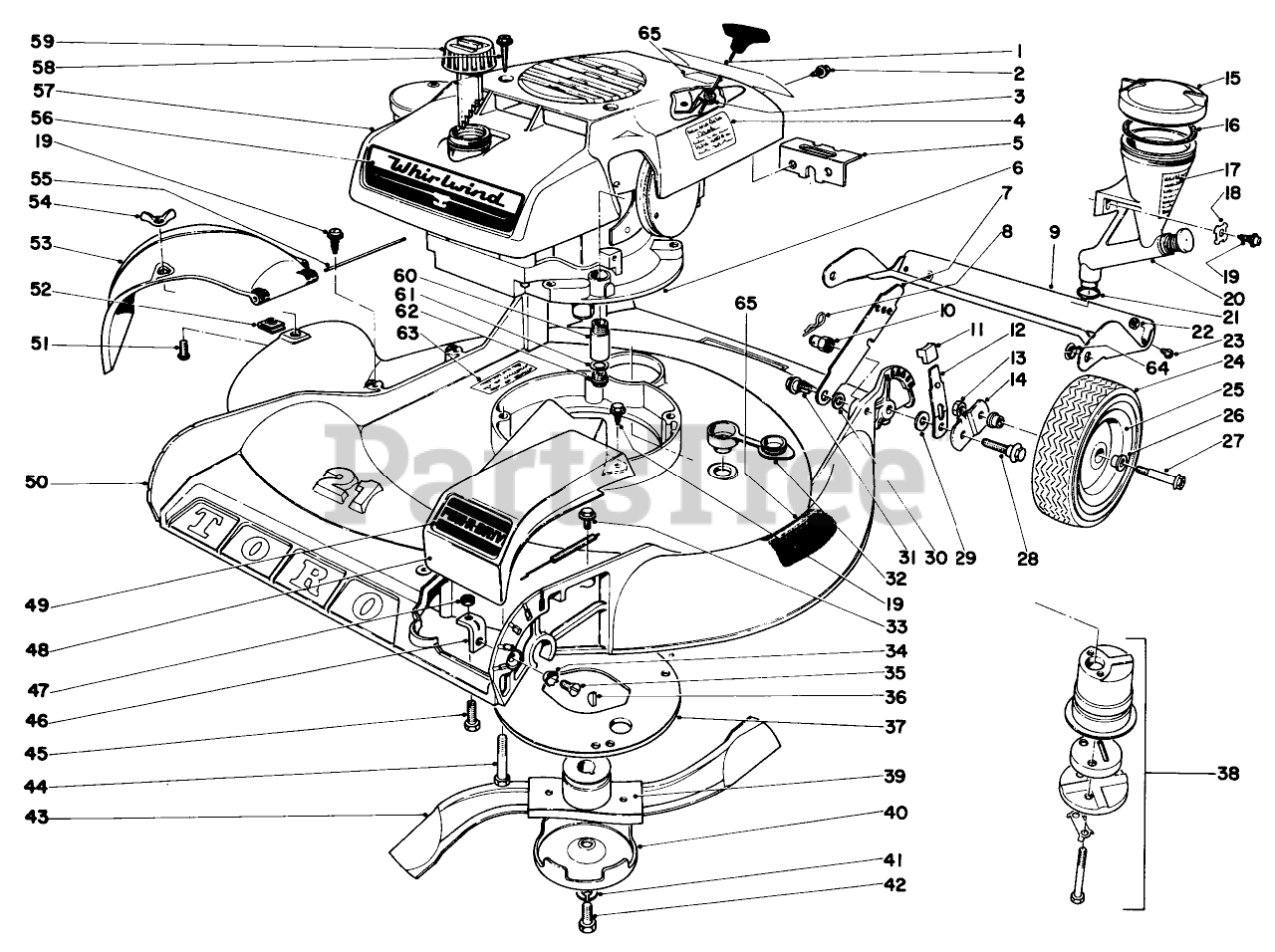

21" Whirlwind S.p. - Fingertip Start Parts Diagram

  • Title

1

Toro 5-3335

Decal

$

$

Currently unavailable

2

Toro 32104-75

See Supercession: 32144-34
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 5

0

3

Toro 5-3340

Bracket,Recoil

$

$

Currently unavailable

4

Toro 5-4706

Decal,Start

$

$

Currently unavailable

5

Toro 5-3307

Bracket

$

$

Currently unavailable

6

Toro 221-318

Engine

$

$

Currently unavailable

7

Toro 5-2446

See Supercession: 43-1550
(Superseded to 43-1550)

$

$

Not available

8

Toro 3290-255

PIN-COTTER, HAIR

$10.99

$

In Stock, only 1 left!

0

9

Toro 5-4662

Safety Shield-Rear

$

$

Currently unavailable

10

Toro 3-6482

See Supercession: 12-2080
(Superseded to 12-2080)

$28.99

$

Usually ships in 3-6 days

0

11

Toro 5-0656

DISCONTINUE

$

$

Not available

12

Toro 5-3357

DISCONTINUED XREF

$

$

Not available

13

Toro 32146-12

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

14

Toro 5-4471

Pivot Arm

$

$

Currently unavailable

15

Toro 3-8429

Cap, Reservoir (Incl. Ref. 15)

$

$

Currently unavailable

16

Toro 5-1391

DISCONTINUED

$

$

Not available

17

Toro 5-2947

Decal, Reservoir

$

$

Currently unavailable

18

Toro 3290-261

Washer

$

$

Currently unavailable

19

Toro 5-2046

Pad

$

$

Currently unavailable

20

Toro 5-0625

DISCONTINUED

$

$

Not available

21

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

22

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 3 left!

0

23

Toro 3258-159

DISCONTINUED
(Superseded to 5-6450)

$

$

Not available

24

Toro 4-2600

DISCONTINUED

$

$

Not available

25

Toro 3-7350

DISCONTINUED XREF

$

$

Not available

27

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

28

Toro 5-3351

See Supercession: 12-2440
(Superseded to 12-2440)

$25.99

$

Usually ships in 3-6 days

0

29

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

30

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

31

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

32

Toro 5-0655

See Supercession: 6-4500
(Superseded to 6-4500)

$

$

Not available

33

Toro 32104-82

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

34

Toro 3255-12

DISCONTINUED

$

$

Not available

35

Toro 32108-2

Screw, Flat Head

$

$

Currently unavailable

36

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 2 left!

0

37

Toro 3-7626

DISCONTINUED

$

$

Not available

38

Toro 2-9329

See Supercession: 5-4769
(Superseded to 5-4769)

$68.99

$

Usually ships in 3-6 days

0

39

Toro 3-7286

BLADE RETAINER WA

$239.99

$

Usually ships in 3-6 days

0

40

Toro 5-4475

See Supercession: 5-9530
(Superseded to 5-9530)

$

$

Not available

41

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

42

Toro 3-5246

DISCONTINUED

$

$

Not available

43

Toro 5-1610

DISCONTINUED XREF

$

$

Not available

44

Toro 32140-49

See Supercession: 11-0580
(Superseded to 11-0580)

$

$

Not available

45

Toro 3-7281

DISCONTINUED

$

$

Not available

46

Toro 3-7278

DISCONTINUED

$

$

Not available

47

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 3 left!

0

48

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

49

Toro 5-3303

Decal

$

$

Currently unavailable

50

Toro 5-3324

Housing

$

$

Currently unavailable

51

Toro 3290-133

SCREW

$1.99

$

Usually ships in 3-6 days

0

52

Toro 3290-199

NUT-SPEED

$5.99

$

Usually ships in 3-6 days

0

53

Toro 5-3311

DISCONTINUED
(Superseded to 71-8640)

$

$

Not available

54

Toro 32103-14

NUT-WING SPECL

$16.99

$

Usually ships in 3-6 days

0

55

Toro 3-2644

DISCONTINUED

$

$

Not available

56

Toro 5-3304

Decal

$

$

Currently unavailable

57

Toro 5-4705

Shroud

$

$

Currently unavailable

58

Toro 32104-88

SCREW-HWH

$

$

Not available

59

Toro 5-3460

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

60

Toro 3-0761

Extension Oil Drain

$

$

Currently unavailable

61

Toro 28833

Gasket-Oil Drain

$

$

Currently unavailable

62

Toro 27244

Plug Oil Drain

$

$

Currently unavailable

63

Toro 3-7643

See Supercession: 104-8589
(Superseded to 104-8589)

$8.49

$

Usually ships in 3-6 days

0

64

Toro 256-194

Nyliner

$

$

Currently unavailable

Toro 3-6279

Grass Bag Locking Strap

Note: Not illustrated

$

$

Currently unavailable

Toro 81064

Bag-Set of 2

Note: Not illustrated

$

$

Currently unavailable

Toro 5-4472

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 4-0909

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

65

Toro 5-4752

DISCONTINUED

$

$

Not available
