2024749 - Simplicity Model 67 Rotor Tiller Drives - Gearbox Group (3482I124) Parts Diagram

Model 67 Rotor Tiller

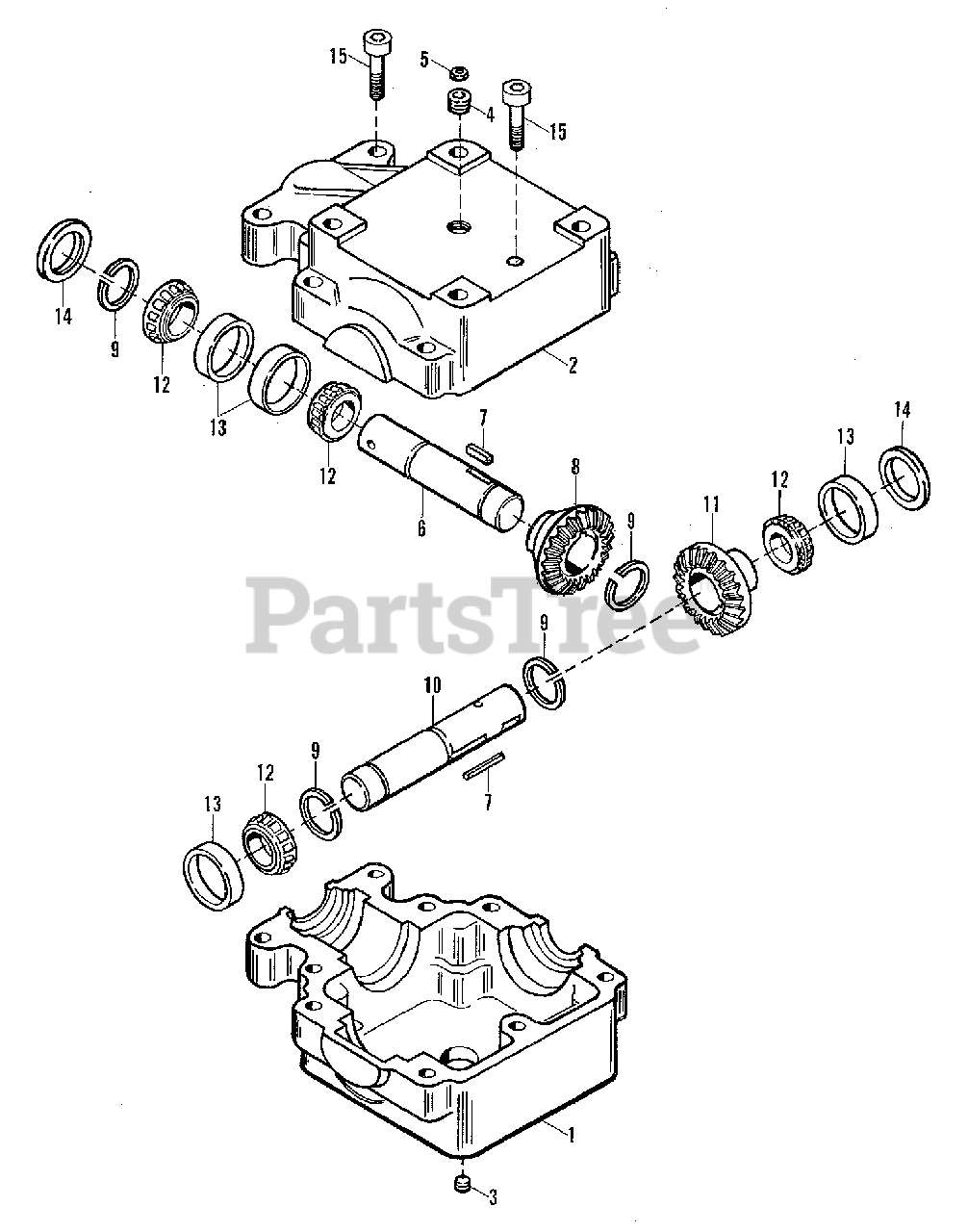

Drives - Gearbox Group (3482I124) Parts Diagram

  • Title

-

Simplicity 2069962-5

GEARBOX ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2069986-4

HOUSING, Half (Threaded Holes)

$

$

Not available

2

Simplicity 2070034-0

HOUSING, Half (Thru Holes)

$

$

Not available

3

Simplicity 2069993-0

PLUG, Pipe

$

$

Not available

4

Simplicity 2069992-2

BUSHING, Pipe Adapter

$

$

Not available

5

Simplicity 2108545-1

PLUG, Pressure Relief (5 P.S.I.)

$

$

Not available

6

Simplicity 2069988-0

SHAFT, Pinion

$

$

Not available

7

Simplicity 2108544-4

KEY, Straight, 1/4 x 1/4 x 1-1/8

$

$

Not available

8

Simplicity 2069996-3

GEAR, Pinion (20T)

$

$

Not available

9

Simplicity 2108543-6

RING, Retaining

$

$

Not available

10

Simplicity 2069995-5

SHAFT, Cross

$

$

Not available

11

Simplicity 2069989-8

GEAR, (30t)

$

$

Not available

12

Simplicity 2069990-6

CONE, Bearing

$

$

Not available

13

Simplicity 2069991-4

CUP, Bearing

$

$

Not available

14

Simplicity 2108542-8

SEAL

$

$

Not available

15

Simplicity 0912270-6

CAPSCREW, Socket Head, 3/8NC x 2-1/4, Gr. 8

$

$

Not available

-

Simplicity 0930239-9

PRIMER, Loctite (4 oz.)

$

$

Not available

-

Simplicity 0935257-6

LOCTITE 515 (10cc)

$

$

Not available
