2024749 - Simplicity Model 67 Rotor Tiller Frames - Support Stand Group (3482I122) Parts Diagram

Model 67 Rotor Tiller

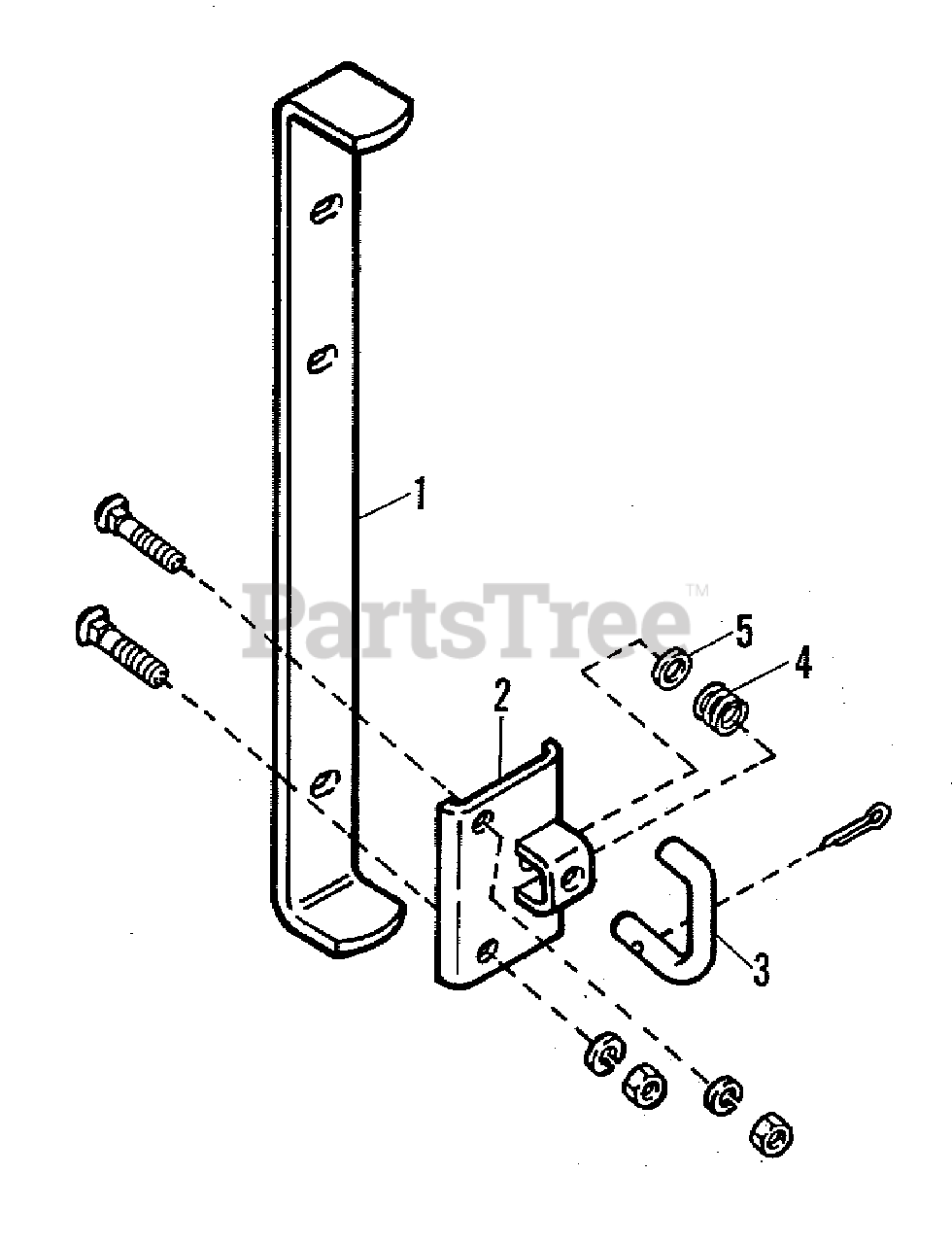

Frames - Support Stand Group (3482I122) Parts Diagram

  • Title

1

Simplicity 2070022-5

ARM, Support

$

$

Not available

2

Simplicity 2070025-8

BRACKET, Mounting

$

$

Not available

2

Simplicity 0921158-2

BOLT, Carriage, 5/16NC x 1

$

$

Not available

2

Simplicity 0921926-2

BOLT, Carriage, 5/16NC x 1-1/4

$

$

Not available

2

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

2

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

3

Simplicity 2070024-1

ROD, Latch

$

$

Not available

3

Simplicity 0918455-7

PIN, Cotter, 5/32 x 3/4

$

$

Not available

4

Simplicity 2070023-3

SPRING, Compression

$

$

Not available

5

Simplicity 0919326-9

WASHER, Plain, 11/32 x 3/4 x 16 Ga.

$

$

Not available
