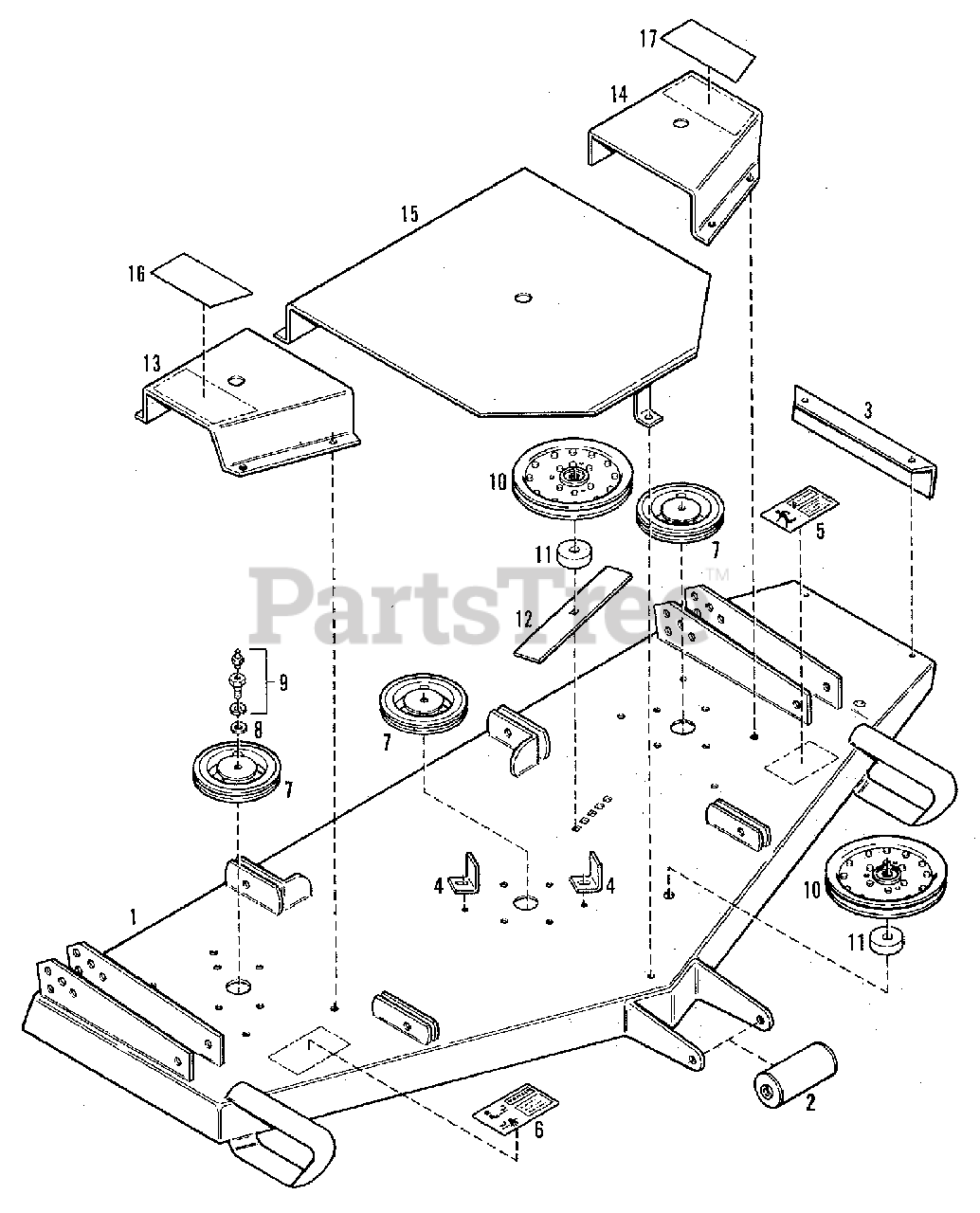

2024780 - Simplicity 54" Mower Deck, Center-Mounted Deck & Shields Group (3482I54) Parts Diagram

54" Mower Deck, Center-Mounted

Deck & Shields Group (3482I54) Parts Diagram

  • Title

1

Simplicity 2107304-4

DECK, Mower, 54"

$

$

Not available

2

Simplicity 2107314-3

ROLLER ASSEMBLY, Anti-Scalp

$

$

Not available

2

Simplicity 0924910-3

BOLT, Carriage, 1/2NC x 7-1/2

$

$

Not available

2

Simplicity 0923352-9

NUT, Lock, w/Nylok

$

$

Not available

3

Simplicity 2107312-7

DEFLECTOR, Mulch Cap

$

$

Not available

3

Simplicity 0922249-8

BOLT, Carriage, 3/8NC x 1

$

$

Not available

3

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

3

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 2107308-5

GUIDE, Belt Retainer

$

$

Not available

4

Simplicity 0922249-8

BOLT, Carriage, 3/8NC x 1

$

$

Not available

4

Simplicity 0916965-7

LOCKWAHER, 3/8

$

$

Not available

4

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

5

Simplicity 2107302-8

DECAL, Warning-Discharge

$

$

Not available

6

Simplicity 2107301-0

DECAL, Danger-Blade

$

$

Not available

7

Simplicity 2107317-6

PULLEY, Drive

$

$

Not available

8

Simplicity 2107316-8

WASHER, Flat, Spindle

$

$

Not available

9

Simplicity 2107315-0

SCREW, Spindle, 1/2NC x 3/4

$

$

Not available

9

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

9

Simplicity 0914687-9

FITTING, Grease, 1/4NF Straight

$

$

Not available

10

Simplicity 2107310-1

IDLER, Back Side

$

$

Not available

10

Simplicity 0923162-2

BOLT, Carriage, 5/8NC x 2-1/2

$

$

Not available

10

Simplicity 0923351-1

NUT, Lock, 5/8NC

$

$

Not available

11

Simplicity 2107309-3

SPACER, Bottom

$

$

Not available

12

Simplicity 2107311-9

LEVER, Cover Strap

$

$

Not available

13

Simplicity 2107306-9

SHIELD, Belt, R.H.

$

$

Not available

13

Simplicity 0920562-6

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

13

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

13

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

14

Simplicity 2107305-1

SHIELD, Belt, L.H.

$

$

Not available

14

Simplicity 0920562-6

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

14

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

14

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

15

Simplicity 2107307-7

SHIELD ASSEMBLY, Center

$

$

Not available

15

Simplicity 0931333-9

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

15

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

15

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

16

Simplicity 2107324-2

TAPE, Safety Walk, R.H.

$

$

Not available

17

Simplicity 2107323-4

TAPE Safety Walk, L.H.

$

$

Not available

18

Simplicity 1672681-2

SCREEN, Grille-Cut-Out

$

$

Not available
