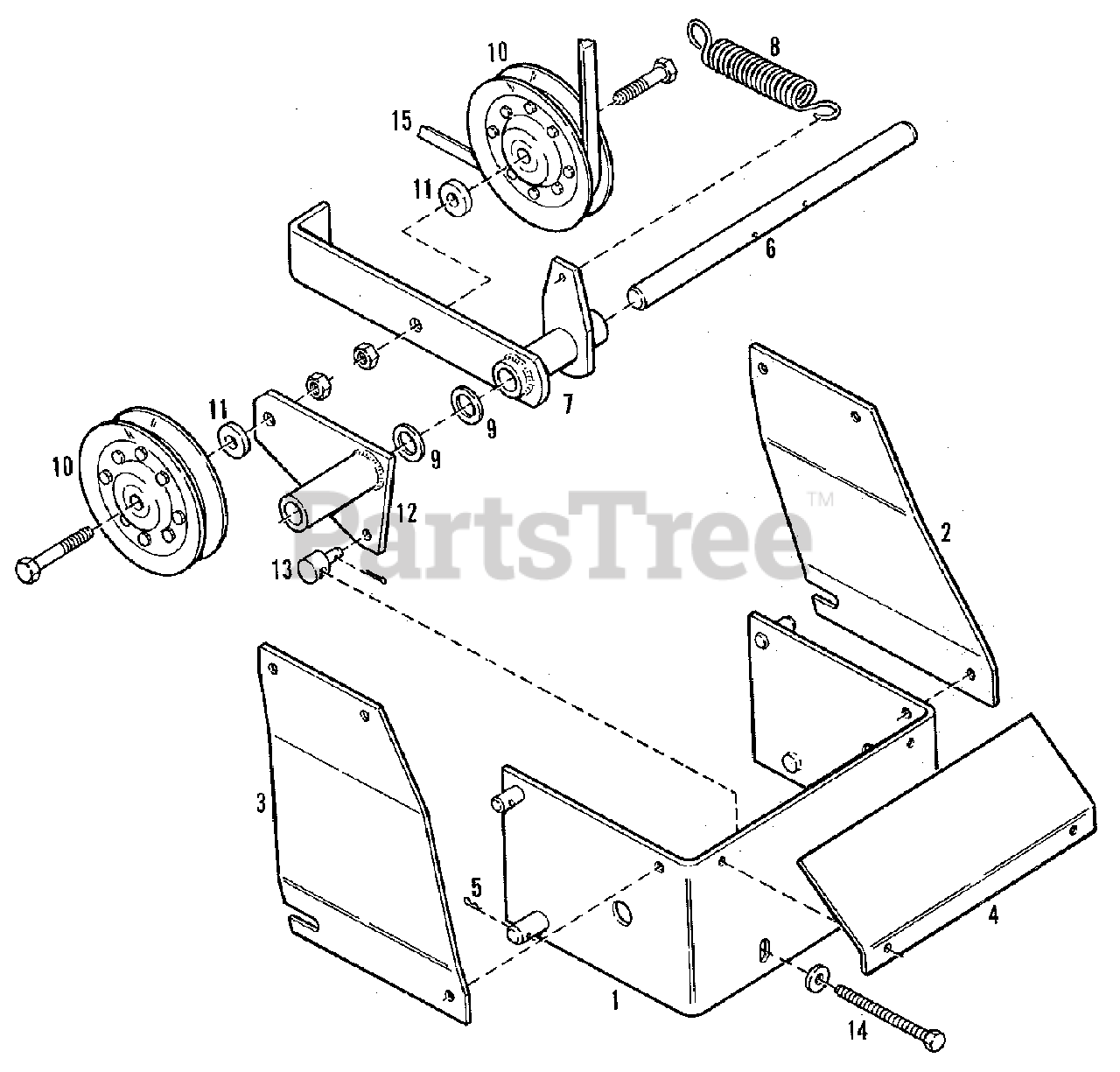

2024780 - Simplicity 54" Mower Deck, Center-Mounted Idler Assembly Group (3482I57) Parts Diagram

54" Mower Deck, Center-Mounted

Idler Assembly Group (3482I57) Parts Diagram

  • Title

1

Simplicity 2107328-3

SUPPORT ASSEMBLY, Idler

$

$

Not available

1

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

2

Simplicity 2107369-7

BRACKET, Hanger, 1/2

$

$

Not available

2

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

2

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

2

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

3

Simplicity 2107368-9

BRACKET, Hanger, R.H.

$

$

Not available

3

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

3

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

3

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

4

Simplicity 2107329-1

SHIELD, Front, Idler Support

$

$

Not available

4

Simplicity 0924201-7

SCREW, Hex Head, Thread Cut, 1/4NC x 3/4

$

$

Not available

4

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

5

Simplicity 2107337-4

PIN, Hair, Cotter, No. 6

$

$

Not available

6

Simplicity 2107330-9

SHAFT, Idler, Mower

$

$

Not available

6

Simplicity 0916171-2

PIN, Roll, 1/4 x 1-1/2

$

$

Not available

7

Simplicity 2107331-7

ARM ASSEMBLY, Idler

$

$

Not available

8

Simplicity 2107358-0

SPRING, Extension

$

$

Not available

9

Simplicity 2107370-5

WASHER, Machine, 1" x 10 Ga.

$

$

Not available

10

Simplicity 2107333-3

IDLER, V-Belt

$

$

Not available

10

Simplicity 0923269-5

CAPSCREW, 5/8NC x 2-1/2

$

$

Not available

10

Simplicity 0923351-1

NUT, Lock, 5/8nc

$

$

Not available

11

Simplicity 2107334-1

SPACER, Front, Idler

$

$

Not available

12

Simplicity 2107332-5

PLATE, Idler

$

$

Not available

13

Simplicity 2107335-8

PIN, Adjustment, Idler

$

$

Not available

13

Simplicity 0918455-7

PIN, Cotter, 5/32 x 1

$

$

Not available

14

Simplicity 2107336-6

BOLT, Adjusting Pin, Full Thread, 3/8NC x 4-1/2

$

$

Not available

14

Simplicity 0916956-6

WASHER, Flat, 3/8

$

$

Not available

15

Simplicity 2107357-2

V-BELT, Mower (Eff. Length 205")

$

$

Not available
