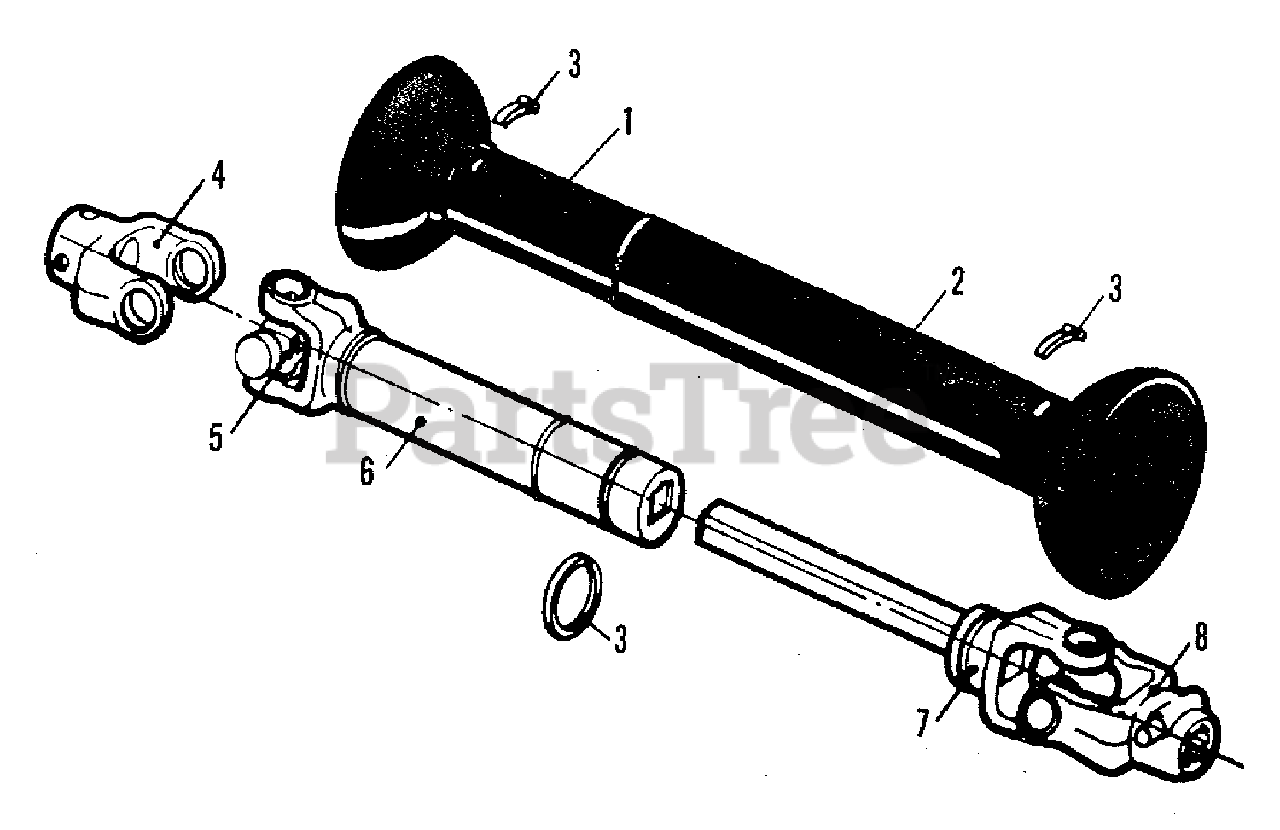

2024791 - Simplicity ST62 Snow Thrower Attachment 3-Point Hitch & Rear PTO Group (3482I136) Parts Diagram

ST62 Snow Thrower Attachment

3-Point Hitch & Rear PTO Group (3482I136) Parts Diagram

  • Title

1

Simplicity 2109786-0

SHIELD, Inner, Rear

$

$

Not available

2

Simplicity 2109787-8

SHIELD, Outer, Rear

$

$

Not available

3

Simplicity 2109788-6

BEARING KIT, Shield

$

$

Not available

4

Simplicity 2109789-4

YOKE, End, 1-1/4" Bore, 5/16" Cross Hole

$

$

Not available

5

Simplicity 2109790-2

CROSS KIT, U-Joint

$

$

Not available

6

Simplicity 2109791-0

SLEEVE ASSEMBLY, P.T.O.

$

$

Not available

7

Simplicity 2109792-8

SHAFT ASSEMBLY, P.T.O.

$

$

Not available

8

Simplicity 2109793-6

YOKE, Quick Disconnect, 1-3/8" x 68"

$

$

Not available
