2024791 - Simplicity ST62 Snow Thrower Attachment Front Mount PTO Assembly Group (3482I135) Parts Diagram

ST62 Snow Thrower Attachment

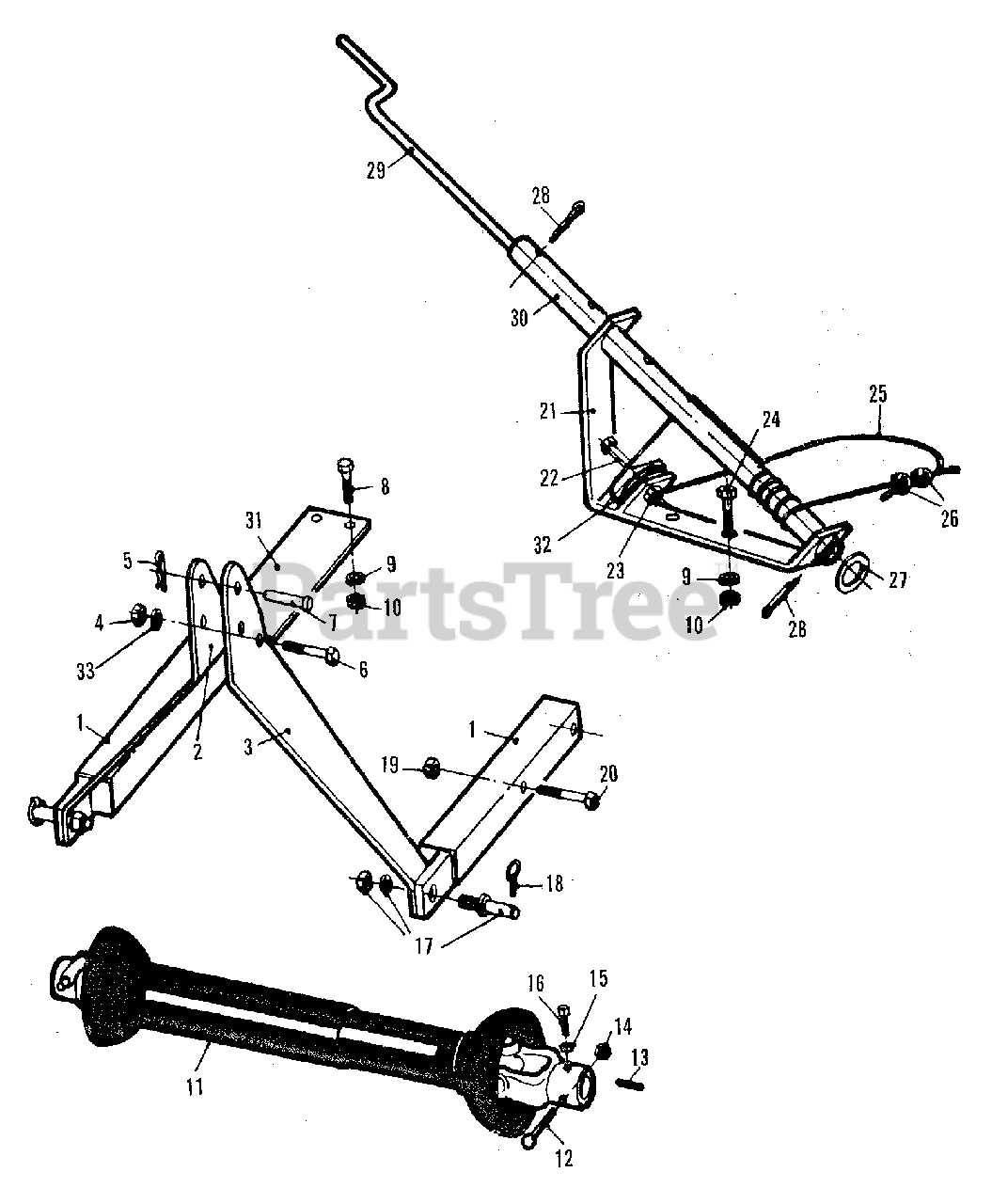

Front Mount PTO Assembly Group (3482I135) Parts Diagram

  • Title

1

Simplicity 2109751-4

ARM, 3-Point Hitch

$

$

Not available

2

Simplicity 2109752-2

SUPPORT, Triangle, Left

$

$

Not available

3

Simplicity 2109753-0

SUPPORT, Triangle, Right

$

$

Not available

4

Simplicity 0913160-8

NUT, 3/4NC

$

$

Not available

5

Simplicity 0933794-0

PIN, Hitch, 1/4

$

$

Not available

6

Simplicity 0925387-3

CAPSCREW, 3/4NC x 4

$

$

Not available

7

Simplicity 2109754-8

PIN, Hitch (Top Link) (Cat 2)

$

$

Not available

8

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

9

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

10

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

11

Simplicity 2109755-5

SHAFT ASSEMBLY, PTO, Complete

$

$

Not available

12

Simplicity 0925689-2

CAPSCREW, 5/16NC x 3

$

$

Not available

13

Simplicity 0920217-7

KEY, 1/4 x 1/4 x 1-1/2

$

$

Not available

14

Simplicity 0923422-0

LOCKNUT, 5/16NC

$

$

Not available

15

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

16

Simplicity 2109756-3

SETSCREW, Square Head, 3/8NC x 1

$

$

Not available

17

Simplicity 2109757-1

PIN, Hitch (Lower Link) (Cat. 1)

$

$

Not available

18

Simplicity 2109758-9

PIN, Quick

$

$

Not available

19

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

20

Simplicity 0925703-1

CAPSCREW, 5/8NC x 4

$

$

Not available

21

Simplicity 2109759-7

STAND, Chute Turner

$

$

Not available

22

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

23

Simplicity 0922304-1

LOCKNUT, 1/2NC

$

$

Not available

24

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

25

Simplicity 2109749-8

CABLE, Control, 1/8" x 72" Long

$

$

Not available

26

Simplicity 2109748-0

CLAMP, Cable

$

$

Not available

27

Simplicity 0919393-9

WASHER, 1"

$

$

Not available

28

Simplicity 0918469-8

PIN, Cotter, 5/16 x 2

$

$

Not available

29

Simplicity 2109760-5

CRANK

$

$

Not available

30

Simplicity 2109761-3

SLEEVE, Chut Turner

$

$

Not available

31

Simplicity 2109762-1

BAR, 3-Point Hitch, Upper

$

$

Not available

32

Simplicity 2109750-6

PULLEY, Wheel

$

$

Not available

33

Simplicity 0919332-7

WASHER

$

$

Not available
