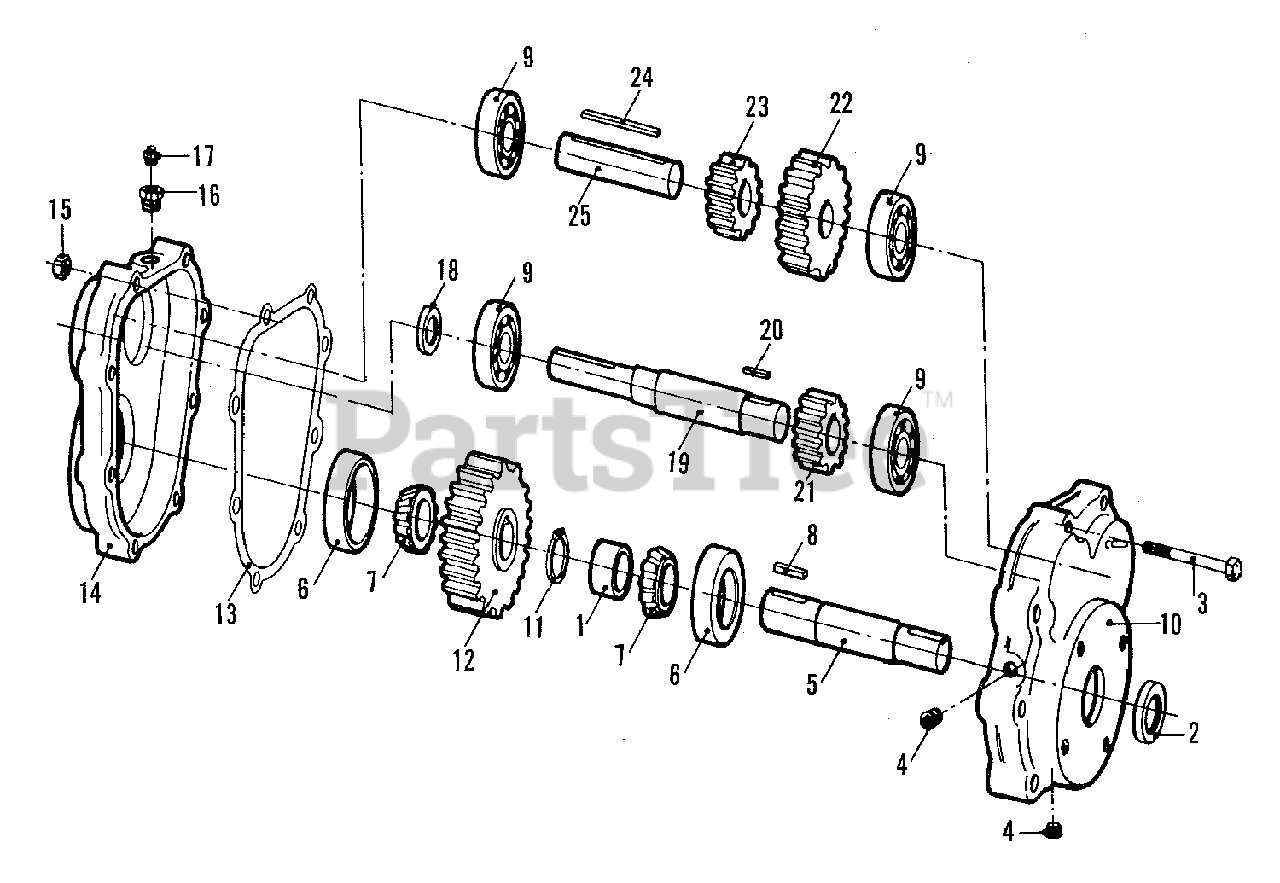

2024791 - Simplicity ST62 Snow Thrower Attachment Gear Box Group (3482I140 Parts Diagram

ST62 Snow Thrower Attachment

Gear Box Group (3482I140 Parts Diagram

  • Title

1

Simplicity 2109799-3

SPACER, Collar

$

$

Not available

2

Simplicity 2109800-9

SEAL, Output

$

$

Not available

3

Simplicity 0925689-2

CAPSCREW, 5/16NC x 3

$

$

Not available

4

Simplicity 0918887-1

PLUG, Allen Head, 3/8NPT

$

$

Not available

5

Simplicity 2109801-7

SHAFT, Output

$

$

Not available

6

Simplicity 2109802-5

CUP, Bearing

$

$

Not available

7

Simplicity 2109803-3

CONE, Bearing

$

$

Not available

8

Simplicity 2109804-1

KEY

$

$

Not available

9

Simplicity 2109805-8

BEARING, Roller Shaft

$

$

Not available

10

Simplicity 2109806-6

HOUSING, Output Shaft

$

$

Not available

11

Simplicity 2109807-4

RING, Snap, Retaining

$

$

Not available

12

Simplicity 2109808-2

GEAR, Ouput

$

$

Not available

13

Simplicity 2109809-0

SHIM, Gasket

$

$

Not available

14

Simplicity 2109810-8

HOUSING, Input Shaft

$

$

Not available

15

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

16

Simplicity 0920780-4

BUSHING, Reducer, 3/8NPT x 1/8NPT

$

$

Not available

17

Simplicity 2109811-6

BREATHER ASSEMBLY, 1/8NPT

$

$

Not available

18

Simplicity 2109812-4

SEAL, Input

$

$

Not available

19

Simplicity 2109813-2

SHAFT, Input

$

$

Not available

20

Simplicity 2109814-0

KEY

$

$

Not available

21

Simplicity 2109815-7

GEAR, Input

$

$

Not available

22

Simplicity 2109816-5

GEAR, Mid Shaft Large

$

$

Not available

23

Simplicity 2109817-3

GEAR, Mid Shaft (Small)

$

$

Not available

24

Simplicity 2109818-1

KEY, Mid Shaft

$

$

Not available

25

Simplicity 2109819-9

SHAFT, Piston (Mid)

$

$

Not available
