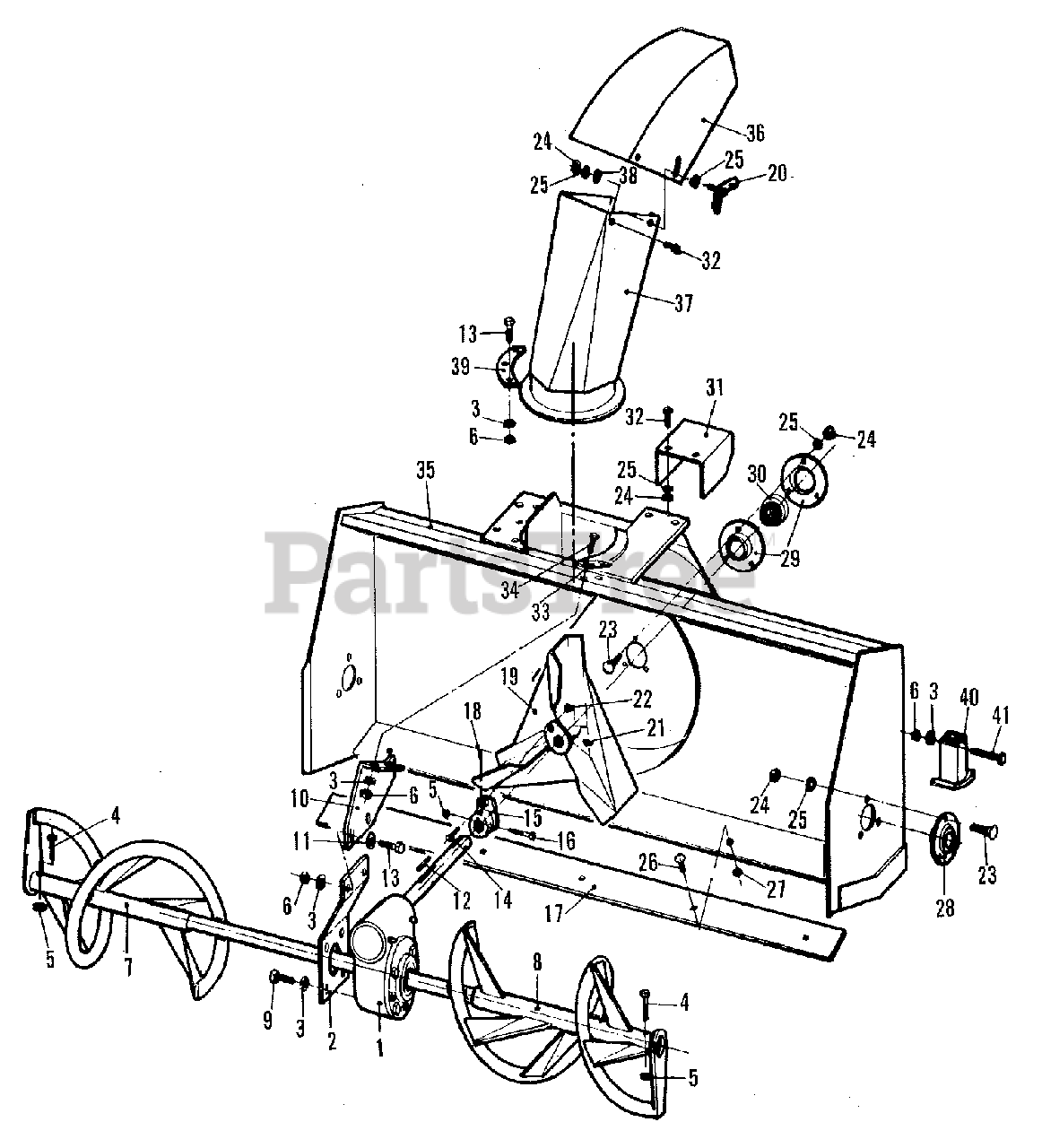

2024791 - Simplicity ST62 Snow Thrower Attachment Housing Drive Group (3482I132) Parts Diagram

ST62 Snow Thrower Attachment

Housing Drive Group (3482I132) Parts Diagram

  • Title

1

Simplicity 2109724-1

DRIVE ASSEMBLY, Worm 60"

$

$

Not available

2

Simplicity 2109725-8

BRACKET, Worm Gear Mounting

$

$

Not available

3

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

4

Simplicity 0921719-1

CAPSCREW, 5/16NC x 2-1/2

$

$

Not available

5

Simplicity 0923422-0

LOCKNUT, 5/16NC

$

$

Not available

6

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

7

Simplicity 2109726-6

AUGER, 60" L.H.

$

$

Not available

8

Simplicity 2109727-4

AUGER, 60" R.H.

$

$

Not available

9

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

10

Simplicity 2109728-2

BRACKET, Worm Gear Frame Mounting

$

$

Not available

11

Simplicity 0923912-0

WASHER, 1/2

$

$

Not available

12

Simplicity 0920217-7

KEY, 1/4 x 1/4 x 1-1/2

$

$

Not available

13

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

14

Simplicity 0921963-5

CAPSCREW, 1/4NC x 2, Gr. 5

$

$

Not available

15

Simplicity 2109729-0

PLATE, Shear

$

$

Not available

16

Simplicity 0921719-1

CAPSCREW, 5/16NC x 2-1/2

$

$

Not available

17

Simplicity 2109730-8

BLADE, Plow

$

$

Not available

18

Simplicity 0903837-3

SETSCREW, Hex Socket, Cup Point, 3/8NC x 3/4

$

$

Not available

19

Simplicity 2109823-1

BLADE, Fan

$

$

Not available

20

Simplicity 2109742-3

BOLT, Wing, Chute

$

$

Not available

21

Simplicity 0912494-2

FITTING, Grease, 1/8NPT

$

$

Not available

22

Simplicity 0923329-7

LOCKNUT, 1/4NC

$

$

Not available

23

Simplicity 0922786-9

BOLT, Carriage, 3/8NC x 1

$

$

Not available

24

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

25

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

26

Simplicity 0924801-4

BOLT, Carriage, 7/16NC x 1

$

$

Not available

27

Simplicity 0924415-3

LOCKNUT, 7/16NC

$

$

Not available

28

Simplicity 2109732-4

BEARING ASSEMBLY, 1-1/4" Pressed Steel, Complete

$

$

Not available

29

Simplicity 2109733-2

HOUSING, Bearing, 1-1/4" Pressed Steel (2 HALVES Each)

$

$

Not available

30

Simplicity 2109734-0

BEARING, Insert, 1-1/4"

$

$

Not available

31

Simplicity 2109735-7

SHIELD, Sheet, P.T.O.

$

$

Not available

32

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

33

Simplicity 2109736-5

PLATE, Reinforcement

$

$

Not available

34

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

35

Simplicity 2109737-3

HOUSING, Main

$

$

Not available

36

Simplicity 2109738-1

DELFECTOR, Chute

$

$

Not available

37

Simplicity 2109739-9

CHUTE ASSEMBLY, Snow

$

$

Not available

38

Simplicity 0917642-1

WASHER, 3/8

$

$

Not available

39

Simplicity 2109740-7

PLATE, Retainer, Chute

$

$

Not available

40

Simplicity 2109741-5

SHOE, Skid

$

$

Not available

41

Simplicity 0920990-9

CAPSCREW, 1/2NC x 3-1/2

$

$

Not available
