20319 - Toro 20" Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) Engine and Blade Assembly Parts Diagram

20" Recycler Walk-Behind Mower

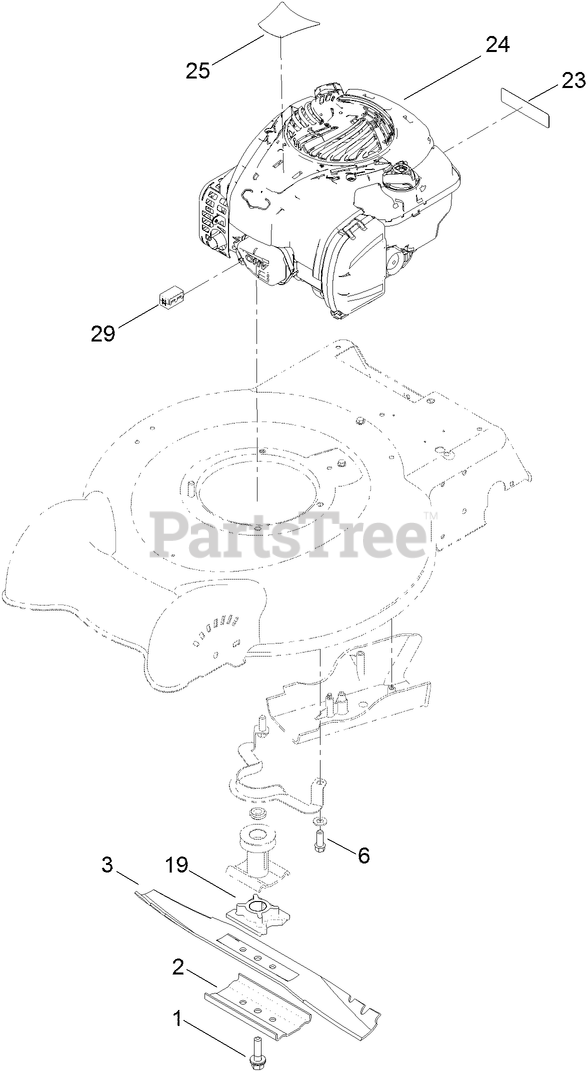

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 117-5270

BOLT-BLADE
(Superseded to 145-5695)

$3.99

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, Qty 20+

0

3

Toro 112-8841-03

See Supercession: 133-8181-03
(Superseded to 133-8181-03)

$29.99

$

In Stock, Qty 18

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

19

Toro 125-2454

RETAINER-BLADE

$25.99

$

Usually ships in 3-6 days

0

23

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

24

ENGINE-BRIGGS, 09P7020098F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

24

ENGINE-BRIGGS, 09P7020098F1

Note: Not serviced separately

$

$

Not available

25

Toro 127-0653

DECAL-ENGINE

$9.49

$

Usually ships in 3-6 days

0

29

Toro 125-5054

FERRITE-CLAMP

$

$

Not available
