20320 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Blade Assembly Parts Diagram

Walk-Behind Mower

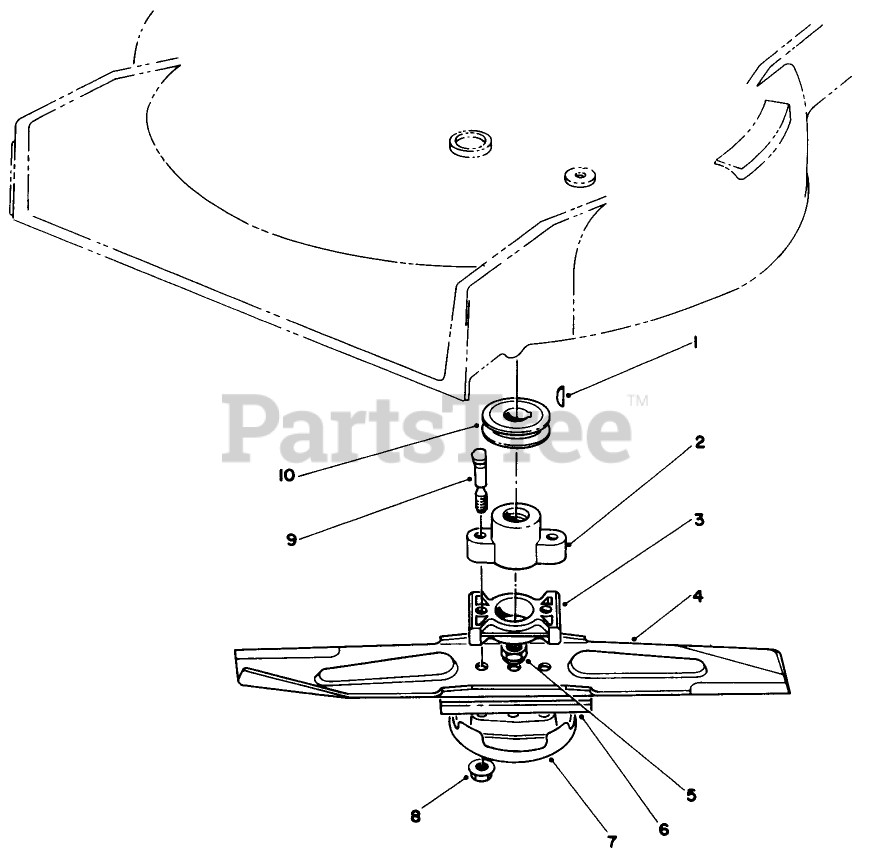

Blade Assembly Parts Diagram

  • Title

1

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 5

0

2

Toro 62-5920

HUB

$

$

Not available

3

Toro 62-4280

See Supercession: 107-4275
(Superseded to 107-4275)

$26.99

$

Usually ships in 3-6 days

0

4

Toro 14-1659

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$34.99

$

In Stock, only 3 left!

0

5

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0

6

Toro 80-0510

See Supercession: 80-0510-03
(Superseded to 80-0510-03)

$18.99

$

In Stock, Qty 5

0

7

Toro 80-2770

CUP-SCALP, ANTI

$18.99

$

In Stock, only 3 left!

0

8

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

9

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 8

0

10

Toro 62-7560

PULLEY

$50.99

$

In Stock, only 2 left!

0
