20320 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Engine Assembly Parts Diagram

Walk-Behind Mower

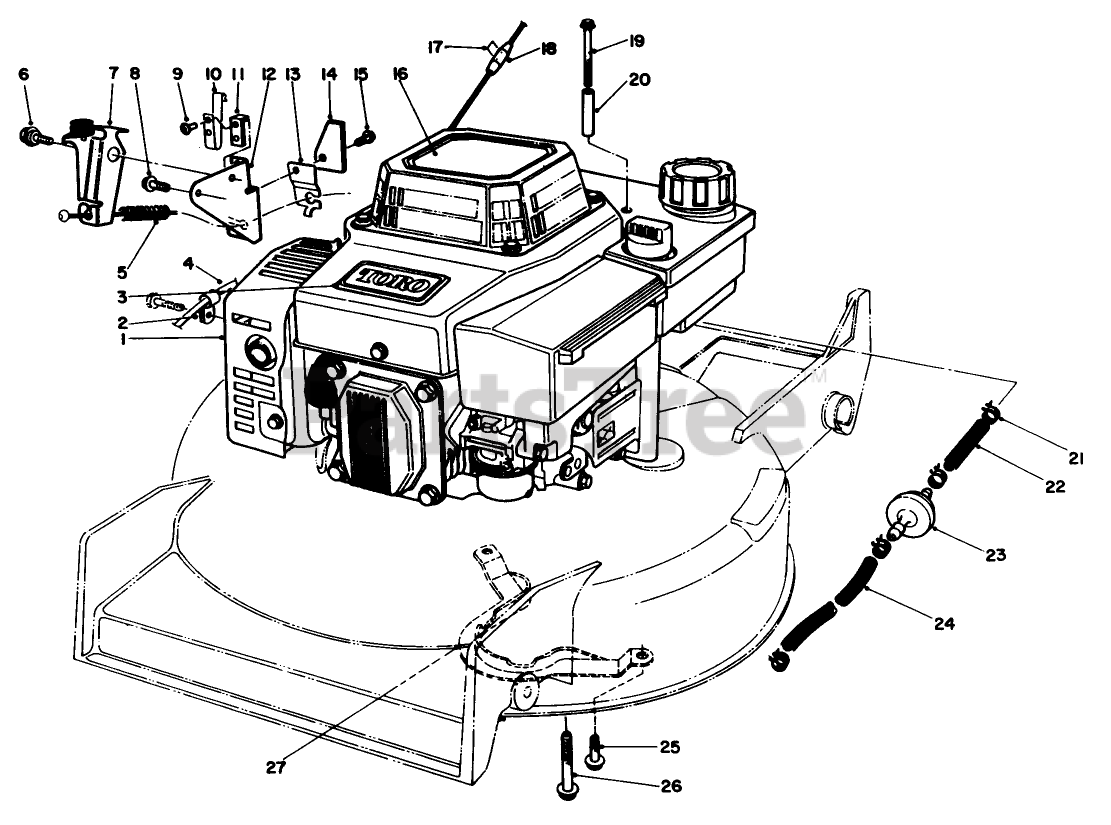

Engine Assembly Parts Diagram

  • Title

1

Toro 72-4144

DISCONTINUED

$

$

Not available

2

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

3

Toro 46-8290

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

4

Toro 55-7901

DISCONTINUED

$

$

Not available

5

Toro 66-5370

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

6

Toro 56-6190

See Supercession: 92-9698
(Superseded to 92-9698)

$5.99

$

In Stock, only 2 left!

0

7

Toro 66-5380

BRAKE PLATE ASM

$86.99

$

Usually ships in 3-6 days

0

8

Toro 46-0790

DISCONTINUED

$

$

Not available

9

Toro 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

10

Toro 60-9010

STRAP-GROUND

$15.99

$

In Stock, only 2 left!

0

11

Toro 77-5260

STRAP-INSULATING

$2.99

$

Usually ships in 3-6 days

0

12

Toro 53-4620

See Supercession: 14-6009
(Superseded to 14-6009)

$

$

Not available

13

Toro 53-4610

CABLE CLAMP

$

$

Not available

14

Toro 53-4690

STOP-GROUND STRAP

$4.99

$

Usually ships in 3-6 days

0

15

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

16

Toro 66-0490

DISCONTINUED

$

$

Not available

17

Staple

$

$

Not available

18

Toro 81-3980

STOP

$

$

Not available

19

Toro 56-6610

THRD FORMING SCREW

$5.49

$

Usually ships in 3-6 days

0

20

Toro 57-3830

TUBULAR SPACER

$6.49

$

Usually ships in 3-6 days

0

21

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 6

0

22

Toro 51-3211

HOSE-FUEL

$7.99

$

In Stock, only 2 left!

0

23

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 8

0

24

Toro 51-3214

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

25

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

26

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

27

Toro 66-0570

See Supercession: 66-0570-03
(Superseded to 66-0570-03)

$15.99

$

In Stock, only 1 left!

0

Toro 12-4599

See Supercession: 14-6009
(Superseded to 14-6009)

$

$

Not available

Toro 75-9850

OIL DRAIN TUBE

$

$

Not available
