20321 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Engine Assembly Parts Diagram

Walk-Behind Mower

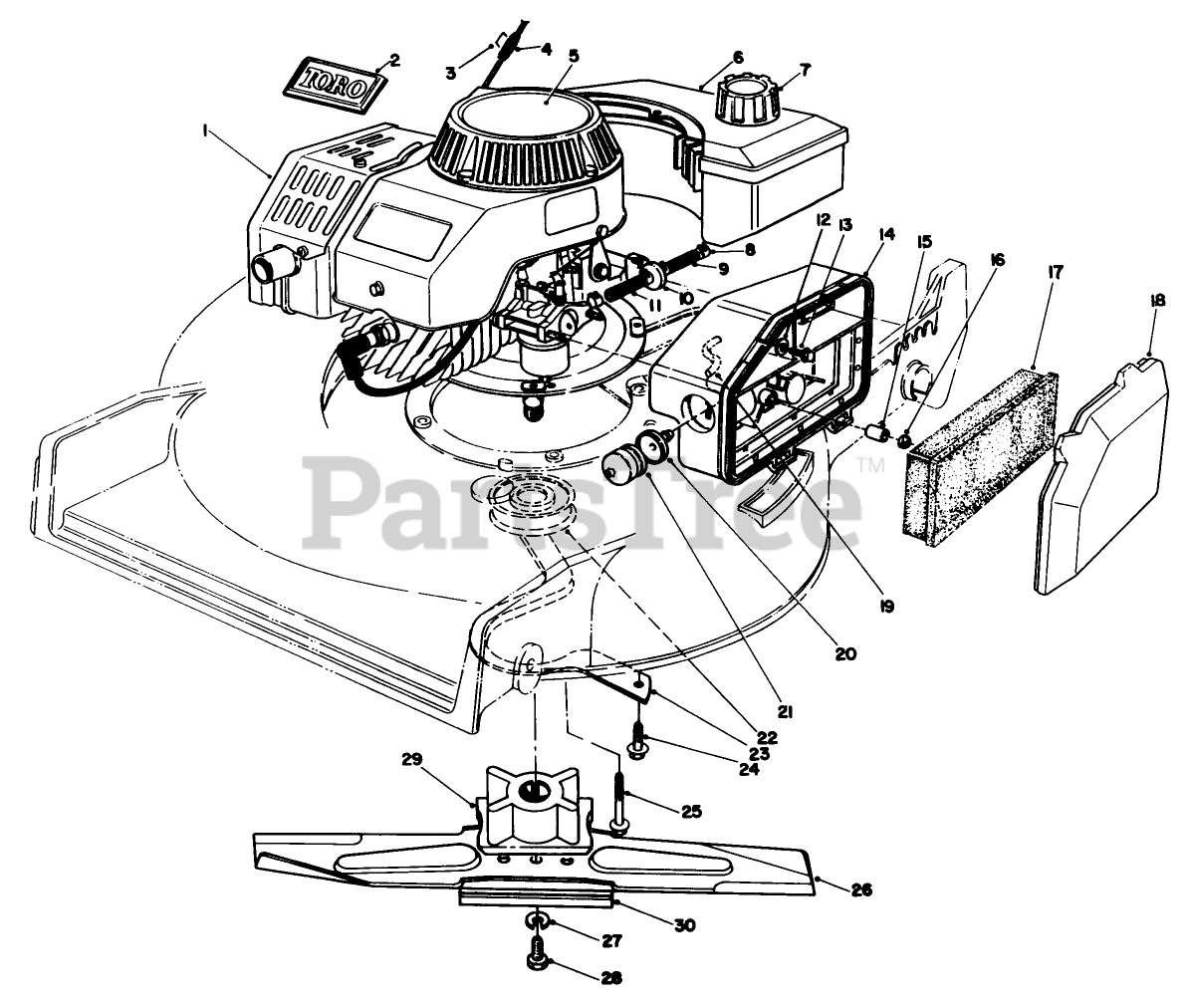

Engine Assembly Parts Diagram

  • Title

1

Engine (Complete)

$

$

Not available

2

Toro 46-8290

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Staple

Note: Obtain Locally

$

$

Not available

4

Toro 81-3980

STOP

$

$

Not available

5

Toro 66-0510

DISCONTINUED

$

$

Not available

6

Toro 81-0042

See Supercession: 99-5263
(Superseded to 99-5263)

$

$

Not available

7

Toro 55-3575

GAS CAP ASM

$19.99

$

In Stock, only 2 left!

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 6

0

9

Toro 51-3216

HOSE-FUEL

$5.99

$

In Stock, only 3 left!

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 10

0

11

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

13

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

14

Toro 63-9330

DISCONTINUED

$

$

Not available

15

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

16

Toro 50-7180

NUT

$6.99

$

In Stock, only 3 left!

0

17

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 3 left!

0

18

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

19

Toro 44-3172

HOSE-PRIMER F

$6.99

$

In Stock, Qty 7

0

20

Toro 44-2750

BODY-PRIMER

$10.99

$

In Stock, Qty 20+

0

21

Toro 66-7460

BULB-PRIMER

$7.49

$

In Stock, Qty 20+

0

22

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

23

Toro 66-0570

See Supercession: 66-0570-03
(Superseded to 66-0570-03)

$15.99

$

In Stock, only 1 left!

0

24

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

25

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

26

Toro 75-9420

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$34.99

$

In Stock, only 4 left!

0

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

28

Toro 26-0670

SCREW-BLADE

$

$

Not available

29

Toro 62-7540

BLADE RETAINER

$107.99

$

Usually ships in 3-6 days

0

30

Toro 80-0510

See Supercession: 80-0510-03
(Superseded to 80-0510-03)

$18.99

$

In Stock, Qty 5

0
