20328 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

Walk-Behind Mower

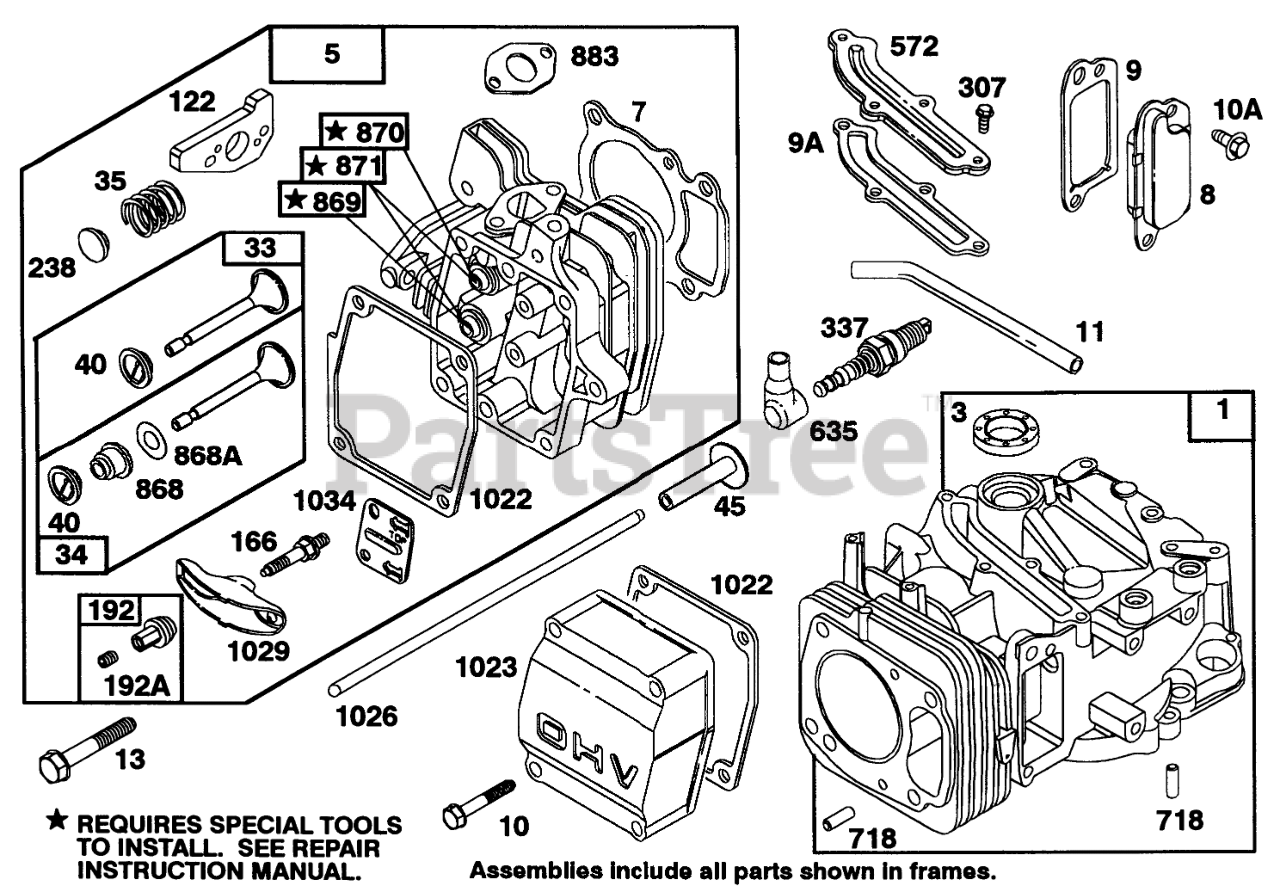

ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

  • Title

1

Briggs & Stratton 493787

Cylinder Assy

$198.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 493783.

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 493785

Head-Cylinder

$89.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272314

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 493783.

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 494489

Breather Assy
(Superseded to 590395)

$14.99

$

In Stock, Qty 11

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-Part No. 493783.

$5.49

$

In Stock, Qty 11

0

9A

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Gasket Set-Part No. 493783.

$6.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94576

Screw-Hex Head (valve cover)

$4.99

$

Usually ships in 2-12 days

0

10A

Briggs & Stratton 94650

Screw-Hex.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231685

Sheave
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94547

Screw-Hex.
(Superseded to 690912)

$3.99

$

In Stock, Qty 15

0

33

Briggs & Stratton 493778

Valve-Exhaust

$21.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 493777

Valve-Intake

$42.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262716

Spring-Valve

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 262552

Retainer-Spring

$6.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 262679

Tappet-Valve
(Superseded to 690977)

$7.99

$

In Stock, only 3 left!

0

122

Briggs & Stratton 493669

Adapter Assy

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$

$

Not available

166

Briggs & Stratton 94555

Stud-Rocker Arm
(Superseded to 691095)

$7.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 492160

Adjuster-Valve
(Superseded to 691986)

$11.99

$

In Stock, only 3 left!

0

192A

Briggs & Stratton 810068

Screw-Set
(Superseded to 691986)

$11.99

$

In Stock, only 3 left!

0

238

Briggs & Stratton 262499

Cap-Valve

$3.49

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

572

Briggs & Stratton 224328

Cover-Breather
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 15

0

718

Briggs & Stratton 230192

Pin-Dowel
(Superseded to 690959)

$6.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 493661

Seal Assy-Valve
(Superseded to 495773)

Note: Included in Gasket Set-Part No. 493783.

$11.99

$

Usually ships in 2-12 days

0

868A

Briggs & Stratton 272376

Seal-Valve
(Superseded to 495773)

Note: Included in Gasket Set-Part No. 493783.

$11.99

$

Usually ships in 2-12 days

0

869

Toro 262728

Seat-Valve (Intake)

$

$

Currently unavailable

870

Toro 262727

Seat-Valve (Exhaust)

$

$

Currently unavailable

871

Briggs & Stratton 262718

Bushing-Guide

$11.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272313

Gasket-Exhaust

Note: Included in Gasket Set-Part No. 493783.

$4.49

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272323

Gasket-Rocker Cover

Note: Included in Gasket Set-Part No. 493783.

$9.49

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 213864

Cover-Valve
(Superseded to 214108)

$25.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 493527

Rod-Push

$39.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 224111

Arm-Rocker

$8.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 224400

Guide-Push Rod

$7.99

$

Usually ships in 2-12 days

0
