20328 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Engine Briggs Stratton Model 97772-0112-01 2 Parts Diagram

Walk-Behind Mower

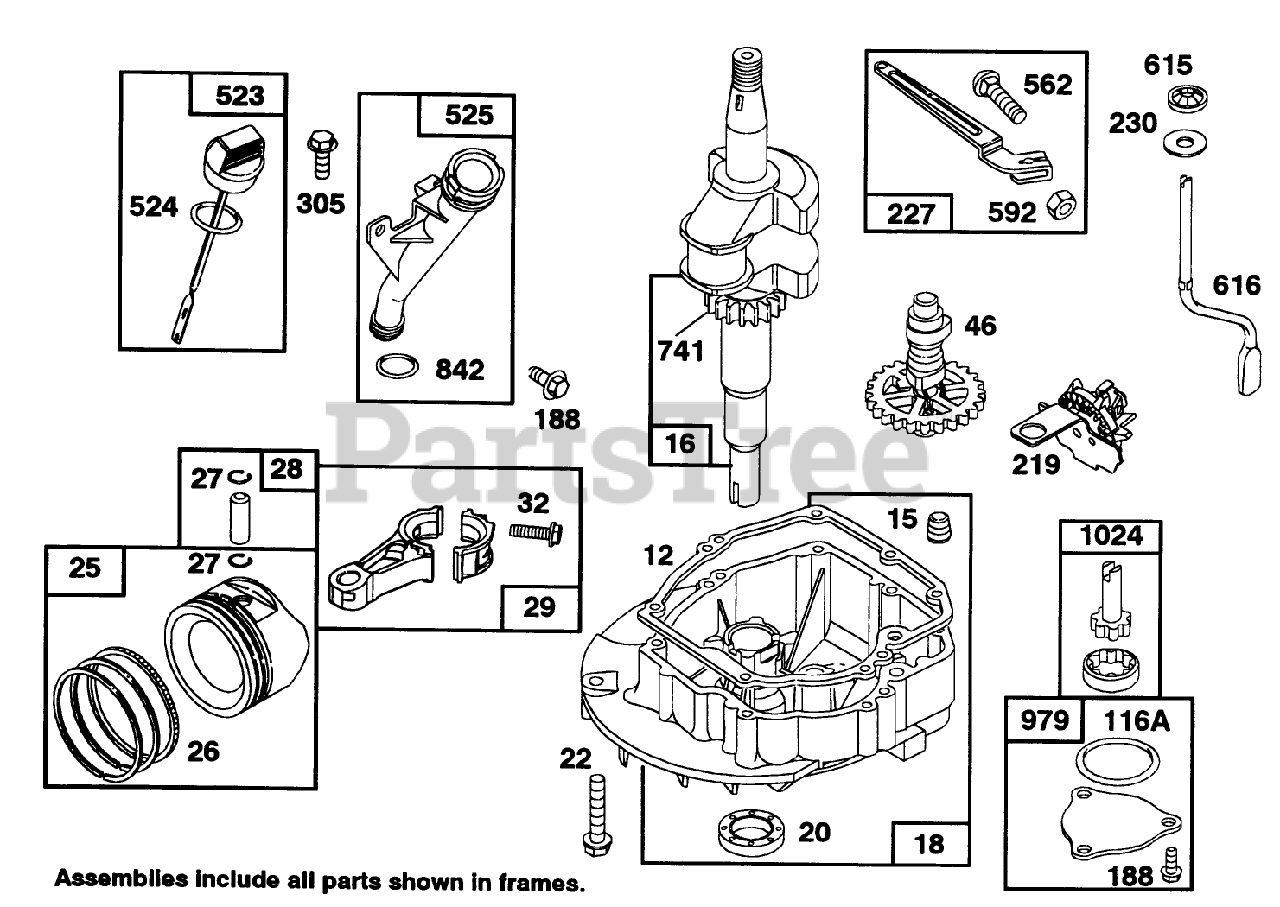

Engine Briggs Stratton Model 97772-0112-01 2 Parts Diagram

  • Title

12

Toro 272324

Gasket-Engine Base

Note: Included in Gasket Set-Part No. 493783.

$

$

Currently unavailable

15

Toro 94613

Plug-Pipe

$

$

Currently unavailable

16

Toro 493726

Crankshaft Note: Order Part No. 94388 For Timing Gear Key

$

$

Currently unavailable

18

Toro 493901

Base-Engine

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 493783.

$

$

Currently unavailable

22

Toro 94220

Screw-Hex. Head

$

$

Currently unavailable

25

Toro 493781

Piston Assy (Std)

$

$

Currently unavailable

26

Toro 493782

Ring Set (Std)

$

$

Currently unavailable

27

Toro 262514

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 492765

Pin Assy-Piston

$

$

Currently unavailable

29

Toro 493049

Rod-Connecting

$

$

Currently unavailable

32

Toro 94572

Screw-Connecting Rod

$

$

Currently unavailable

46

Toro 493310

Gear-Cam

$

$

Currently unavailable

116A

Toro 280891

O-Ring

Note: Included in Gasket Set-Part No. 493783.

$

$

Currently unavailable

188

Toro 94513

Screw-Sem

$

$

Currently unavailable

219

Toro 493719

Gear-Governor

$

$

Currently unavailable

227

Toro 492349

Lever Ass-y. Gov.

$

$

Currently unavailable

230

Toro 67072

Washer

$

$

Currently unavailable

305

Toro 94582

Screw-Hex.

$

$

Currently unavailable

523

Toro 493601

Dipstick

$

$

Currently unavailable

524

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-Part No. 493783.

$

$

Currently unavailable

525

Toro 494194

Tube-Oil Filler

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

615

Toro 94474

Pushnut

$

$

Currently unavailable

616

Toro 262578

Crank-Govemor

$

$

Currently unavailable

741

Toro 262598

Gear-Timing

$

$

Currently unavailable

842

Toro 280966

O-Ring Seal

Note: Included in Gasket Set-Part No. 493783.

$

$

Currently unavailable

979

Toro 492756

Cover-Oil Pump

$

$

Currently unavailable

1024

Toro 493884

Pump-Oil

$

$

Currently unavailable
