20328 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

Walk-Behind Mower

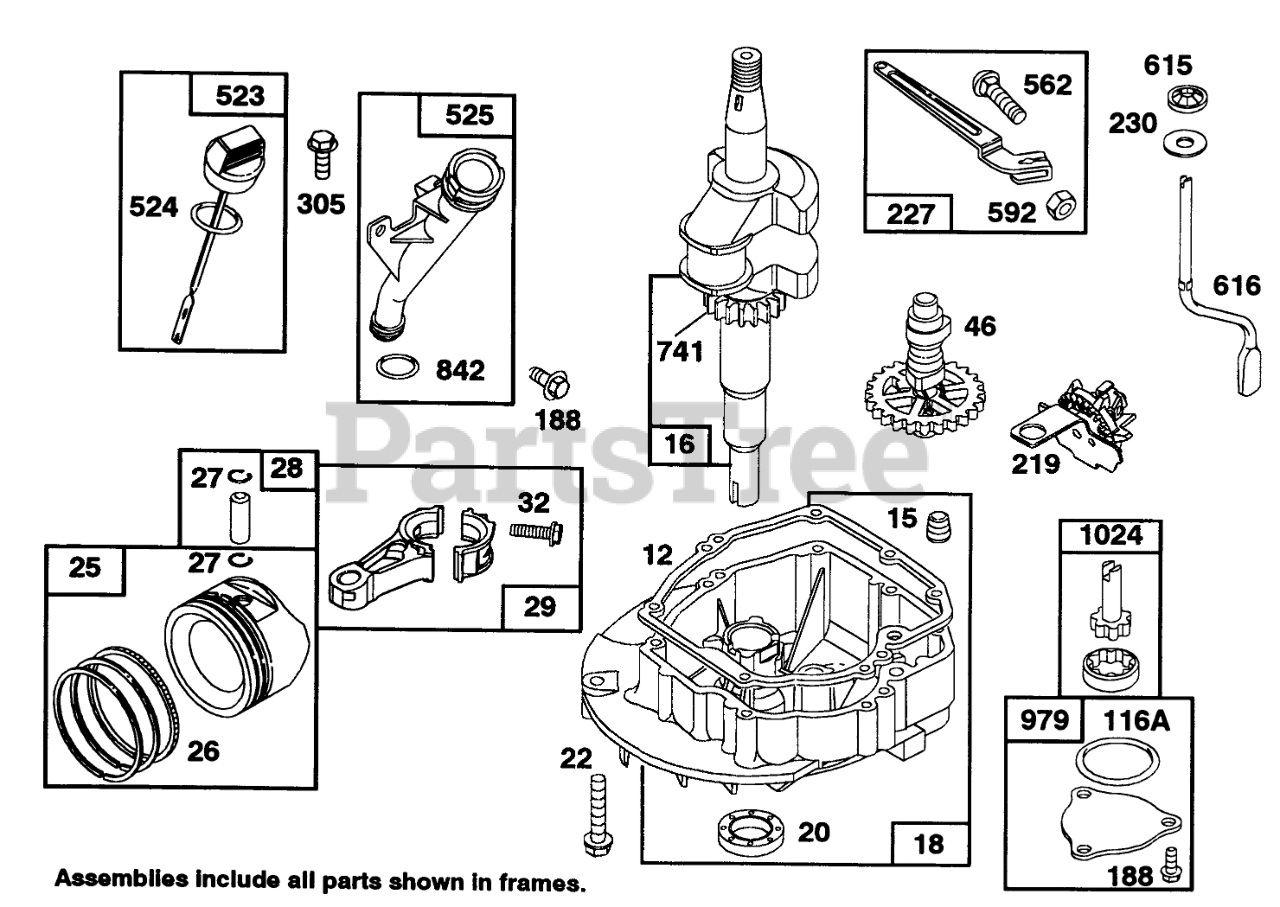

ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

  • Title

12

Briggs & Stratton 272324

Gasket-Engine Base

Note: Included in Gasket Set-Part No. 493783.

$11.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94613

Plug-Pipe
(Superseded to 691680)

$5.99

$

In Stock, only 3 left!

0

16

Briggs & Stratton 493726

Crankshaft Note: Order Part No. 94388 For Timing Gear Key

$142.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 493901

Base-Engine

$72.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-Part No. 493783.

$7.99

$

In Stock, Qty 14

0

22

Briggs & Stratton 94220

Screw-Hex. Head
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 493781

Piston Assy (Std)

$73.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493782

Ring Set (Std)

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 262514

Lock-Piston Pin

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 492765

Pin Assy-Piston

$7.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 493049

Rod-Connecting

$29.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94572

Screw-Connecting Rod

$3.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 493310

Gear-Cam

$69.99

$

Usually ships in 2-12 days

0

116A

Briggs & Stratton 280891

O-Ring

Note: Included in Gasket Set-Part No. 493783.

$9.49

$

In Stock, only 1 left!

0

188

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 493719

Gear-Governor

$14.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 492349

Lever Ass-y. Gov.
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$3.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94582

Screw-Hex.

$3.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 493601

Dipstick
(Superseded to 692953)

$9.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 493783.

$5.49

$

In Stock, Qty 10

0

525

Briggs & Stratton 494194

Tube-Oil Filler

$22.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

615

Briggs & Stratton 94474

Pushnut
(Superseded to 690340)

$4.49

$

In Stock, only 1 left!

0

616

Briggs & Stratton 262578

Crank-Govemor
(Superseded to 698801)

$10.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 493783.

$4.99

$

In Stock, Qty 6

0

979

Briggs & Stratton 492756

Cover-Oil Pump

$7.49

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 493884

Pump-Oil

$27.99

$

Usually ships in 2-12 days

0
