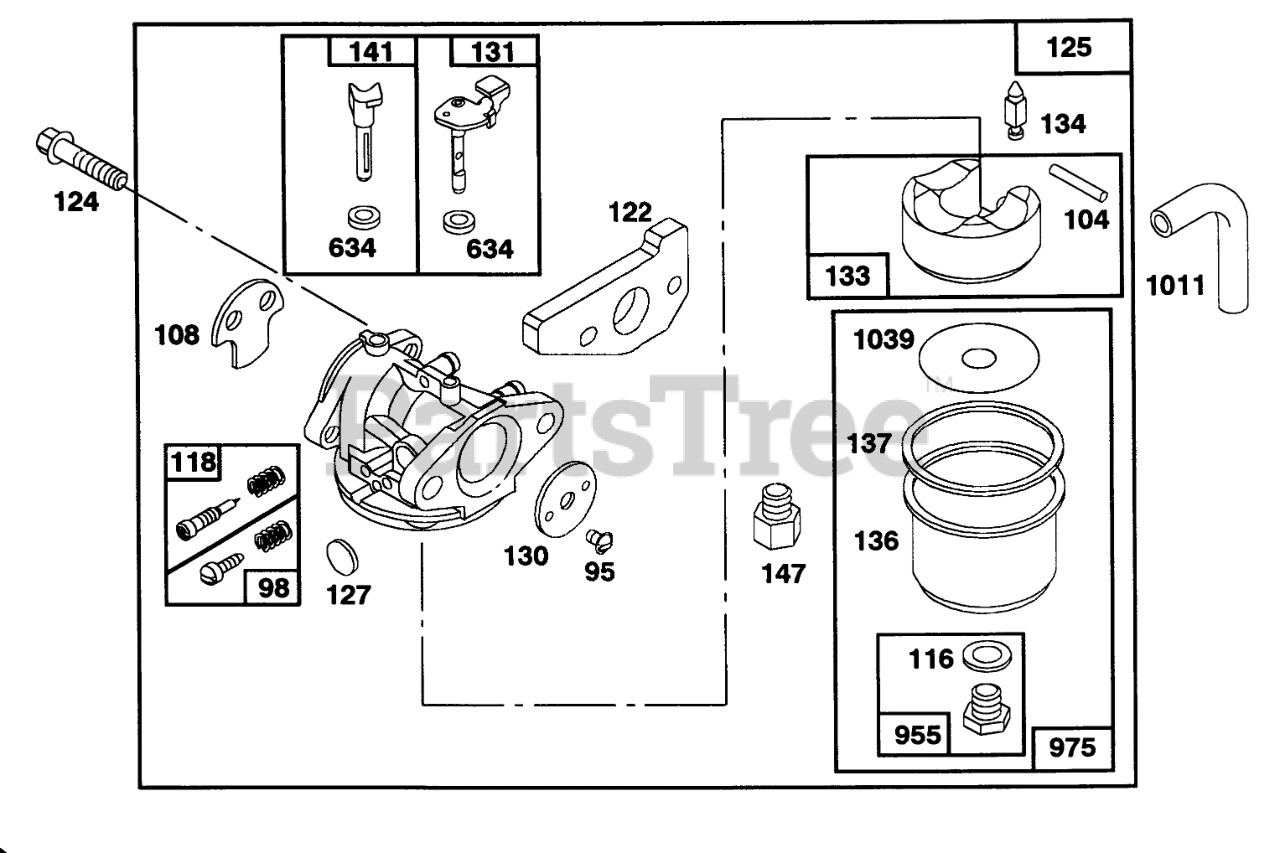

20328 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 97772-0112-01 Parts Diagram

  • Title

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 398185

Idle Speed Kit

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$3.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 224449

Valve-Choke
(Superseded to 692567)

$9.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Part No. 490937.

$6.49

$

In Stock, Qty 20+

0

116

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$6.49

$

In Stock, Qty 20+

0

118

Briggs & Stratton 493765

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$14.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 493765

Valve-Needle

Note: Included in Carburetor Gasket Set-Part No. 490937.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 493669

Adapter Assy

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

122

Briggs & Stratton 493669

Adapter Assy

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$

$

Not available

124

Briggs & Stratton 94584

Screw-Hex Head (carb mtg)
(Superseded to 691129)

$3.99

$

In Stock, Qty 8

0

125

Toro 493887

Carburetor Assy

$

$

Currently unavailable

127

Toro 223949

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$

$

Currently unavailable

127

Toro 223949

Plug-Welch

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

130

Briggs & Stratton 223470

Valve-Throttle
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

Shaft and Lever

$16.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, only 4 left!

0

134

Briggs & Stratton 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$6.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$6.49

$

In Stock, Qty 20+

0

136

Briggs & Stratton 224458

Bowl-Fuel

$5.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 280492

Float Bowl Gasket
(Superseded to 693981)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 280492

Float Bowl Gasket
(Superseded to 693981)

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$3.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 493899

Shaft-Choke

$

$

Not available

147

Toro 493883

Adapter-Jet Note: For High Altitude Jet, Order Part No. 494236.

$

$

Currently unavailable

634

Briggs & Stratton 280566

Washer-Seal
(Superseded to 691321)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$4.99

$

In Stock, only 2 left!

0

634

Briggs & Stratton 280566

Washer-Seal
(Superseded to 691321)

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$4.99

$

In Stock, only 2 left!

0

955

Briggs & Stratton 493924

Screw-Hex Head

$6.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493902

Bowl Assy-Carburetor

$18.99

$

Usually ships in 2-12 days

0

1011

Briggs & Stratton 280786

Tube-Vent

$8.99

$

Usually ships in 2-12 days

0

1039

Briggs & Stratton 281086

Limiter-Float

Note: Included in Carburetor Gasket Set-Part No. 490937.

$10.99

$

Usually ships in 2-12 days

0

1039

Briggs & Stratton 281086

Limiter-Float

Note: Included in Carburetor Overhaul Kit-Part No. 493917.

$10.99

$

Usually ships in 2-12 days

0
