20328 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Engine Briggs Stratton Model 97772-0112-01 8 Parts Diagram

Walk-Behind Mower

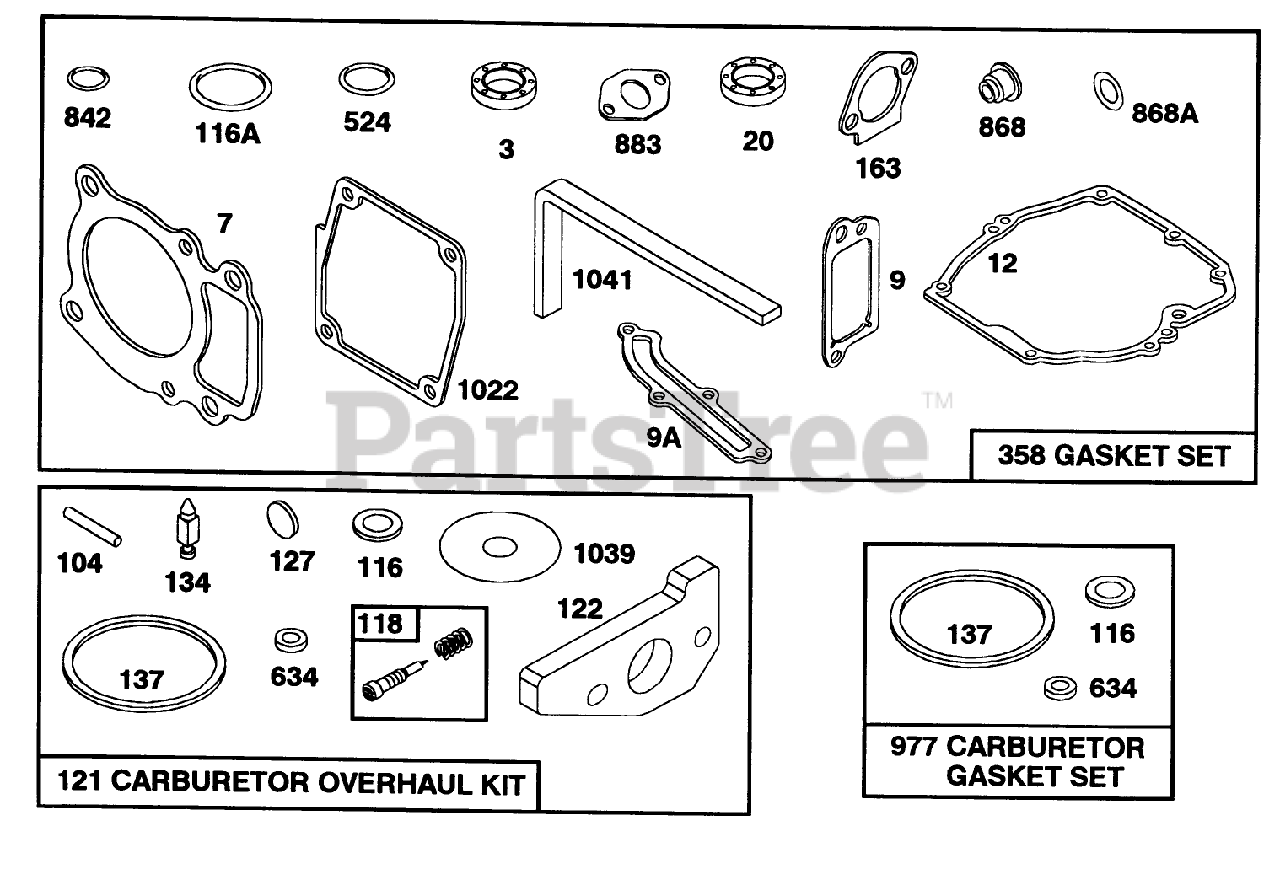

Engine Briggs Stratton Model 97772-0112-01 8 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

7

Toro 272314

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

9A

Toro 272238

Gasket-Breather

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

12

Toro 272324

Gasket-Engine Base

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

104

Toro 231371

Spring
(Superseded to 701979)

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Not available

104

Toro 231371

Spring
(Superseded to 701979)

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Not available

116

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

116

Toro 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

116A

Toro 280891

O-Ring

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

118

Toro 493765

Valve-Needle

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

118

Toro 493765

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

121

Toro 493917

Overhaul Kit-Carburetor

$

$

Currently unavailable

122

Toro 493669

Adapter Assy

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

122

Toro 493669

Adapter Assy

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

127

Toro 223949

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

127

Toro 223949

Plug-Welch

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

137

Toro 280492

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

137

Toro 280492

Float Bowl Gasket

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

163

Toro 272325

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

358

Toro 493783

Gasket Set

$

$

Currently unavailable

524

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

634

Toro 280566

Washer-Seal

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

634

Toro 280566

Washer-Seal

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

842

Toro 280966

O-Ring Seal

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

868

Toro 493661

Seal Assy-Valve

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

868A

Toro 272376

Seal-Valve

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

883

Toro 272313

Gasket-Exhaust

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

977

Toro 490937

Gasket Set-Carb

$

$

Currently unavailable

1022

Toro 272323

Gasket-Rocker Cover

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable

1039

Toro 281086

Limiter-Float

Note: Included in Carburetor Overhaul Kit-Part No 493917

$

$

Currently unavailable

1039

Toro 281086

Limiter-Float

Note: Included in Carburetor Gasket Set-Part No 490937

$

$

Currently unavailable

1041

Toro 272383

Seal-Foam

Note: Included in Gasket Set-Part No 493783

$

$

Currently unavailable
