2033 - Jonsered Chainsaw (1998-03) CLUTCH OIL PUMP Parts Diagram

Chainsaw

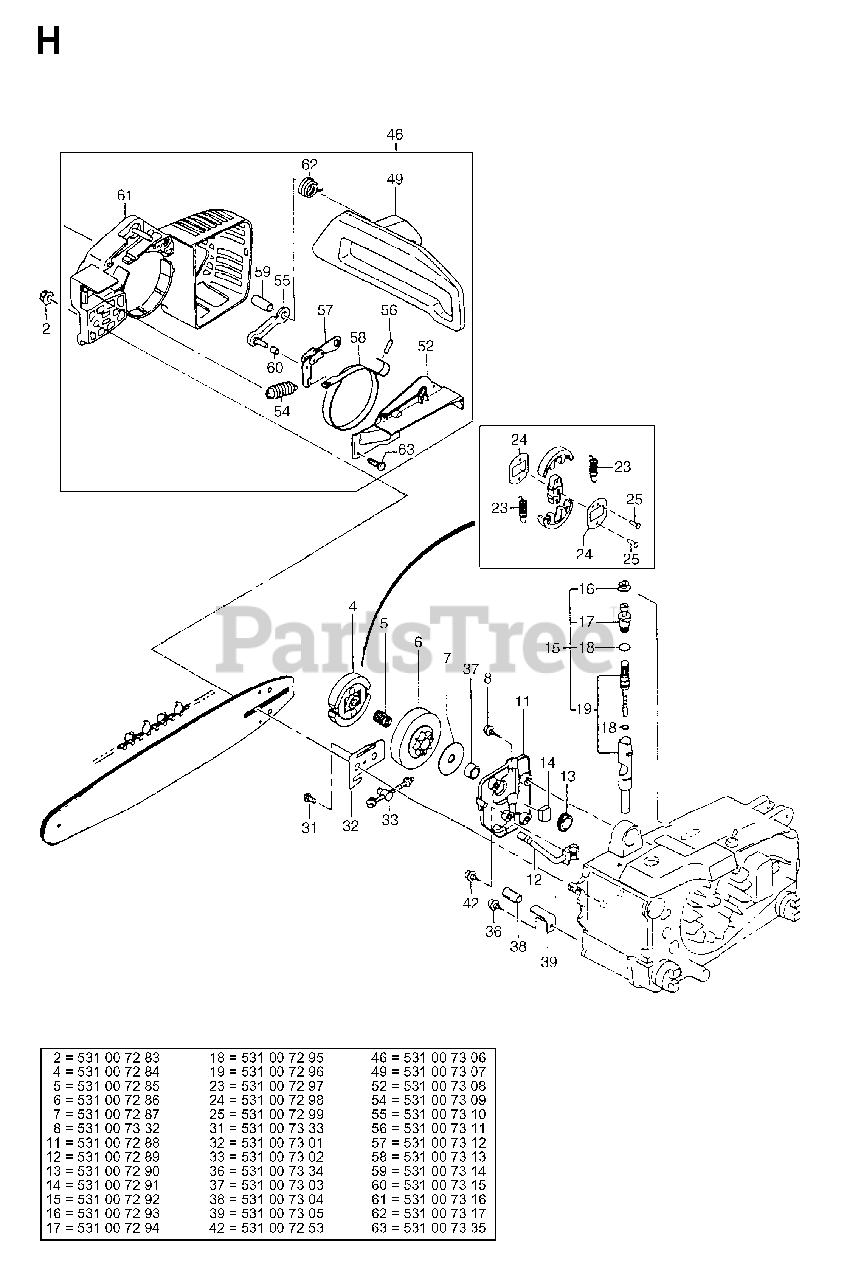

CLUTCH OIL PUMP Parts Diagram

  • Title

2

Jonsered 531007283

NUT

$

$

Not available

4

Jonsered 531007284

CLUTCH

$

$

Not available

5

Jonsered 531007285

NEEDLE BEARING

$

$

Not available

6

Jonsered 531007286

CLUTCH DRUM

$

$

Not available

7

Jonsered 531007287

WASHER

$

$

Not available

8

Jonsered 531007332

SCREW

$2.49

$

Usually ships in 3-10 days

0

11

Jonsered 531007288

COVER

$

$

Not available

12

Jonsered 531007289

PIPE

$

$

Not available

13

Jonsered 531007290

PLUG

$

$

Not available

14

Jonsered 531007291

PROTECTOR

$

$

Not available

15

Jonsered 531007292

OIL PUMP

$

$

Not available

16

Jonsered 531007293

BRACKET

$

$

Not available

17

Jonsered 531007294

SCREW

$

$

Not available

18

Jonsered 531007295

O-RING

$

$

Not available

19

Jonsered 531007296

PUMP PISTON

$

$

Not available

23

Jonsered 531007297

SPRING

$

$

Not available

24

Jonsered 531007298

GASKET

$12.68

$

Usually ships in 3-10 days

0

25

Jonsered 531007299

SCREW

$

$

Not available

31

Jonsered 531007333

SCREW

$

$

Not available

32

Jonsered 531007301

PLATE

$

$

Not available

33

Jonsered 531007302

SCREW

$

$

Not available

36

Jonsered 531007334

SCREW

$

$

Not available

37

Jonsered 531007303

SLEEVE

$

$

Not available

38

Jonsered 531007304

PROTECTOR

$

$

Not available

39

Jonsered 531007305

CHAIN CATCHER

$

$

Not available

42

Jonsered 531007253

SCREW

$

$

Not available

46

Jonsered 531007306

CHAIN BRAKE

$

$

Not available

49

Jonsered 531007307

HANDLE

$

$

Not available

52

Jonsered 531007308

PROTECTOR

$13.84

$

Usually ships in 3-10 days

0

54

Jonsered 531007309

SPRING

$

$

Not available

55

Jonsered 531007310

BRAKE LEVER

$

$

Not available

56

Jonsered 531007311

PIN

$

$

Not available

57

Jonsered 531007312

BRAKE LEVER

$

$

Not available

58

Jonsered 531007313

BRAKE BAND

$

$

Not available

59

Jonsered 531007314

SLEEVE

$

$

Not available

60

Jonsered 531007315

SLEEVE

$

$

Not available

61

Jonsered 531007316

COVER

$

$

Not available

62

Jonsered 531007317

SPRING

$

$

Not available

63

Jonsered 531007335

SCREW

$

$

Not available
