2033 - Jonsered Chainsaw (1998-03) CRANKCASE Parts Diagram

Chainsaw

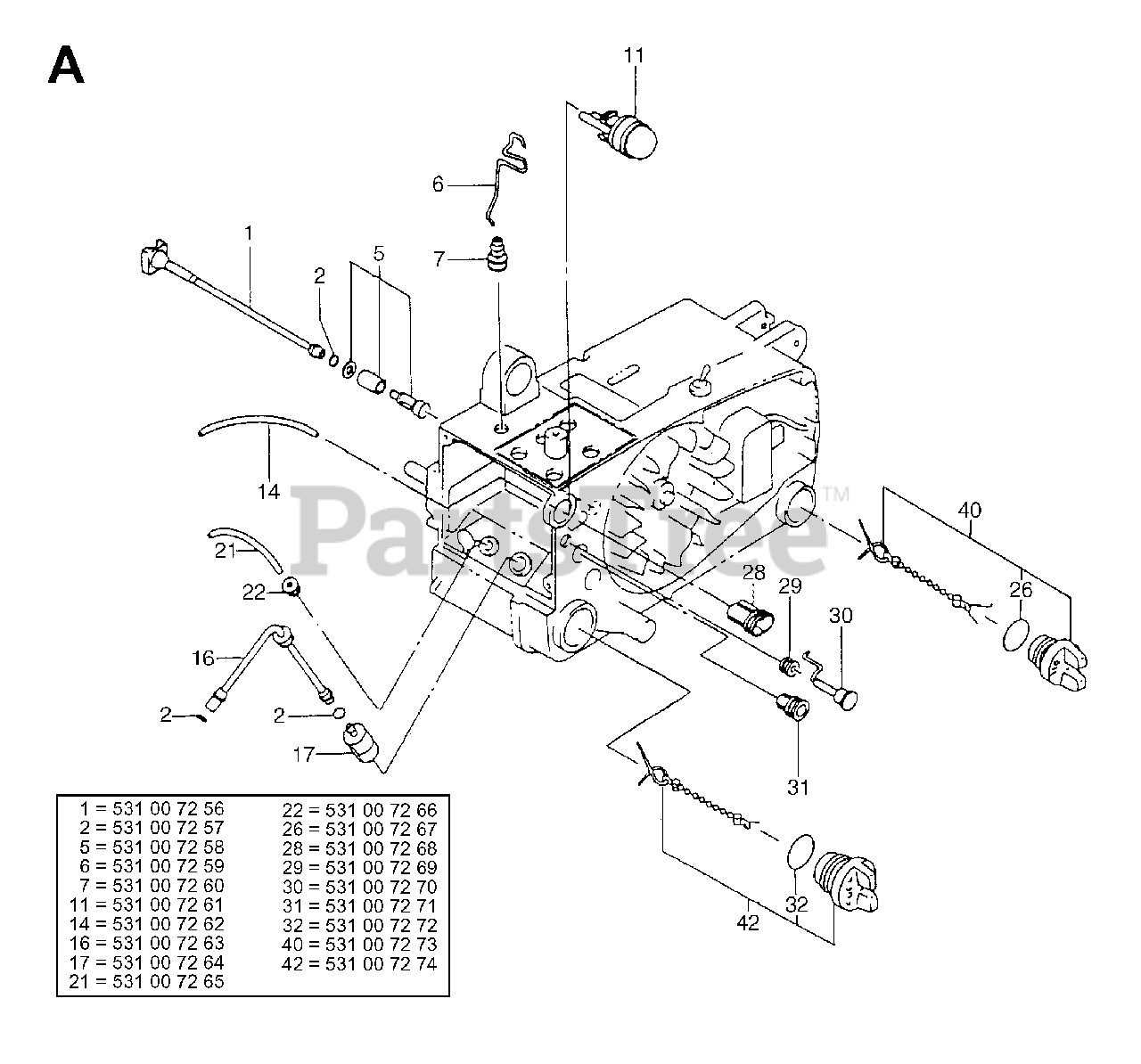

CRANKCASE Parts Diagram

  • Title

1

Jonsered 531007256

PIPE

$

$

Not available

2

Jonsered 531007257

CLIP

$

$

Not available

5

Jonsered 531007258

FILTER

$

$

Not available

6

Jonsered 531007259

THROTTLE WIRE

$

$

Not available

7

Jonsered 531007260

PLUG

$

$

Not available

11

Jonsered 531007261

PUMP

$

$

Not available

14

Jonsered 531007262

HOSE

$

$

Not available

16

Jonsered 531007263

PIPE

$

$

Not available

17

Jonsered 531007264

FILTER

$

$

Not available

21

Jonsered 531007265

HOSE

$

$

Not available

22

Jonsered 531007266

PLUG

$

$

Not available

26

Jonsered 531007267

O-RING

$

$

Not available

28

Jonsered 531007268

PLUG

$

$

Not available

29

Jonsered 531007269

GROMMET

$

$

Not available

30

Jonsered 531007270

CHOKE CONTROL

$

$

Not available

31

Jonsered 531007271

GROMMET

$

$

Not available

32

Jonsered 531007272

O-RING

$

$

Not available

40

Jonsered 531007273

TANK CAP

$

$

Not available

42

Jonsered 531007274

TANK CAP

$

$

Not available
