2033 - Jonsered Chainsaw (1998-03) CYLINDER PISTON Parts Diagram

Chainsaw

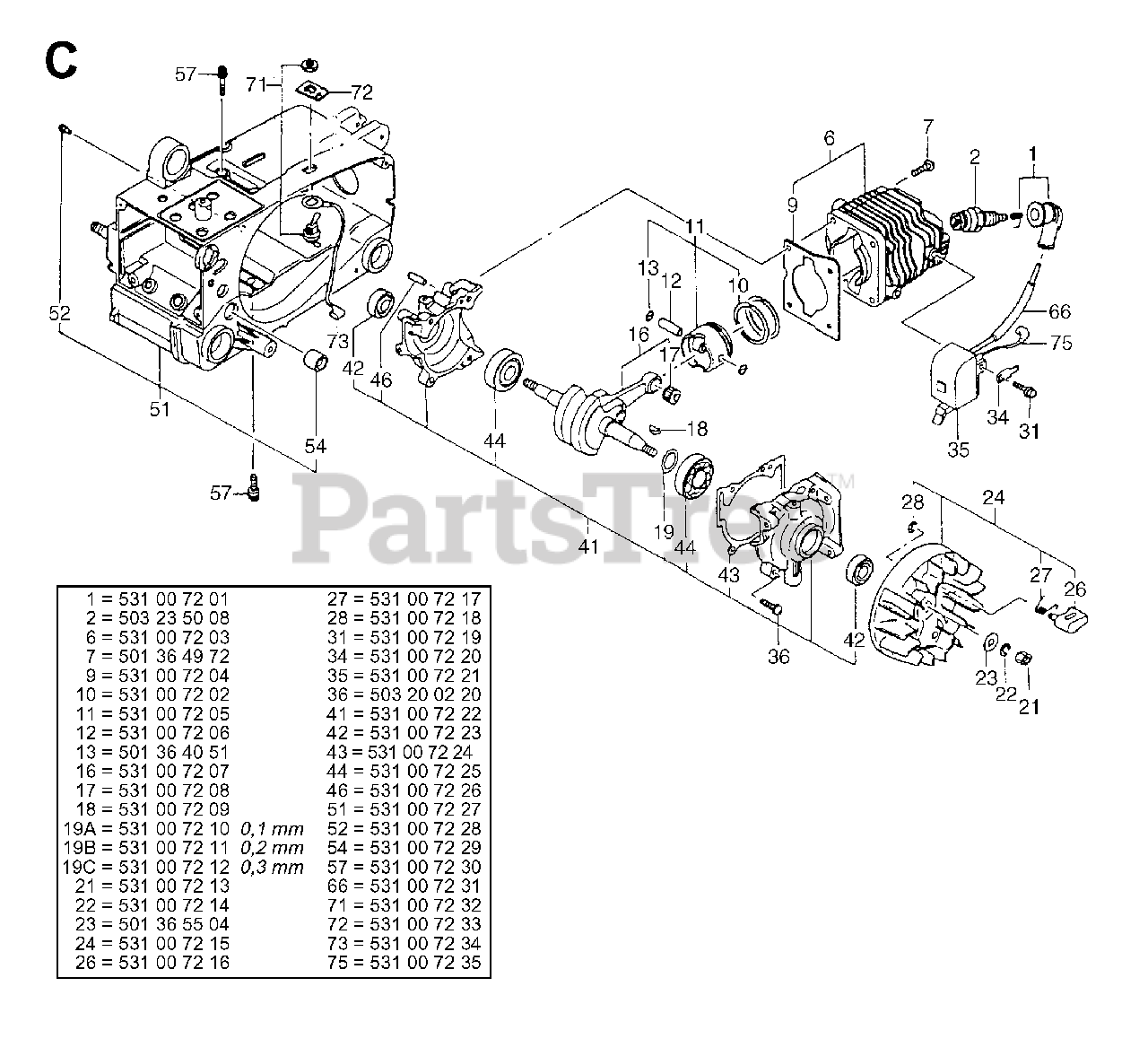

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 531007201

SPARK PLUG CONNECTION

$

$

Not available

2

Jonsered 503235008

SPARK PLUG CJ8 NLA

$

$

Not available

6

Jonsered 531007203

CYLINDER

$

$

Not available

7

Jonsered 501364972

No Description Available

$

$

Not available

9

Jonsered 531007204

GASKET

$

$

Not available

10

Jonsered 531007202

PISTON RING

$

$

Not available

11

Jonsered 531007205

PISTON

$

$

Not available

12

Jonsered 531007206

PISTON BOLT

$

$

Not available

13

Jonsered 501364051

No Description Available

$

$

Not available

16

Jonsered 531007207

CRANKSHAFT

$384.27

$

Usually ships in 3-10 days

0

17

Jonsered 531007208

NEEDLE BEARING

$

$

Not available

18

Jonsered 531007209

KEY

$

$

Not available

19A

Jonsered 531007210

WASHER

Note: 0 1 MM

$

$

Not available

19B

Jonsered 531007211

WASHER

Note: 0 2 MM

$

$

Not available

19C

Jonsered 531007212

WASHER

Note: 0 3 MM

$

$

Not available

21

Jonsered 531007213

NUT

$

$

Not available

22

Jonsered 531007214

WASHER

$

$

Not available

23

Jonsered 501365504

No Description Available

$

$

Not available

24

Jonsered 531007215

FLYWHEEL

$

$

Not available

26

Jonsered 531007216

PAWL

$

$

Not available

27

Jonsered 531007217

SPRING

$

$

Not available

28

Jonsered 531007218

RETAINING RING

$

$

Not available

31

Jonsered 531007219

SCREW

$2.49

$

Usually ships in 3-10 days

0

34

Jonsered 531007220

WASHER

$

$

Not available

35

Jonsered 531007221

IGNITION COIL

$

$

Not available

36

Jonsered 503200220

No Description Available

$6.49

$

In Stock, Qty 20+

0

41

Jonsered 531007222

CRANKCASE

$

$

Not available

42

Jonsered 531007223

BEARING

$

$

Not available

43

Jonsered 531007224

GASKET

$

$

Not available

44

Jonsered 531007225

BEARING

$

$

Not available

46

Jonsered 531007226

ROLLER

$

$

Not available

51

Jonsered 531007227

CRANKCASE

$

$

Not available

52

Jonsered 531007228

VALVE

$

$

Not available

54

Jonsered 531007229

COVER

$

$

Not available

57

Jonsered 531007230

SCREW

$

$

Not available

66

Jonsered 531007231

PROTECTOR

$

$

Not available

71

Jonsered 531007232

STOP SWITCH

$

$

Not available

72

Jonsered 531007233

PLATE

$3.49

$

Usually ships in 3-10 days

0

73

Jonsered 531007234

CABLE

$

$

Not available

75

Jonsered 531007235

CABLE

$

$

Not available
