20331 - Toro 22" Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Engine and Blade Assembly Parts Diagram

22" Recycler Walk-Behind Mower

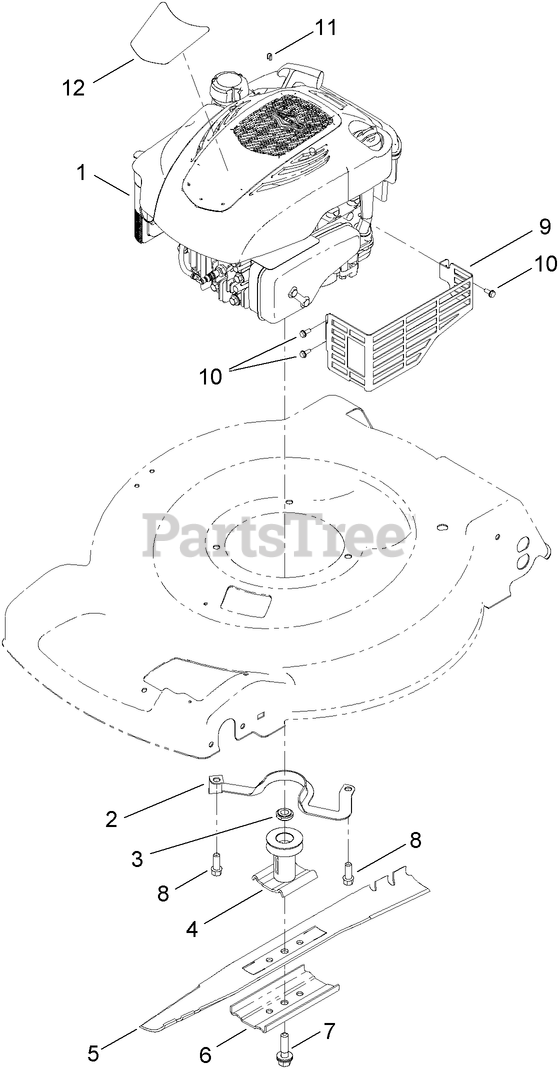

Engine and Blade Assembly Parts Diagram

  • Title

1

ENGINE-BRIGGS, 128M02-3425-B1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 128M02-3425-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 105-3031-03

GUIDE-BELT

$14.99

$

In Stock, Qty 9

0

3

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

4

Toro 106-3987

DRIVER-BLADE

$35.99

$

In Stock, only 3 left!

0

5

Toro 108-9764-03

See Supercession: 131-4547-03
(Superseded to 131-4547-03)

$23.99

$

In Stock, Qty 20+

0

6

Toro 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, only 2 left!

0

7

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

8

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

9

Toro 104-7577-03

SHIELD-MUFFLER

$28.99

$

In Stock, only 2 left!

0

10

SCREW-TAPTITE

Note: Not serviced separately

$

$

Not available

11

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

12

Toro 121-2371

DECAL-SHROUD

$6.49

$

In Stock, only 2 left!

0
