20332 - Toro 22" Recycler Walk-Behind Mower (SN: 316000001 - 316044999) (2016) UPPER HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

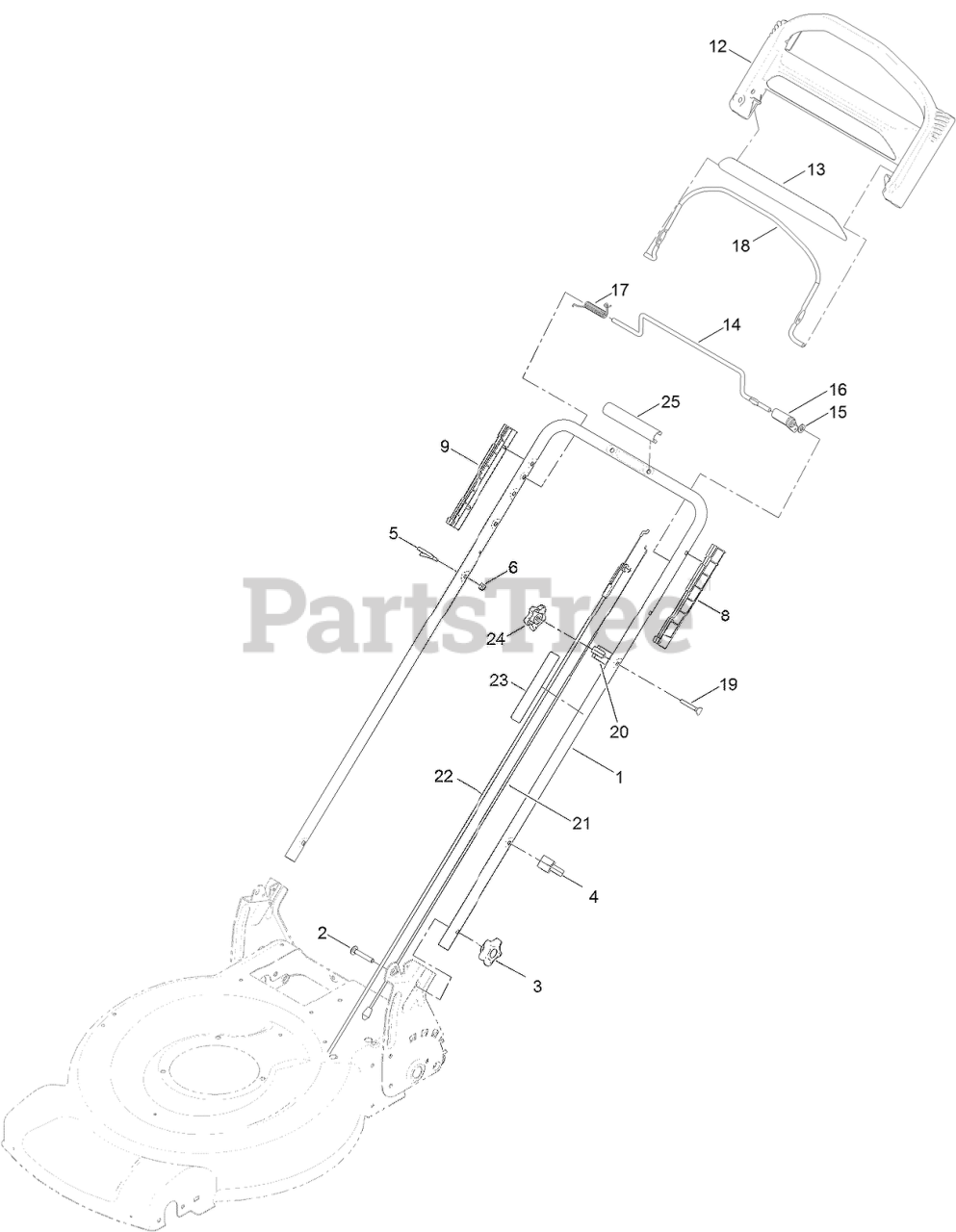

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 130-6715-05

HANDLE

$188.99

$

In Stock, only 4 left!

0

2

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 7

0

3

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

4

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

5

Toro 86-9671

GUIDE-ROPE

$4.99

$

In Stock, Qty 10

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 18

0

8

Toro 105-6842

GUIDE-LH

$9.49

$

In Stock, only 1 left!

0

9

Toro 105-6841

GUIDE-RH

$9.49

$

In Stock, Qty 5

0

12

Toro 104-8678

HANDLE-CONTROL

$90.99

$

In Stock, Qty 6

0

13

Toro 117-1019

DECAL

$10.99

$

In Stock, only 2 left!

0

14

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$18.99

$

In Stock, only 2 left!

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 99-1589

LEVER-TRACTION

$8.49

$

In Stock, Qty 14

0

17

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 20+

0

18

Toro 131-0880-03

BAIL-BRAKE

$27.99

$

In Stock, only 3 left!

0

19

Toro 95-4453

SCREW

$3.99

$

In Stock, Qty 20+

0

20

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$3.49

$

In Stock, Qty 20+

0

21

Toro 115-8435

CABLE-TRACTION

$38.99

$

In Stock, Qty 8

0

22

Toro 115-8437

CABLE-BRAKE

$39.99

$

In Stock, only 4 left!

0

23

Toro 132-4470

DECAL-TRACTION, ADJUST

$2.49

$

In Stock, only 2 left!

0

24

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.99

$

In Stock, Qty 8

0

25

Toro 99-6339

COVER-HANDLE

$12.99

$

Usually ships in 3-6 days

0
