20333 - Toro 22" Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Engine and Valve Gaskets and Carburetor Overhaul Kit Briggs and Stratton 126T02-0256-B1 Parts Diagram

22" Recycler Walk-Behind Mower

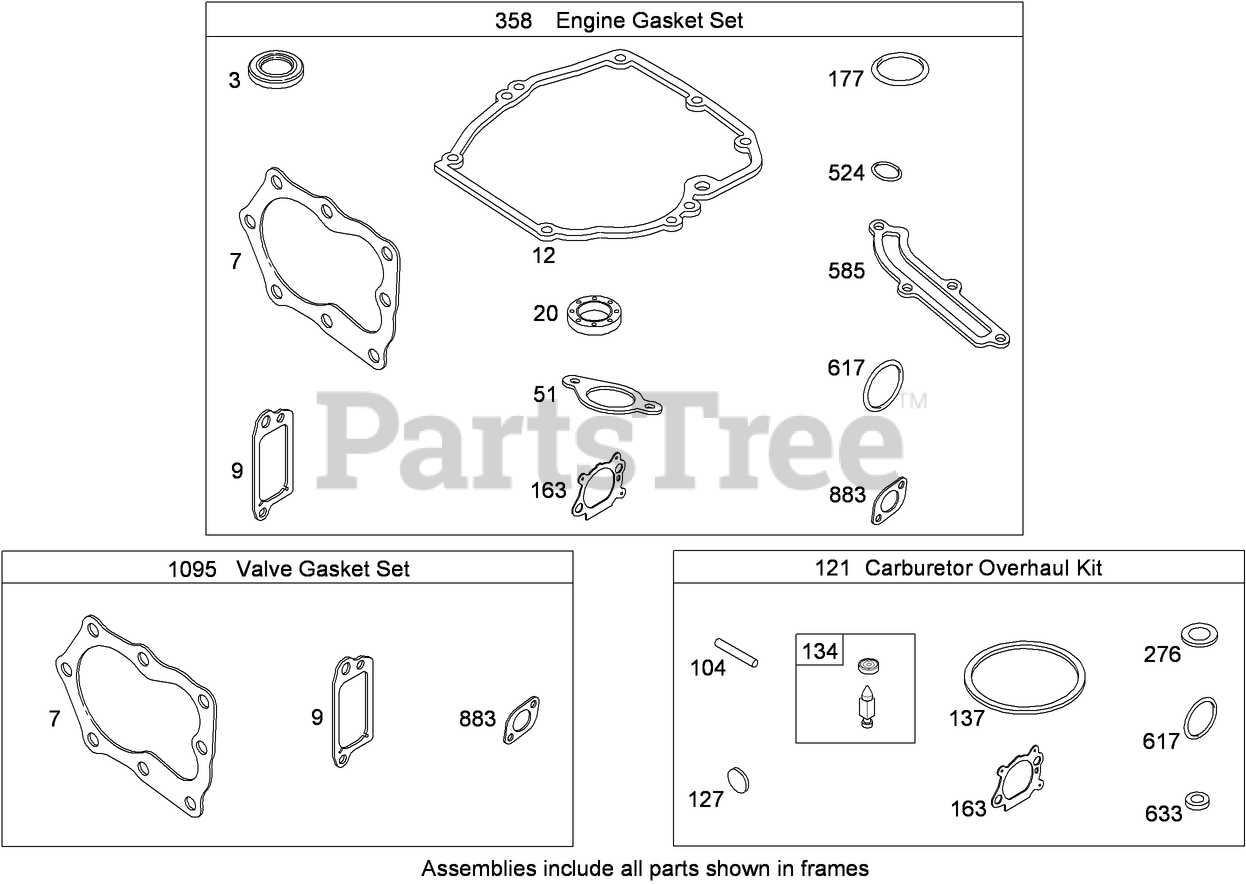

Engine and Valve Gaskets and Carburetor Overhaul Kit Briggs and Stratton 126T02-0256-B1 Parts Diagram

  • Title

3

Toro 299819s

Seal-Oil

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

3

Toro 299819s

Seal-Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Toro 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

7

Toro 692249

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Toro 692249

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

9

Toro 699472

Gasket-Breather

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

9

Toro 699472

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

9

Toro 699472

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

12

Toro 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

12

Toro 692232

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Toro 399781s

Seal-Oil (PTO Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Toro 399781s

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51

Toro 794306

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51

Toro 794306

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

121

Toro 498260

Carburetor Overhaul Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Toro 694468

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Toro 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Toro 796610

Gasket-Bowl, Float (Used After Date Code 08120100)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Toro 796610

Gasket-Bowl, Float (Used After Date Code 08120100)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Toro 795629

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Toro 795629

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

163

Toro 795629

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

177

Toro 691031

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

177

Toro 691031

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

358

Toro 497316

Engine Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

524

Toro 692296

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

524

Toro 692296

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

585

Toro 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

585

Toro 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

883

Toro 691881

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

883

Toro 691881

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

883

Toro 691881

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

1095

Toro 498528

Valve Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
