20333 - Toro 22" Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) GOVERNOR AND CONTROLS ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

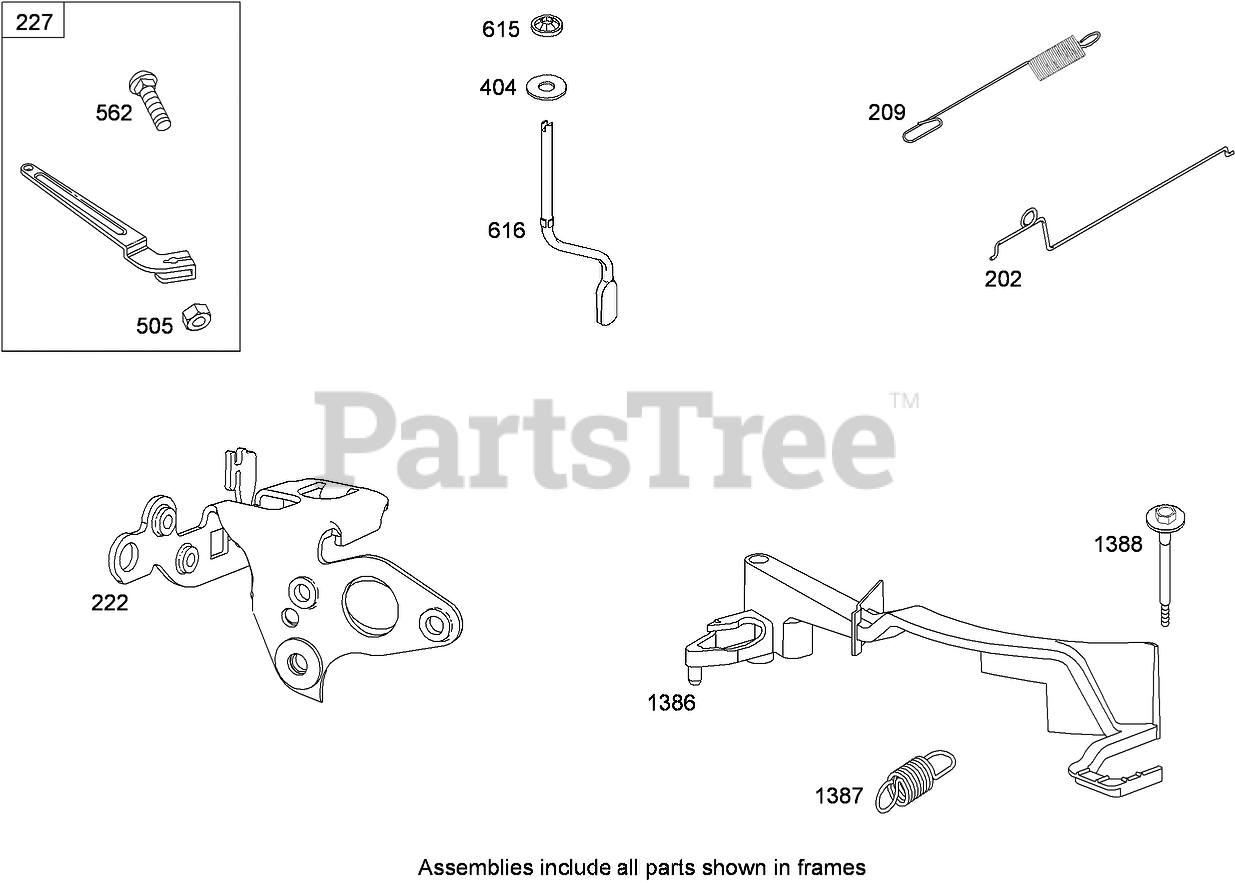

GOVERNOR AND CONTROLS ASSEMBLY Parts Diagram

  • Title

202

Briggs & Stratton 691829

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 2 left!

0

209

Briggs & Stratton 691292

Spring-Governor (Black)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 15

0

222

Briggs & Stratton 795937

Bracket-Control
(Superseded to 593582)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690783

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690272

Washer (Governor Crank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 11

0

562

Briggs & Stratton 691119

Screw (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 19

0

615

Briggs & Stratton 690340

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 1 left!

0

616

Briggs & Stratton 698801

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

1386

Briggs & Stratton 790848

Vane-Air

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 3 left!

0

1387

Briggs & Stratton 790849

Spring-Vane, Air

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

1388

Briggs & Stratton 790850

Screw (Air Vane)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0
