20337 - Toro 22" Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014)

22" Recycler Walk-Behind Mower

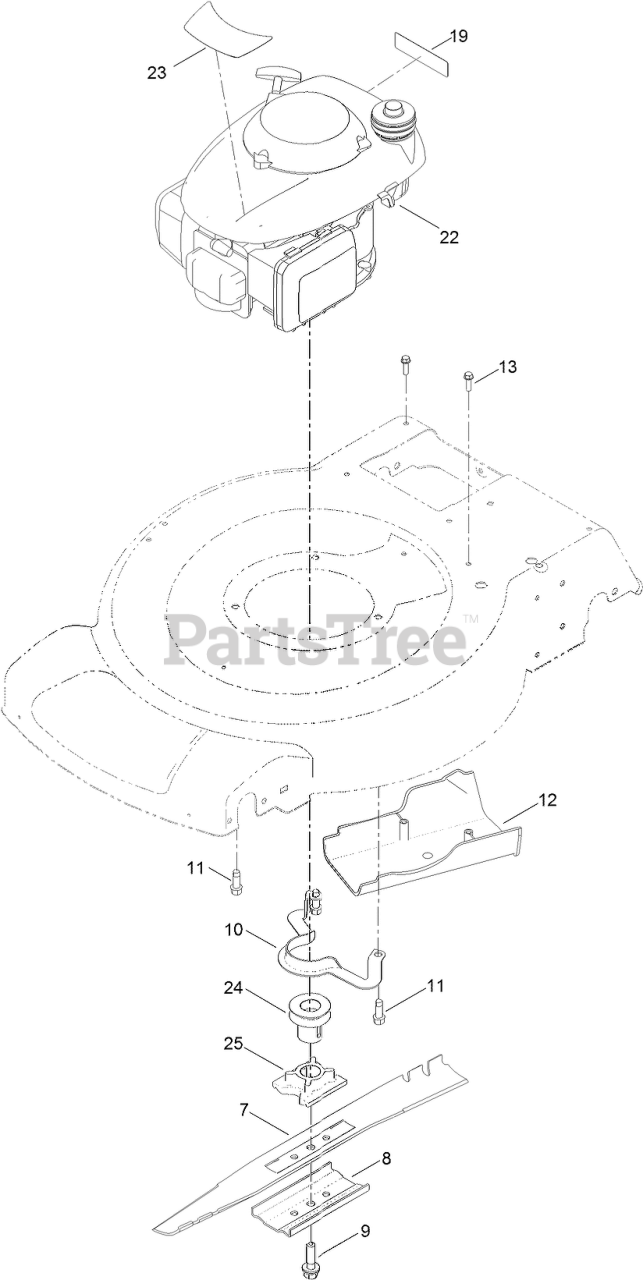

20337 - Toro 22" Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) > Parts Diagrams (6) > ENGINE AND BLADE ASSEMBLY

  • Title
108-9764-03

7

BLADE-22 INCH

Part# 108-9764-03 (Superseded to 131-4547-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.35

108-3766-03

8

SUPPORT-BLADE

Part# 108-3766-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.23

117-5270

9

BOLT-BLADE

Part# 117-5270

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

105-3030-03

10

Guide-Belt

Part# 105-3030-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.04

95-1726

11

SCREW-TAPTITE

Part# 95-1726

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.24

114-7937

12

COVER-BELT

Part# 114-7937

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.50

46-8091

13

SCREW-HWH

Part# 46-8091

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.64

117-2718

19

DECAL-ARRESTER, SPARK

Part# 117-2718

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.52

22

ENGINE-HONDA, GCV160LA0 S3H

Part#

Note: Not serviced separately

Not available

22

ENGINE-HONDA, GCV160LA0 S3H

Part#

Note: Obtain parts from www.honda-engines.com

Not available

117-5955

23

DECAL-ENGINE

Part# 117-5955

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.25

130-6684

24

PULLEY

Part# 130-6684

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.38

130-6674

25

RETAINER-BLADE

Part# 130-6674

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.31
