20337 - Toro 22" Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014)

22" Recycler Walk-Behind Mower

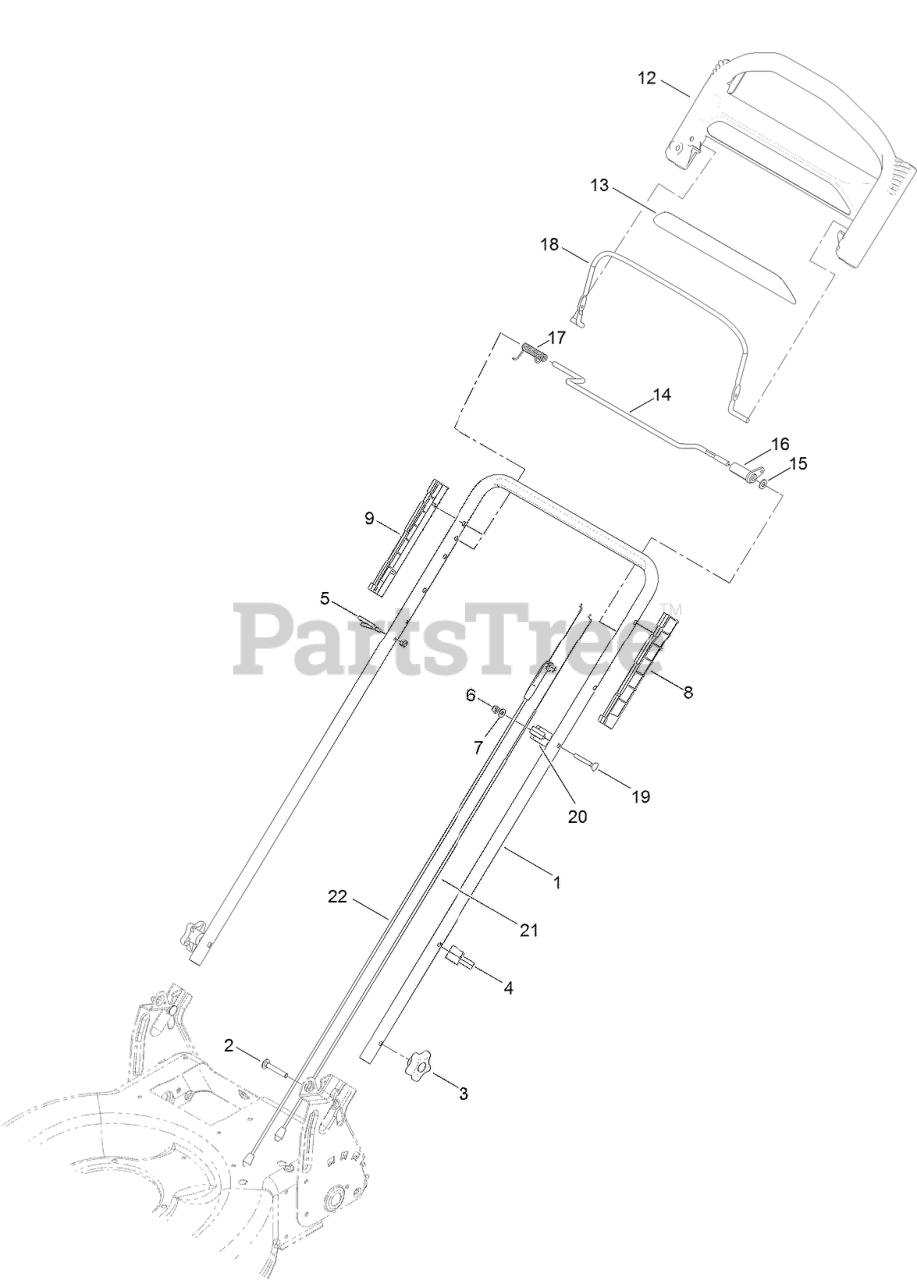

20337 - Toro 22" Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) > Parts Diagrams (6) > HANDLE ASSEMBLY

  • Title
119-3810-05

1

HANDLE

Part# 119-3810-05

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $40.74

3230-6

2

Screw-CARR

Part# 3230-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

117-5976

3

KNOB-HANDLE

Part# 117-5976

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

114-7988

4

GUIDE-CABLE

Part# 114-7988

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.89

86-9671

5

GUIDE-ROPE

Part# 86-9671

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

3296-73

6

NUT-LOCK, NI

Part# 3296-73

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.34

3256-1

7

WASHER-FLAT

Part# 3256-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.78

105-6842

8

GUIDE-LH

Part# 105-6842

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.77

105-6841

9

GUIDE-RH

Part# 105-6841

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.77

104-8678

12

HANDLE-CONTROL

Part# 104-8678

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $55.11

117-1019

13

DECAL

Part# 117-1019

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.77

99-1588

14

BAR-CONTROL, TRACTION

Part# 99-1588 (Superseded to 136-7150)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.98

3256-23

15

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

99-1589

16

LEVER-TRACTION

Part# 99-1589

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.92

121-9118

17

Spring-Torsion

Part# 121-9118 (Superseded to 136-7166)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

104-8679-03

18

Bail-Brake

Part# 104-8679-03 (Superseded to 131-0880-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.43

95-4453

19

SCREW

Part# 95-4453

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

99-5239

20

ANCHOR-CABLE

Part# 99-5239 (Superseded to 136-5864)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.97

115-8435

21

CABLE-TRACTION

Part# 115-8435

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.95

130-2381

22

CABLE-BRAKE

Part# 130-2381

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.38
