20337 - Toro 22" Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

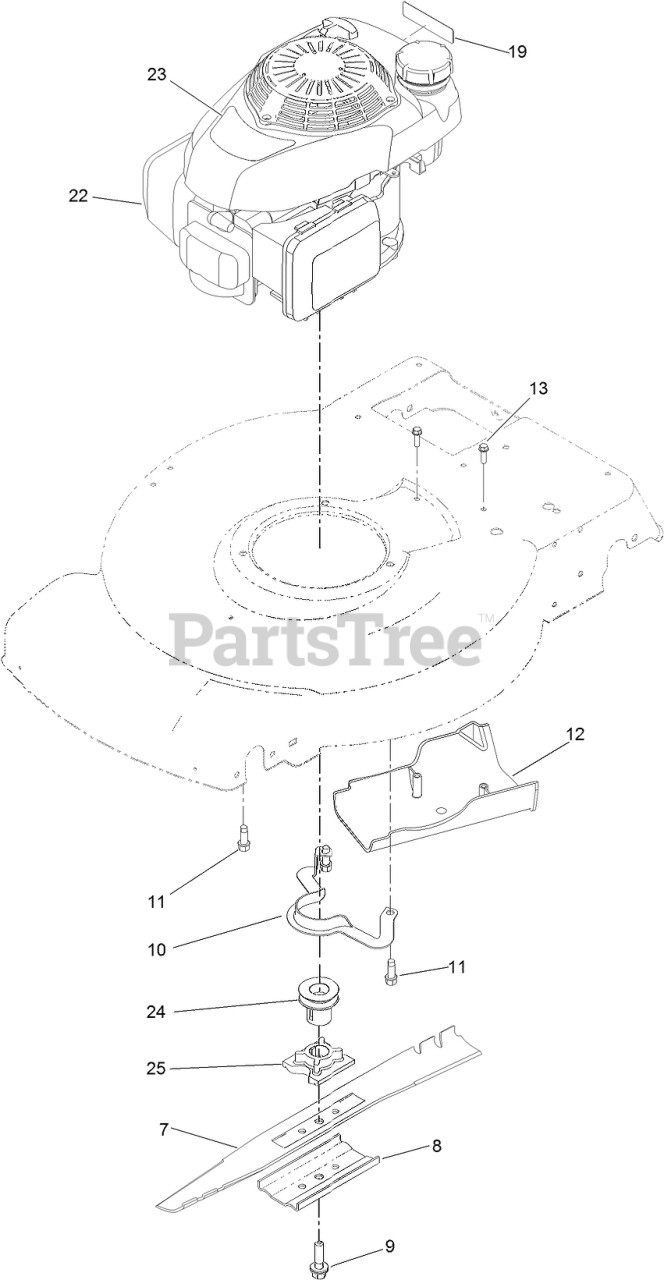

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

7

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, Qty 20+

0

8

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

9

Toro 117-5270

BOLT-BLADE

$5.49

$

In Stock, Qty 13

0

10

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, Qty 7

0

11

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Toro 114-7937

COVER-BELT

$18.99

$

In Stock, only 4 left!

0

13

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

19

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

22

ENGINE-HONDA, GCV160LA0 S3B

Note: Not serviced separately

$

$

Not available

22

ENGINE-HONDA, GCV160LA0 S3B

Note: Obtain parts from www.honda-engines.com

$

$

Not available

23

Toro 131-0854

DECAL-SHROUD, HONDA

$3.99

$

Usually ships in 3-6 days

0

24

Toro 130-6684

PULLEY

$33.99

$

In Stock, only 1 left!

0

25

Toro 130-6674

RETAINER-BLADE

$37.99

$

In Stock, only 4 left!

0
