20339 C - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 314000001 - 314999999) (2014) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

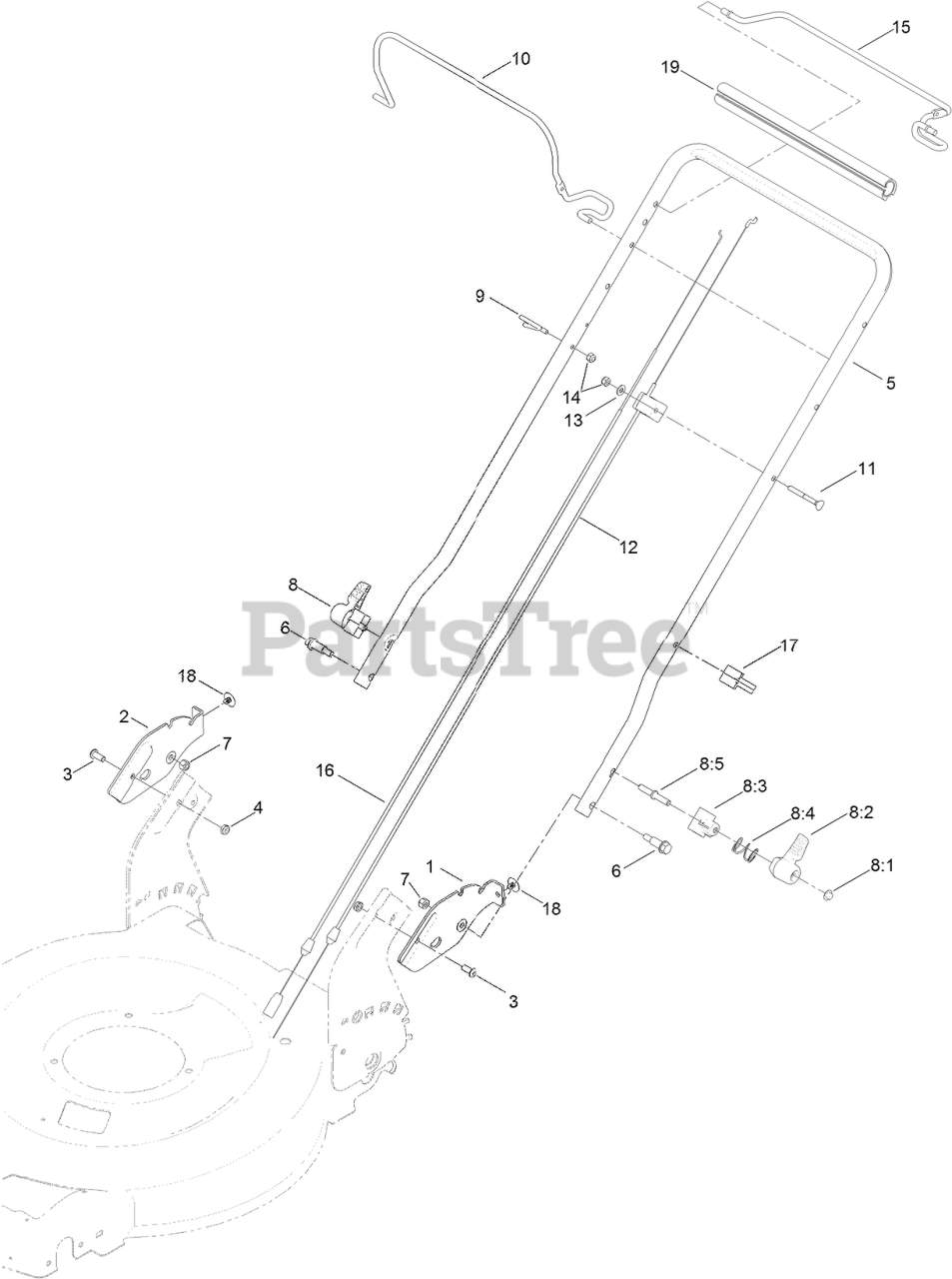

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-6813-03

PLATE-HANDLE, LH

$11.99

$

Usually ships in 3-6 days

0

2

Toro 127-6814-03

PLATE-HANDLE, RH

$11.99

$

Usually ships in 3-6 days

0

3

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

5

Toro 127-6869-05

HANDLE

$66.99

$

In Stock, only 1 left!

0

6

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:1

Toro 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 16

0

8:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 4 left!

0

8:5

Toro 114-2675

ROD-RELEASE
(Superseded to 138-3243)

$2.49

$

Usually ships in 3-6 days

0

9

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 19

0

10

Toro 117-5965-03

BAIL-BRAKE

$36.99

$

In Stock, only 4 left!

0

11

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, Qty 7

0

12

Toro 112-8818

CABLE-BRAKE

$33.99

$

In Stock, Qty 20+

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

15

Toro 119-2378-03

BAIL-TRACTION

$27.99

$

In Stock, only 3 left!

0

16

Toro 119-2379

CABLE-TRACTION

$33.99

$

In Stock, Qty 20+

0

17

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

18

Toro 130-6721

CLIP-TREE

$0.99

$

Usually ships in 3-6 days

0

19

Toro 119-2357

GRIP-HANDLE, COMFORT

$13.99

$

Usually ships in 3-6 days
