20339 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 402000000 - 403599999)

22" Recycler Walk-Behind Mower with SmartStow

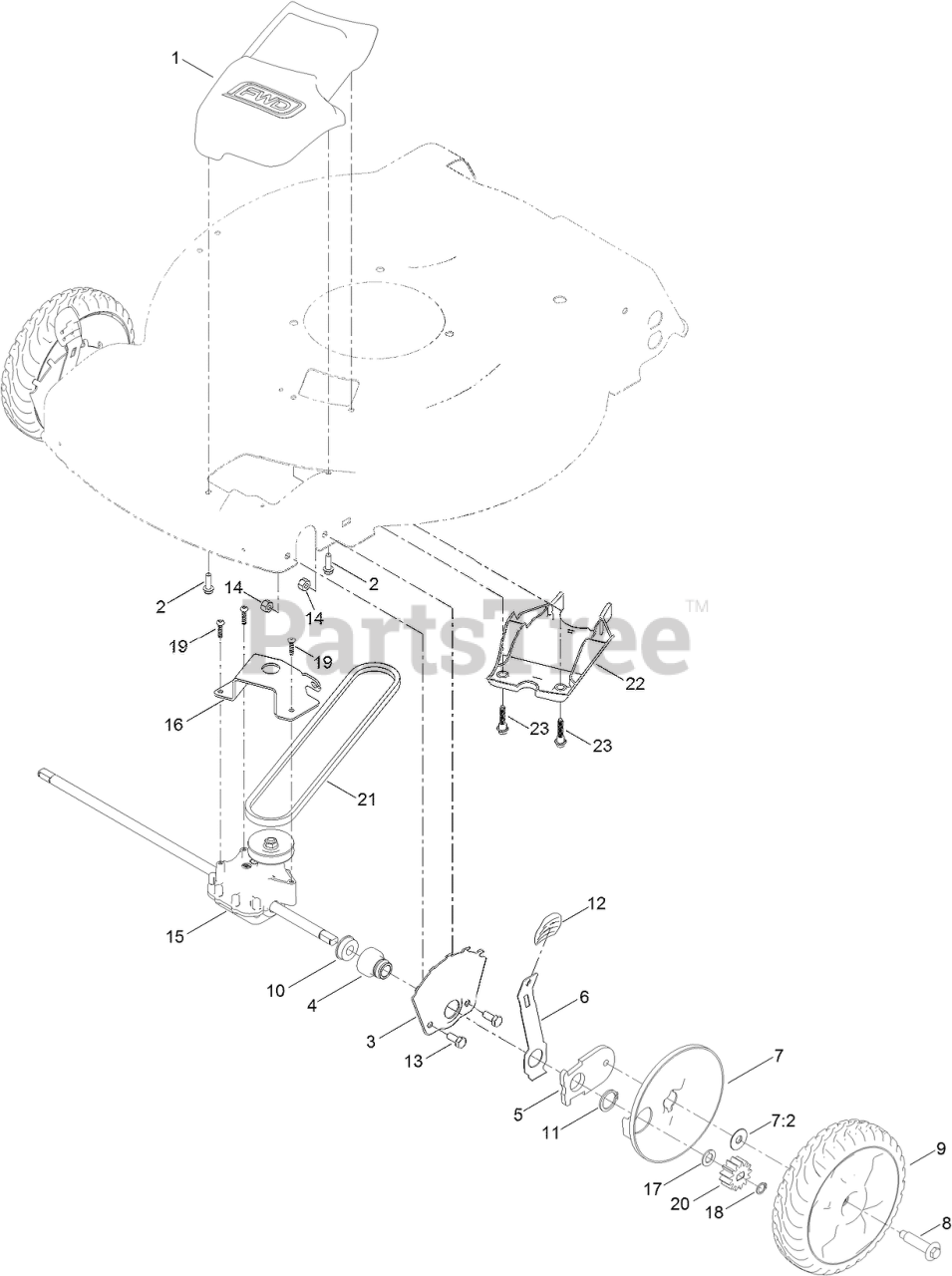

20339 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 402000000 - 403599999) > Parts Diagrams (6) > Front Wheel Height-of-Cut Assembly

  • Title
136-5907

1

COVER-BELT

Part# 136-5907

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.48

46-8091

2

SCREW-HWH

Part# 46-8091

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.64

115-1956-03

3

PLATE-HOC, FRONT

Part# 115-1956-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.73

131-0836

4

RETAINER-BEARING, HOC

Part# 131-0836

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.02

137-9128

5

ARM-PIVOT, FRONT

Part# 137-9128

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.58

105-1809

6

ARM-SPRING

Part# 105-1809

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.68

127-6840

7

WHEEL COVER ASM

Part# 127-6840

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

614426

7:2

WASHER-STEPPED

Part# 614426

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

614650

8

BOLT-SHOULDER

Part# 614650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.35

119-0311

9

See Supercession: 137-4832

Part# 119-0311 (Superseded to 137-4832)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.35

104-8699

10

BEARING-BALL

Part# 104-8699

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

32151-36

11

RING-RETAINING

Part# 32151-36

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.53

105-3042

12

KNOB-LEVER, HOC

Part# 105-3042

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

322-3

13

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.67

3296-29

14

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

137-4822

15

TRANSMISSION

Part# 137-4822

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $73.12

114-7978-03

16

BRACKET-TRANSMISSION

Part# 114-7978-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.36

110-7191

17

WASHER-THRUST

Part# 110-7191

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

32151-61

18

RING-RETAINING

Part# 32151-61

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.05

108-7476

19

SCREW-PLASTITE

Part# 108-7476

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.63

131-0896

20

GEAR-PINION, 13T

Part# 131-0896

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.60

117-1018

21

V-BELT

Part# 117-1018

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.64

136-5851

22

COVER-BELT, FRONT (LOWER)

Part# 136-5851

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.88

131-0837

23

SCREW-SHOULDER, HHF

Part# 131-0837

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.24
