20339 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 402000000 - 403599999)

22" Recycler Walk-Behind Mower with SmartStow

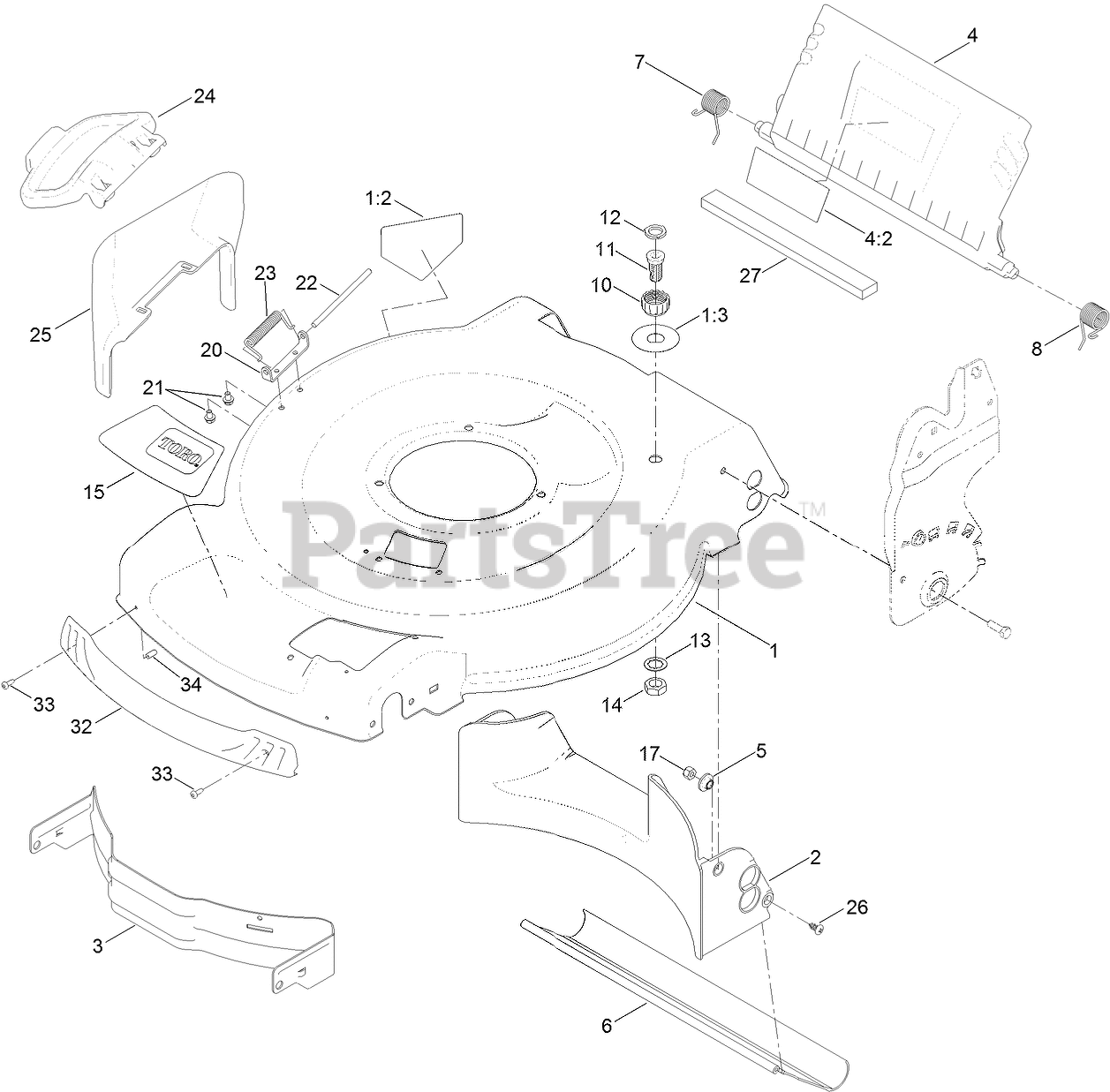

20339 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 402000000 - 403599999) > Parts Diagrams (6) > Housing Assembly

  • Title
136-7052

1

HOUSING ASM

Part# 136-7052

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $126.36

94-8072

1:2

DECAL-DANGER

Part# 94-8072

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.69

112-8867

1:3

DECAL-PORT, WASHOUT

Part# 112-8867

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.45

120-5218

2

BAFFLE-REAR

Part# 120-5218

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $19.21

114-7963-01

3

BAFFLE-FRONT

Part# 114-7963-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.94

136-7003

4

REAR DEFLECTOR ASM

Part# 136-7003

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.52

131-4514

4:2

DECAL-WARNING

Part# 131-4514

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.24

117-5991

5

WASHER-STEPPED, BAFFLE

Part# 117-5991

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

115-8420

6

SHIELD-TRAILING

Part# 115-8420

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.04

114-7924

7

SPRING-TORSION

Part# 114-7924

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

115-2859

8

SPRING-TORSION

Part# 115-2859

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.40

112-6401

10

COUPLING-HOSE, WASHOUT PORT

Part# 112-6401

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.64

112-6400

11

PORT-WASHOUT

Part# 112-6400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.13

112-6438

12

WASHER-SEAL, WASHOUT PORT

Part# 112-6438

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

3254-5

13

WASHER-LOCK

Part# 3254-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

3218-6

14

NUT-JAM

Part# 3218-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.80

130-2398

15

DECAL-DECK

Part# 130-2398

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.58

3296-29

17

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

112-6416

20

BRACKET-COVER

Part# 112-6416

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.24

99-8445

21

SCREW-HWH

Part# 99-8445

OEM Warranty Repair Part for Toro

Not available

99-5291

22

See Supercession: 136-8672

Part# 99-5291 (Superseded to 136-8672)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.04

99-5293

23

SPRING-TORSION

Part# 99-5293

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

115-8449

24

DEFLECTOR-SIDE

Part# 115-8449

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.36

115-8447

25

CHUTE-DISCHARGE, SIDE

Part# 115-8447

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.55

117-1092

26

SCREW-PTH

Part# 117-1092

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

117-5924

27

FOAM-SEAL

Part# 117-5924

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

114-7987

32

BUMPER

Part# 114-7987

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.25

105-6849

33

SCREW-FORMING, THREAD

Part# 105-6849

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

130-6660

34

CAP-PLUG

Part# 130-6660

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.22
