20339 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 402000000 - 403599999)

22" Recycler Walk-Behind Mower with SmartStow

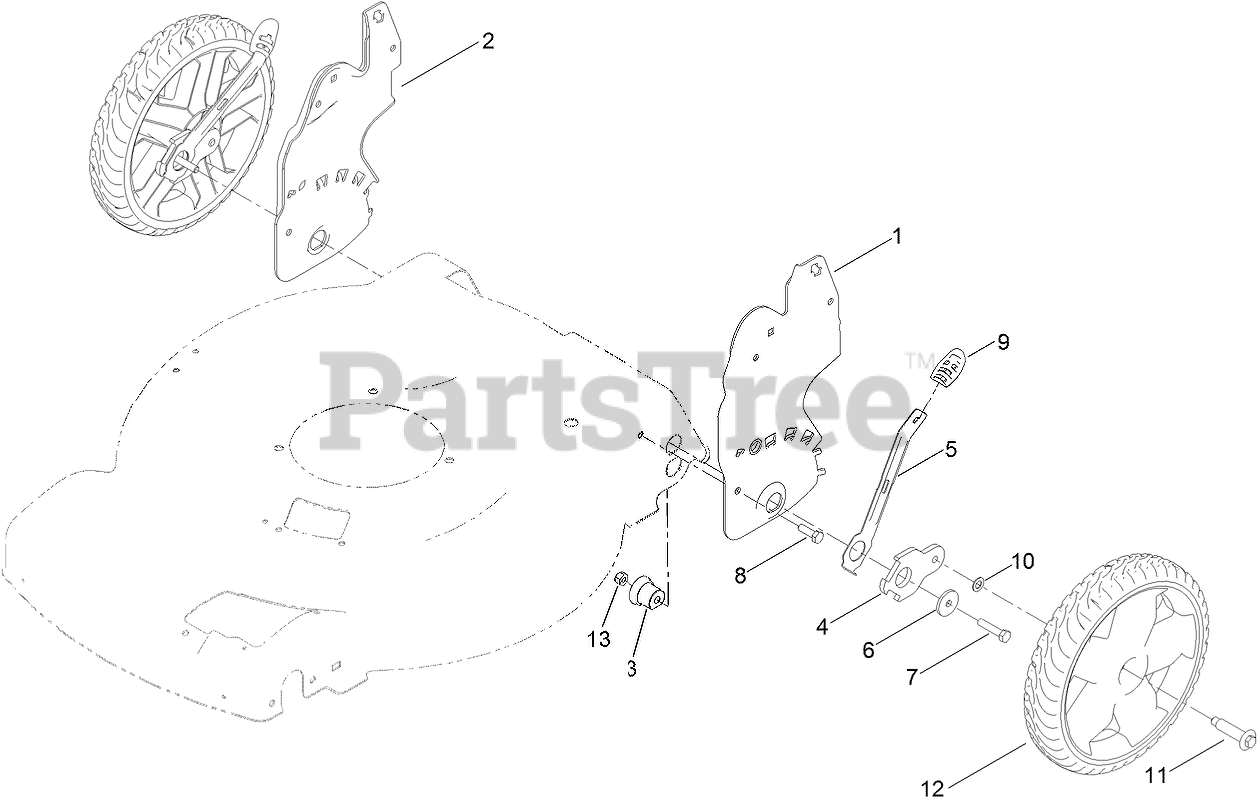

20339 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 402000000 - 403599999) > Parts Diagrams (6) > Rear Wheel Height-of-Cut Assembly

  • Title
132-4490-03

1

PLATE-HOC, LH

Part# 132-4490-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.95

132-4491-03

2

PLATE-HOC, RH

Part# 132-4491-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.95

131-0895

3

BUSHING-MOUNT, HOC

Part# 131-0895

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.24

137-9129

4

ARM-PIVOT, REAR

Part# 137-9129

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.17

115-2899

5

ARM-SPRING, REAR

Part# 115-2899

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.25

105-3048

6

WASHER-FLAT

Part# 105-3048

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

322-7

7

SCREW-HH

Part# 322-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.78

322-5

8

SCREW-HH

Part# 322-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.42

105-3042

9

KNOB-LEVER, HOC

Part# 105-3042

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

40-1940

10

WASHER

Part# 40-1940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

614650

11

BOLT-SHOULDER

Part# 614650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.35

119-0313

12

See Supercession: 137-4837

Part# 119-0313 (Superseded to 137-4837)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $30.18

3296-29

13

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81
