20349 - Toro 21" Recycler Walk-Behind Mower (SN: 400000000 - 404319999) Engine and Blade Assembly Parts Diagram
21" Recycler Walk-Behind Mower

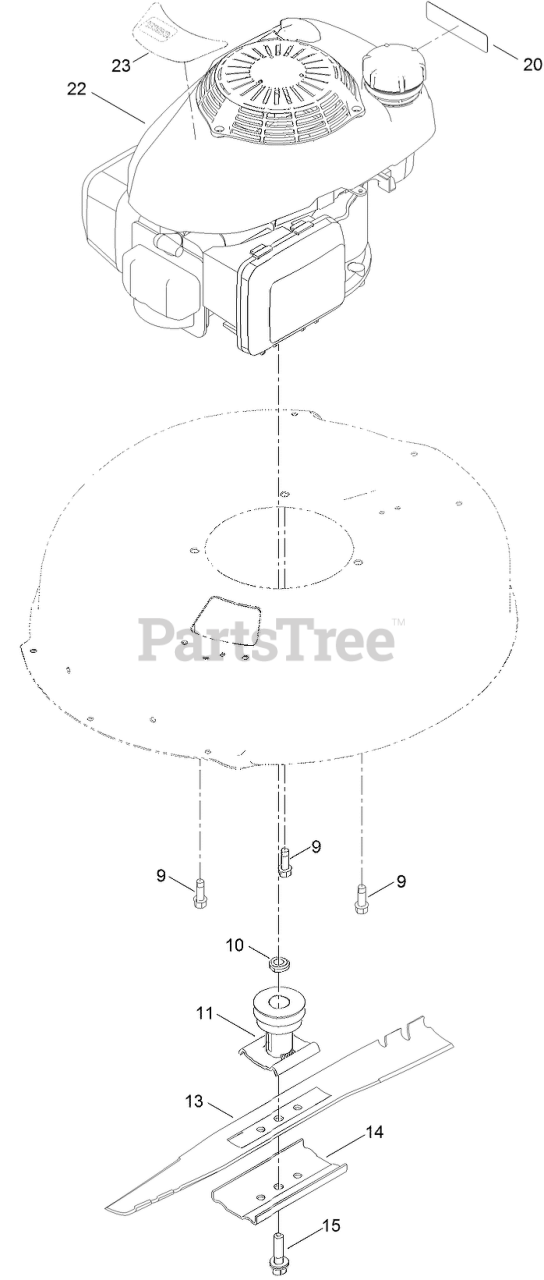

Engine and Blade Assembly Parts Diagram
Toro 95-1726
SCREW-TAPTITE
$2.99
$
In Stock, Qty 20+
Toro 106-3999
SPACER-DRIVER
$3.99
$
In Stock, Qty 20+
Toro 137-9160
DRIVER-BLADE
$36.99
$
Usually ships in 3-6 days
Toro 133-8182-03
BLADE-21IN
$26.99
$
In Stock, Qty 20+
Toro 108-3766-03
SUPPORT-BLADE
$11.99
$
In Stock, Qty 20+
Toro 117-5270
BOLT-BLADE
$
$
Not available
Toro 117-2718
DECAL-ARRESTER, SPARK
$8.49
$
In Stock, only 2 left!
22
ENGINE-HONDA, GCV160LA0 S3B
Note: Not serviced separately
$
$
Not available
22
ENGINE-HONDA, GCV160LA0 S3B
Note: Obtain parts from www.honda-engines.com
$
$
Not available
Toro 131-0854
DECAL-SHROUD, HONDA
$4.49
$
In Stock, Qty 12
