20349 - Toro 21" Recycler Walk-Behind Mower (SN: 400000000 - 404319999) Front Wheel Assembly Parts Diagram

21" Recycler Walk-Behind Mower

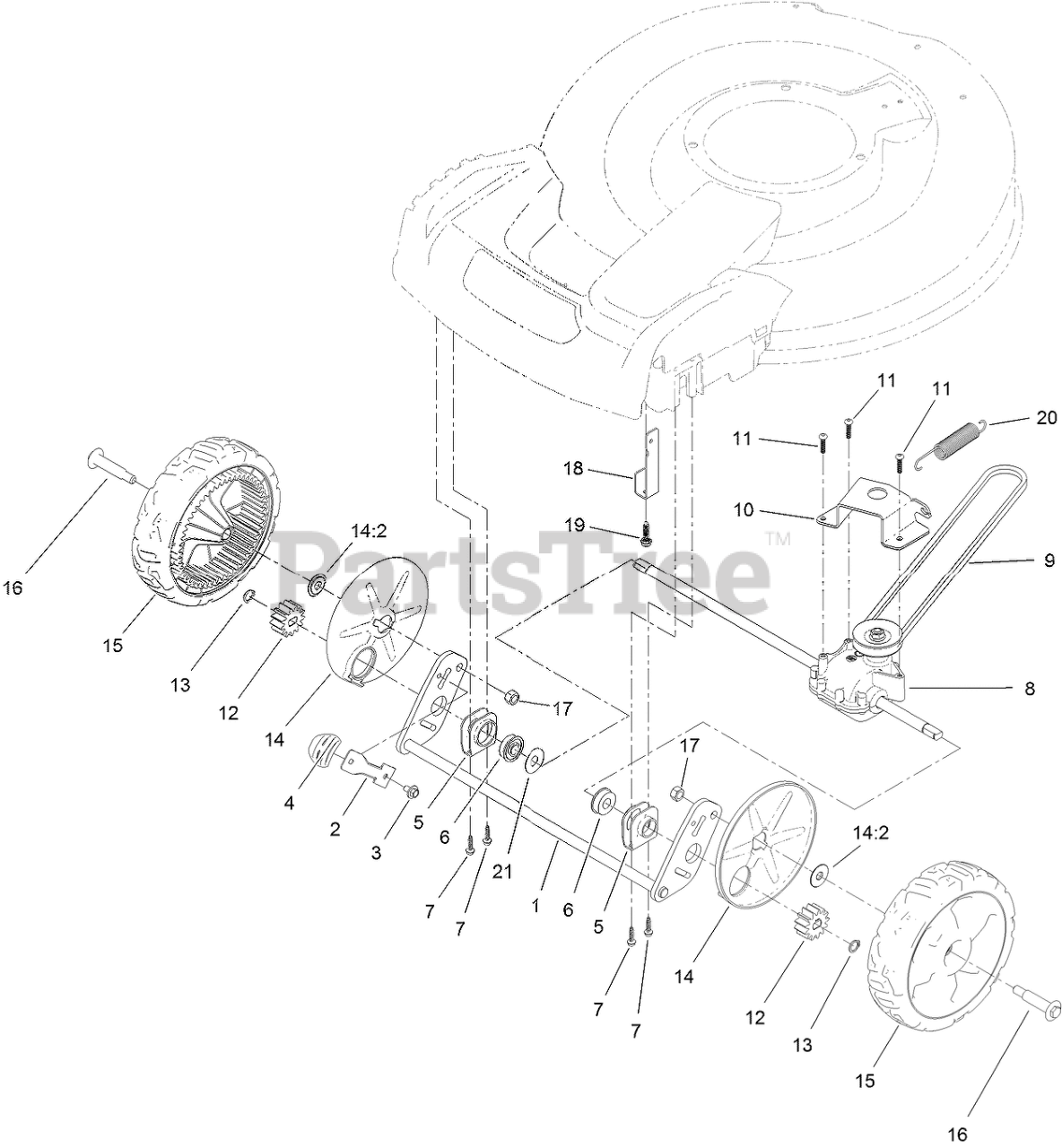

Front Wheel Assembly Parts Diagram

  • Title

1

Toro 131-0833-03

AXLE-FRONT

$37.99

$

Usually ships in 3-6 days

0

2

Toro 131-0842

ARM-SPRING

$11.99

$

In Stock, Qty 6

0

3

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

4

Toro 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 20+

0

5

Toro 127-0707

RETAINER-BEARING

$

$

Not available

6

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

7

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

8

Toro 131-0845

TRANSMISSION
(Superseded to 137-4824)

$100.99

$

Usually ships in 3-6 days

0

9

Toro 125-1011

BELT-V

$13.99

$

In Stock, Qty 20+

0

10

Toro 114-7978-03

BRACKET-TRANSMISSION

$10.99

$

In Stock, only 1 left!

0

11

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

12

Toro 131-0896

GEAR-PINION, 13T

$6.99

$

In Stock, Qty 20+

0

13

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

14

Toro 127-6840

WHEEL COVER ASM

$5.99

$

In Stock, Qty 20+

0

14:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

15

Toro 132-4535

8 INCH WHEEL ASM (FRONT, WHITE)
(Superseded to 137-9189)

$32.99

$

In Stock, only 3 left!

0

16

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 6

0

17

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

18

Toro 131-0877-03

BRACKET-ANCHOR, CABLE

$5.49

$

Usually ships in 3-6 days

0

19

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 16

0

20

Toro 131-4560

SPRING-EXTENSION

$7.49

$

In Stock, Qty 9

0

21

Toro 110-7179

WASHER-PLAIN

$

$

Currently unavailable
