2035 - Jonsered Chainsaw (1998-09) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

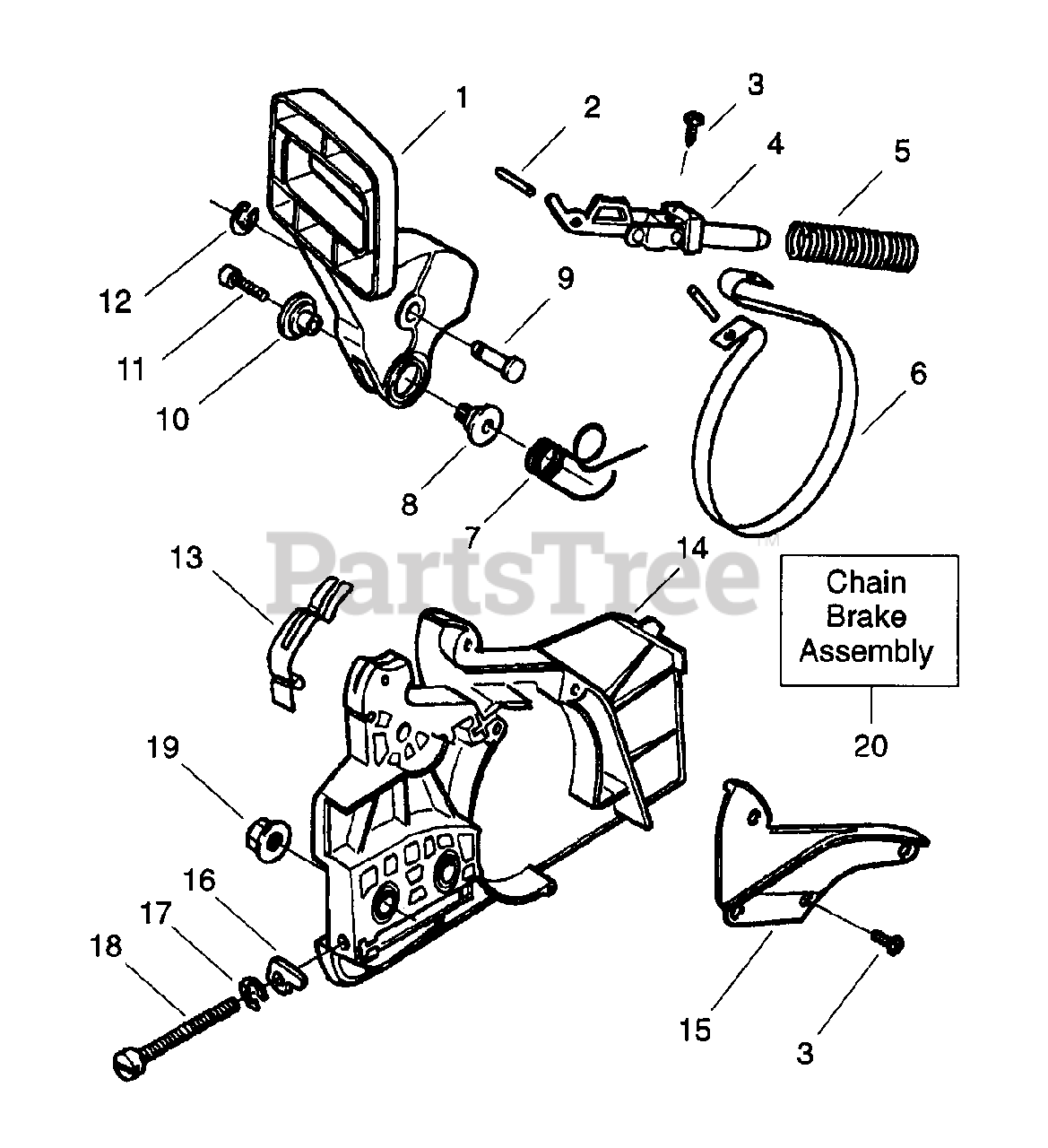

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 530053033

HAND GUARD
(Superseded to 530071347)

$15.99

$

Usually ships in 3-10 days

0

2

Jonsered 530015913

PIN

$4.99

$

In Stock, Qty 6

0

3

Jonsered 530015911

SCREW
(Superseded to 574780301)

$7.49

$

In Stock, only 1 left!

0

4

Jonsered 530014356

FRONT & REAR LINK ASSEMBLY NLA

$

$

Not available

5

Jonsered 530016237

%COMPRESSION SPRING
(Superseded to 545137301)

$8.99

$

Usually ships in 3-10 days

0

6

Jonsered 530052232

BRAKE BAND
(Superseded to 545137401)

$7.49

$

In Stock, Qty 15

0

7

Jonsered 530015910

SPRING,BRK HDL 36/41

$6.49

$

In Stock, Qty 6

0

8

Jonsered 530049075

SHAFT PIVOT

$

$

Not available

9

Jonsered 530029879

PIVOT PIN

$4.99

$

In Stock, only 2 left!

0

10

Jonsered 530029881

SHAFT PIVOT

$3.99

$

In Stock, only 1 left!

0

11

Jonsered 530015914

SCREW

$2.49

$

In Stock, Qty 8

0

12

Jonsered 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

13

Jonsered 530029878

SPRING-POSITION

$6.49

$

In Stock, Qty 10

0

14

Jonsered 530053745

REPL BY 530 05 37-46
(Superseded to 530054761)

$21.99

$

Usually ships in 3-10 days

0

15

Jonsered 530038679

COVER

$

$

Not available

16

Jonsered 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

18

Jonsered 530016110

BAR ADJUSTING SCREW

$4.99

$

In Stock, Qty 20+

0

19

Jonsered 530015917

BAR NUT

$3.99

$

In Stock, Qty 20+

0

20

Jonsered 530053746

COVER
(Superseded to 530054761)

$21.99

$

Usually ships in 3-10 days

0
