2035 - Jonsered Chainsaw (1998-09) CRANKCASE Parts Diagram

Chainsaw

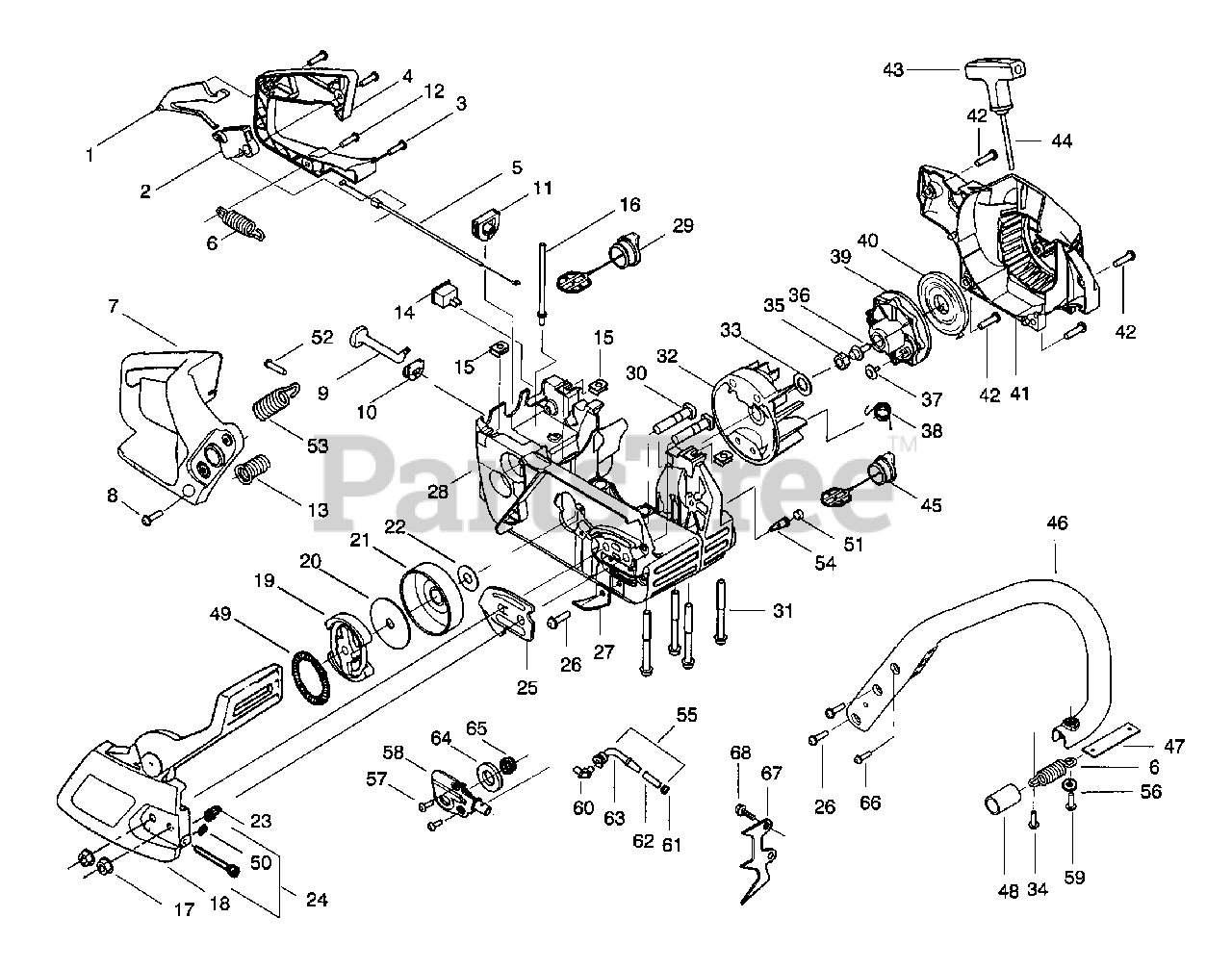

CRANKCASE Parts Diagram

  • Title

1

Jonsered 530036098

THROTTLE LOCK

$

$

Not available

2

Jonsered 530036097

THROTTLE TRIGGER

$4.99

$

In Stock, only 3 left!

0

3

Jonsered 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 9

0

4

Jonsered 530047581

HANDLE

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 530047602

THROTTLE WIRE

$

$

Not available

6

Jonsered 530042082

SPRING
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

7

Jonsered 530047582

HANDLE

$15.99

$

Usually ships in 3-10 days

0

8

Jonsered 530015871

SCREW
(Superseded to 530015650)

$

$

Not available

9

Jonsered 530047605

KNOB

$4.99

$

In Stock, Qty 8

0

10

Jonsered 530049005

GUIDE

$2.49

$

Usually ships in 3-10 days

0

11

Jonsered 530047631

GROMMET

$2.49

$

In Stock, only 2 left!

0

12

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, Qty 17

0

13

Jonsered 530053274

SPRING
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

14

Jonsered 530069572

SWITCH

$8.99

$

In Stock, only 3 left!

0

15

Jonsered 530015922

CLIP

$6.49

$

In Stock, Qty 5

0

16

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

17

Jonsered 530015917

BAR NUT

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 530053746

COVER
(Superseded to 530054761)

$21.99

$

Usually ships in 3-10 days

0

19

Jonsered 530014949

CLUTCH ASSEMBLY

$13.99

$

In Stock, Qty 19

0

20

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, Qty 20+

0

21

Jonsered 530047061

CLUTCH DRUM ASSY

$17.99

$

In Stock, Qty 11

0

22

Jonsered 530015907

DUST COVER 36/41

$

$

Not available

23

Jonsered 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 20+

0

24

Jonsered 530069611

RETAINER

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 530038238

PLATE

$

$

Not available

26

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

27

Jonsered 530029850

CHAIN CATCHER 36/41

$6.49

$

In Stock, Qty 20+

0

28

Jonsered 530053741

CRANKCASE
(Superseded to 530056599)

$66.99

$

Usually ships in 3-10 days

0

29

Jonsered 530047192

TANK CAP
(Superseded to 580940901)

$6.49

$

In Stock, Qty 20+

0

30

Jonsered 530016133

BOLT

$6.49

$

In Stock, only 4 left!

0

31

Jonsered 530016132

BOLT

$6.49

$

In Stock, Qty 10

0

32

Jonsered 530039209

FLYWHEEL ASS'Y
(Superseded to 530063575)

$

$

Not available

33

Jonsered 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

34

Jonsered 530015843

SCREW

$6.49

$

In Stock, only 2 left!

0

35

Jonsered 530016134

NUT-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

36

Jonsered 530015920

SCREW

$6.49

$

In Stock, Qty 8

0

37

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

38

Jonsered 530023817

SPRING STR DOG

$6.49

$

In Stock, Qty 5

0

39

Jonsered 530037817

STARTER PULLEY
(Superseded to 545034301)

$

$

Not available

40

Jonsered 530027531

No Description Available
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

41

Jonsered 530053744

STARTER HOUSING

$

$

Not available

42

Jonsered 530015892

SCREW,STRTR CVR 36/41

$6.49

$

In Stock, Qty 20+

0

43

Jonsered 530037485

HANDLE
(Superseded to 530056402)

$6.49

$

In Stock, only 2 left!

0

44

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

45

Jonsered 530010846

OIL TANK CAP
(Superseded to 530057236)

$

$

Not available

46

Jonsered 530047583

HANDLE
(Superseded to 545048001)

$44.99

$

Usually ships in 3-10 days

0

47

Jonsered 530047608

STRAP
(Superseded to 530037009)

$

$

Not available

48

Jonsered 530036142

SLEEVE

$

$

Not available

49

Jonsered 530094188

CLUTCH SPRING 36/41
(Superseded to 530014949)

$13.99

$

In Stock, Qty 19

0

50

Jonsered 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

51

Jonsered 530038264

BRONZE PLUG

$6.49

$

In Stock, Qty 6

0

52

Jonsered 530015875

SCREW

$4.99

$

In Stock, only 3 left!

0

53

Jonsered 530053275

SPRING
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

54

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 18

0

55

Jonsered 530047663

HOSE

$4.99

$

In Stock, Qty 9

0

56

Jonsered 530015123

WASHER

$4.99

$

In Stock, only 4 left!

0

57

Jonsered 530016064

SCREW

$4.99

$

In Stock, Qty 8

0

58

Jonsered 530071259

OIL PUMP

$18.99

$

In Stock, only 2 left!

0

59

Jonsered 530016018

No Description Available

$

$

Not available

60

Jonsered 530049477

ELBOW

$4.99

$

In Stock, Qty 5

0

61

Jonsered 530030189

PLUG
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

62

Jonsered 530037821

FILTER
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

63

Jonsered 530038373

PICK-UP OILER

$4.99

$

Usually ships in 3-10 days

0

64

Jonsered 530019231

SEALING

$

$

Not available

65

Jonsered 530037820

WORM GEAR

$6.49

$

In Stock, only 4 left!

0

66

Jonsered 530016009

SCREW

$

$

Not available

67

Jonsered 530014469

SPIKE
(Superseded to 530014381)

$9.99

$

In Stock, Qty 16

0

68

Jonsered 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 9

0
