2035 - Jonsered Chainsaw (1998-09) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

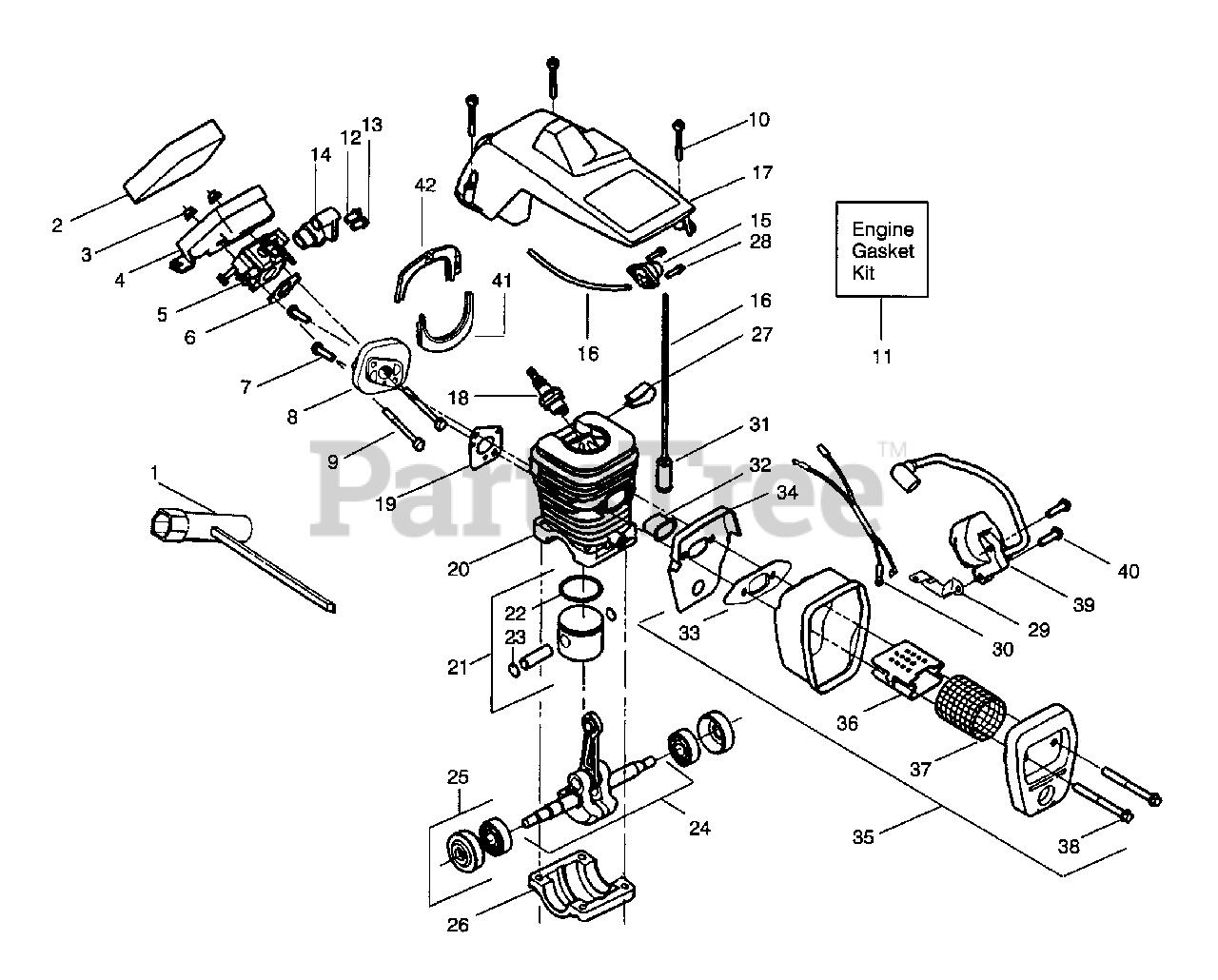

CYLINDER PISTON MUFFLER Parts Diagram

  • Title

1

Jonsered 530031135

SCRENCH
(Superseded to 530031163)

$9.99

$

In Stock, Qty 17

0

2

Jonsered 530037793

AIR FILTER

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 530016101

NUT

$6.49

$

In Stock, Qty 8

0

4

Jonsered 530047604

AIR FILTER HOUSING

$

$

Not available

5

Jonsered 530069722

CARBURETOR
(Superseded to 530071621)

$

$

Not available

6

Jonsered 530019239

GASKET
(Superseded to 530019271)

$6.49

$

In Stock, only 2 left!

0

7

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

8

Jonsered 530049700

PARTITION

$7.49

$

In Stock, only 3 left!

0

9

Jonsered 530016187

SCREW

$6.49

$

In Stock, only 4 left!

0

10

Jonsered 530016102

SCREW

$

$

Not available

11

Jonsered 530069608

No Description Available

$8.99

$

In Stock, Qty 20+

0

12

Jonsered 530038318

No Description Available

$3.99

$

In Stock, Qty 20+

0

13

Jonsered 530038317

LIMITER CAP (LOW-BLUE)

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 530049244

GROMMET-CARB ADJUST.

$3.99

$

In Stock, only 3 left!

0

15

Jonsered 530047213

No Description Available
(Superseded to 530071835)

$8.99

$

In Stock, Qty 20+

0

16

Jonsered 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

17

Jonsered 530053183

CYLINDER COVER

$

$

Not available

18

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

19

Jonsered 530019249

GASKET-CARB ADAPTER

$6.49

$

In Stock, only 2 left!

0

20

Jonsered 530069606

REPL BY 530 07 12-52
(Superseded to 530071252)

$34.61

$

Usually ships in 3-10 days

0

21

Jonsered 530069604

PISTON

$36.99

$

Usually ships in 3-10 days

0

22

Jonsered 530029805

PISTON RING 36

$6.99

$

In Stock, Qty 20+

0

23

Jonsered 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

24

Jonsered 530047062

CRANKSHAFT
(Superseded to 545113101)

$72.99

$

Usually ships in 3-10 days

0

25

Jonsered 530047827

SEALED BEARING
(Superseded to 530056363)

$18.99

$

In Stock, Qty 7

0

26

Jonsered 530037935

COVER

$10.99

$

Usually ships in 3-10 days

0

27

Jonsered 530016136

No Description Available

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 530016090

SCREW - PRIMER ASSEMBLY
(Superseded to 530015780)

$6.49

$

In Stock, only 3 left!

0

29

Jonsered 530047442

GROUND STRAP

$3.99

$

Usually ships in 3-10 days

0

30

Jonsered 530049117

WIRE HARNESS ASS'Y

$

$

Not available

31

Jonsered 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 530037652

HEAT INSULATOR

$

$

Not available

33

Jonsered 530019221

No Description Available

$3.99

$

In Stock, only 1 left!

0

34

Jonsered 530049870

PLATE

$6.49

$

Usually ships in 3-10 days

0

35

Jonsered 530047207

MUFFLER
(Superseded to 530071904)

$

$

Not available

36

Jonsered 530037813

FLAME PROTECTION

$4.99

$

In Stock, only 2 left!

0

37

Jonsered 530036103

SCREEN

$

$

Not available

38

Jonsered 530016132

BOLT

$6.49

$

In Stock, Qty 10

0

39

Jonsered 530052277

IGNITION MODULE

$42.99

$

Usually ships in 3-10 days

0

40

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

41

Jonsered 530049714

SEALING

$

$

Not available

42

Jonsered 530049715

SEALING

$

$

Not available

530087422

Jonsered 530087422

UK/F/D/ESP

$

$

Not available

530087424

Jonsered 530087424

DK/FIN/N/S

$

$

Not available

530087425

Jonsered 530087425

GRE/PT/NL/I

$

$

Not available

530031112

Jonsered 530031112

CLUTCH TOOL

$14.99

$

In Stock, only 4 left!

0

530031097

Jonsered 530031097

AIR GAP GAUGE

$

$

Not available

530031160

Jonsered 530031160

INSERT TOOL

$21.99

$

Usually ships in 3-10 days

0

501834402

Jonsered 501834402

BAR COVER

$13.84

$

Usually ships in 3-10 days

0

530053668

Jonsered 530053668

DECAL

$

$

Not available

530053667

Jonsered 530053667

DECAL

$

$

Not available
