20352 - Toro 22" Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010)

22" Recycler Walk-Behind Mower

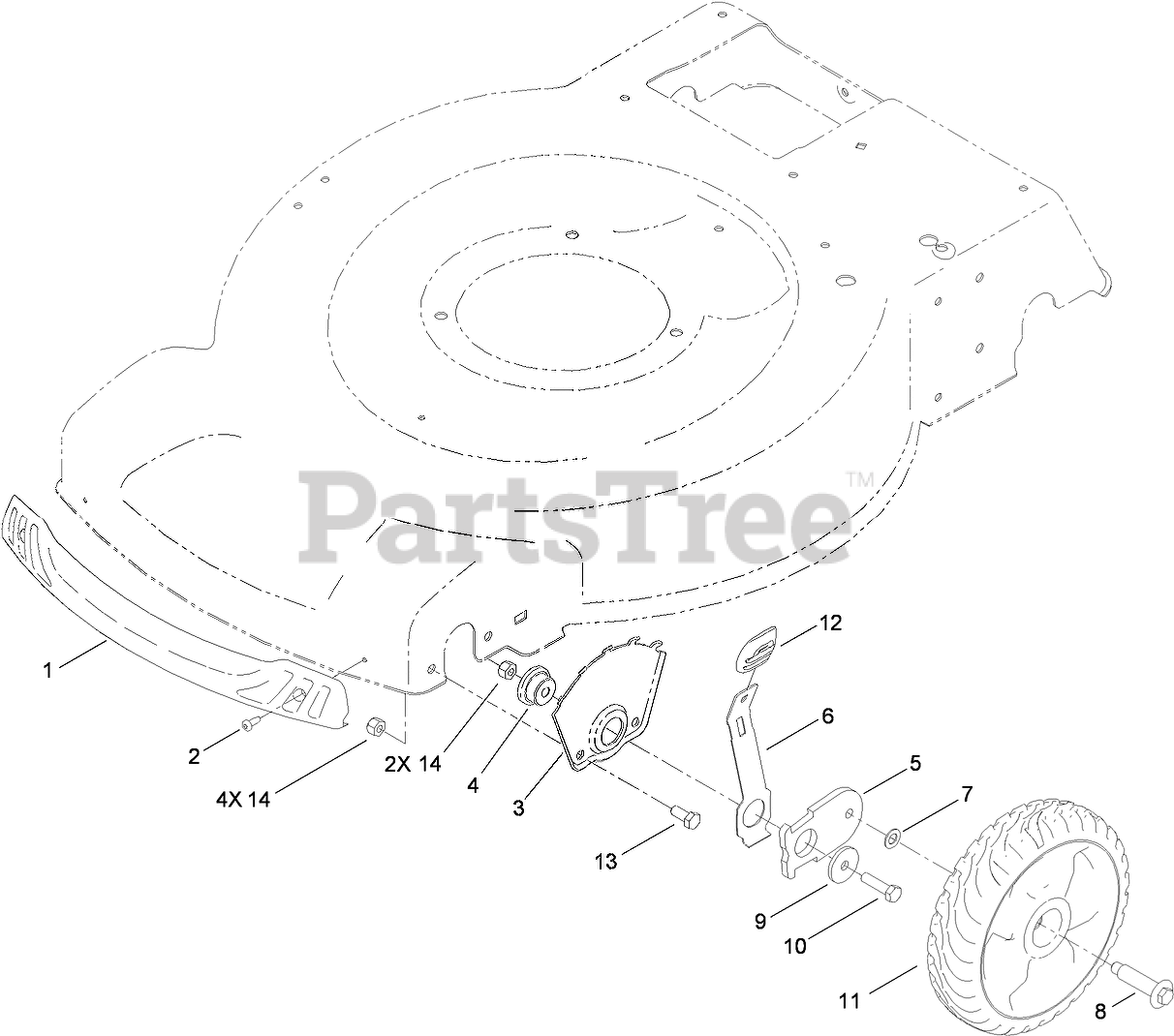

20352 - Toro 22" Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) > Parts Diagrams (6) > FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY

  • Title
114-7987

1

BUMPER

Part# 114-7987

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.25

105-6849

2

SCREW-FORMING, THREAD

Part# 105-6849

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

115-1956-03

3

PLATE-HOC, FRONT

Part# 115-1956-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.73

105-1818

4

Bushing-Mount, HOC

Part# 105-1818

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.33

105-1807

5

ARM-PIVOT, FRONT

Part# 105-1807 (Superseded to 137-9128)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.58

105-1809

6

Arm-Spring

Part# 105-1809

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.68

40-1940

7

WASHER

Part# 40-1940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

614650

8

BOLT-SHOULDER

Part# 614650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.35

105-3048

9

Washer-Flat

Part# 105-3048

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

322-6

10

SCREW-HH

Part# 322-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.09

115-2894

11

8 INCH WHEEL ASM

Part# 115-2894 (Superseded to 137-4833)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.23

105-3042

12

Knob-Lever, HOC

Part# 105-3042

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

322-3

13

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.67

3296-29

14

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81
