20353 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402099999)

22" Recycler Walk-Behind Mower

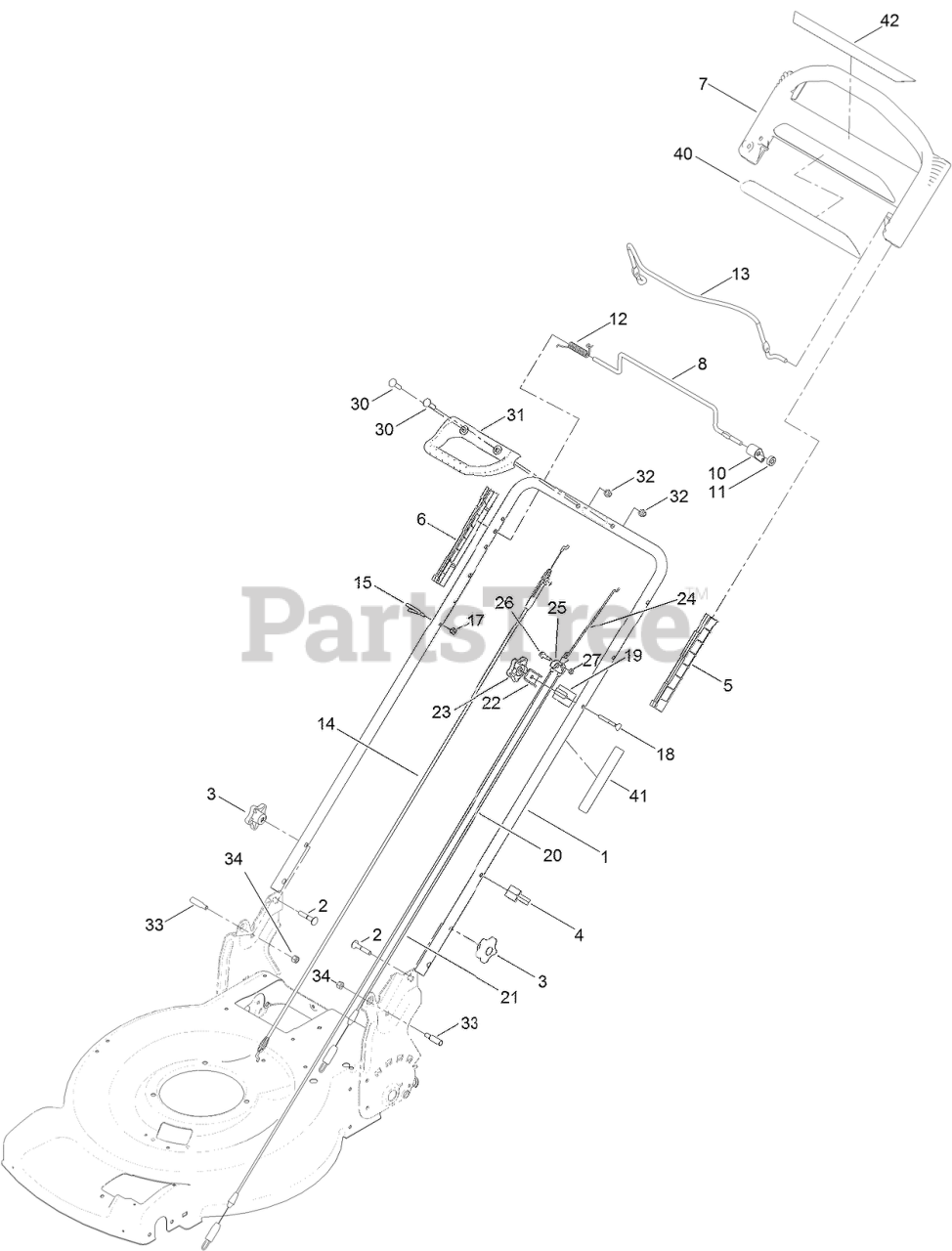

20353 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402099999) > Parts Diagrams (6) > HANDLE ASSEMBLY

  • Title
131-9695-05

1

HANDLE

Part# 131-9695-05

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $38.61

131-9663

2

SCREW-CARR

Part# 131-9663

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.67

117-5976

3

KNOB-HANDLE

Part# 117-5976

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

114-7988

4

GUIDE-CABLE

Part# 114-7988

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.89

105-6842

5

GUIDE-LH

Part# 105-6842

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.77

105-6841

6

GUIDE-RH

Part# 105-6841

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.77

104-8678

7

HANDLE-CONTROL

Part# 104-8678

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $55.11

99-1588

8

BAR-CONTROL, TRACTION

Part# 99-1588 (Superseded to 136-7150)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.98

127-6842

10

LEVER-TRACTION

Part# 127-6842

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.81

130-2343

11

SPACER

Part# 130-2343

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.72

121-9118

12

Spring-Torsion

Part# 121-9118 (Superseded to 136-7166)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

131-0880-03

13

BAIL-BRAKE

Part# 131-0880-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.43

115-8437

14

CABLE-BRAKE

Part# 115-8437

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.62

86-9671

15

GUIDE-ROPE

Part# 86-9671

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

3296-73

17

NUT-LOCK, NI

Part# 3296-73

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.34

92-2269

18

SCREW-HANDLE

Part# 92-2269

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.50

130-6716

19

MOUNT-CABLE, TRACTION

Part# 130-6716

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

130-6717

20

CABLE-TRACTION, FRONT

Part# 130-6717

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.12

130-6718

21

CABLE-TRACTION, REAR

Part# 130-6718

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.12

136-5922

22

CLAMP-CABLE

Part# 136-5922

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

131-0897

23

KNOB-HANDLE, LOCKING

Part# 131-0897

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.81

131-4559

24

LINKAGE-EQUALIZER

Part# 131-4559

OEM Warranty Repair Part for Toro

Not available

130-6719

25

YOKE-CABLE

Part# 130-6719

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.81

132-4519

26

SCREW-SHOULDER

Part# 132-4519

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.67

3296-2

27

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.24

99-6005

30

BOLT-CARRIAGE

Part# 99-6005

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.09

131-0847

31

HANDLE-ASSIST, TRACTION

Part# 131-0847

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.96

131-4535

32

NUT-ACORN

Part# 131-4535

OEM Warranty Repair Part for Toro

Not available

131-4591

33

BOLT-SHOULDER

Part# 131-4591

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.20

3296-29

34

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

131-4519

40

DECAL

Part# 131-4519

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.58

132-4470

41

DECAL-TRACTION, ADJUST

Part# 132-4470

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.30

121-2399

42

DECAL-ASSIST, TRACTION

Part# 121-2399

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.57
