Parts Home > Toro > Walk-Behind Mowers > 20353 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402099999) > HOUSING AND REAR DEFLECTOR ASSEMBLY

20353 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402099999)

22" Recycler Walk-Behind Mower

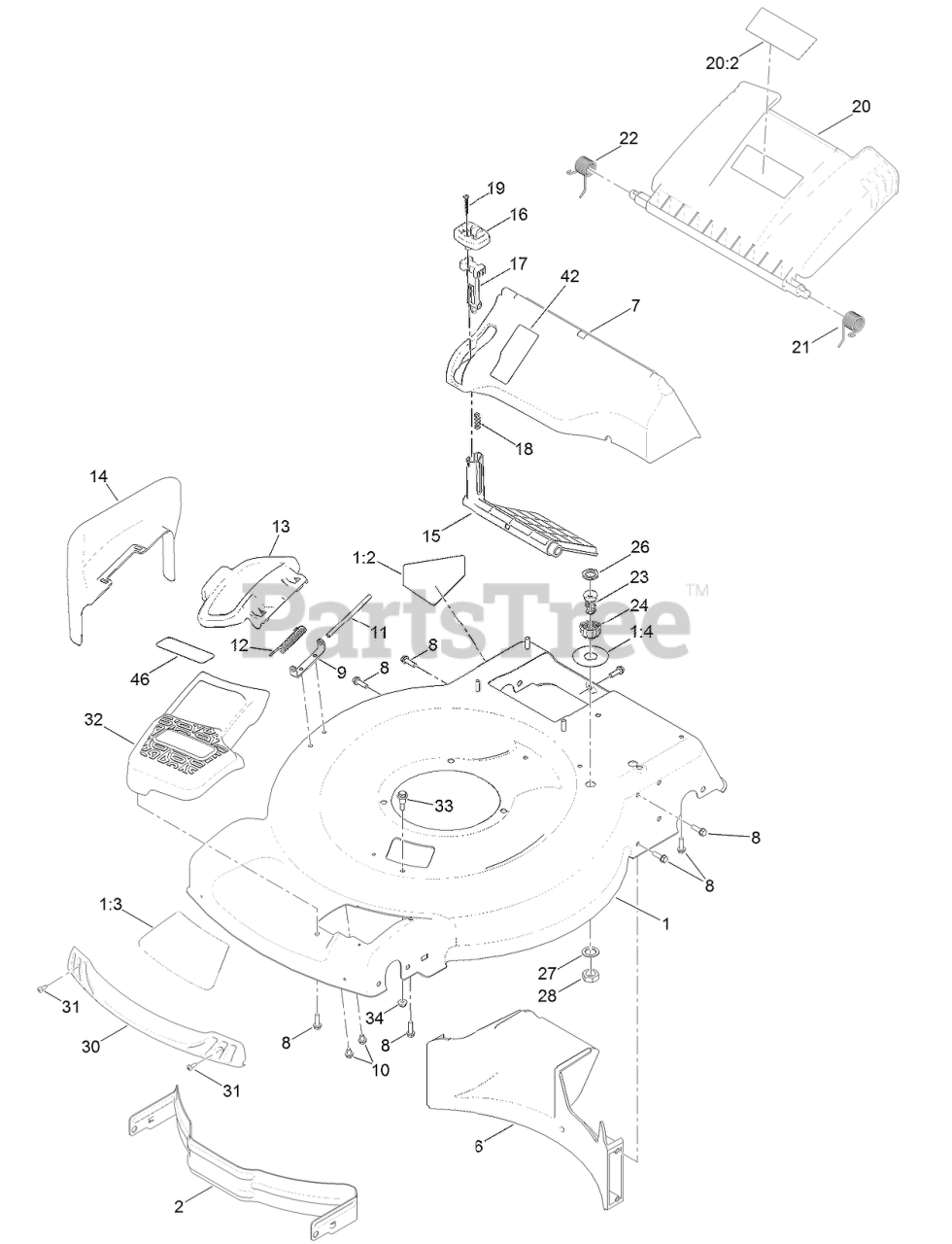

20353 - Toro 22" Recycler Walk-Behind Mower (SN: 400000000 - 402099999) > Parts Diagrams (6) > HOUSING AND REAR DEFLECTOR ASSEMBLY

  • Title
131-4579

1

HOUSING ASM

Part# 131-4579

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $154.76

94-8072

1:2

DECAL-DANGER

Part# 94-8072

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.69

131-4526

1:3

DECAL-DECK

Part# 131-4526

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.70

112-8867

1:4

DECAL-PORT, WASHOUT

Part# 112-8867

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.45

114-7963-01

2

BAFFLE-FRONT

Part# 114-7963-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.94

114-7961

6

BAFFLE-REAR

Part# 114-7961

OEM Warranty Repair Part for Toro

Not available

132-4501

7

CHUTE-RECYCLE

Part# 132-4501

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.21

46-8091

8

SCREW-HWH

Part# 46-8091

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.64

112-6416

9

BRACKET-COVER

Part# 112-6416

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.24

99-8445

10

SCREW-HWH

Part# 99-8445

OEM Warranty Repair Part for Toro

Not available

99-5291

11

ROD-COVER

Part# 99-5291 (Superseded to 136-8672)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.04

99-5293

12

SPRING-TORSION

Part# 99-5293

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

115-8449

13

DEFLECTOR-SIDE

Part# 115-8449

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.36

115-8447

14

CHUTE-DISCHARGE, SIDE

Part# 115-8447

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.55

114-7960

15

DEFLECTOR-RECYCLE

Part# 114-7960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.62

114-7958

16

KNOB-RECYCLE

Part# 114-7958

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.44

114-7959

17

LATCH-RECYCLE

Part# 114-7959

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.46

117-1031

18

SPRING-COMPRESSION

Part# 117-1031

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.93

32104-120

19

SCREW-PPH

Part# 32104-120

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.10

121-5776

20

REAR DOOR ASM

Part# 121-5776 (Superseded to 137-9139)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.14

131-4514

20:2

DECAL-WARNING

Part# 131-4514

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.24

115-2859

21

SPRING-TORSION

Part# 115-2859

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.40

114-7924

22

SPRING-TORSION

Part# 114-7924

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

112-6400

23

PORT-WASHOUT

Part# 112-6400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.13

112-6401

24

COUPLING-HOSE, WASHOUT PORT

Part# 112-6401

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.64

112-6438

26

WASHER-SEAL, WASHOUT PORT

Part# 112-6438

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

3254-5

27

WASHER-TOOTH, INTERNAL

Part# 3254-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

3218-6

28

NUT-JAM

Part# 3218-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.80

114-7987

30

BUMPER

Part# 114-7987

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.25

105-6849

31

SCREW-FORMING, THREAD

Part# 105-6849

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

130-6708

32

COVER-BELT, FRONT

Part# 130-6708

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.55

104-0858

33

BOLT-SHOULDER

Part# 104-0858

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.40

3296-16

34

NUT-LOCK, NI

Part# 3296-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

125-5026

42

DECAL

Part# 125-5026

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.24

131-4527

46

DECAL-COVER

Part# 131-4527

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.34
